The Nanbo C120/C120P is a compact, highly maneuverable, fully automatic ride-on sweeper that integrates sweeping and vacuuming functions. Equipped with a powerful vacuum system, it prevents fine dust from becoming airborne again and easily handles debris such as leaves, gravel, cigarette butts, paper scraps, wood chips, and metal filings.
Suitable applications include corporate campuses, factory workshops, large warehouses, educational institutions, parks, public squares, villa complex roadways, and underground parking garages.
The Nanbo C120/C120P is a compact, highly maneuverable, fully automatic ride-on sweeper that integrates sweeping and vacuuming functions. Equipped with a powerful vacuum system, it prevents fine dust from becoming airborne again and easily handles debris such as leaves, gravel, cigarette butts, paper scraps, wood chips, and metal filings.
Suitable applications include corporate campuses, factory workshops, large warehouses, educational institutions, parks, public squares, villa complex roadways, and underground parking garages.

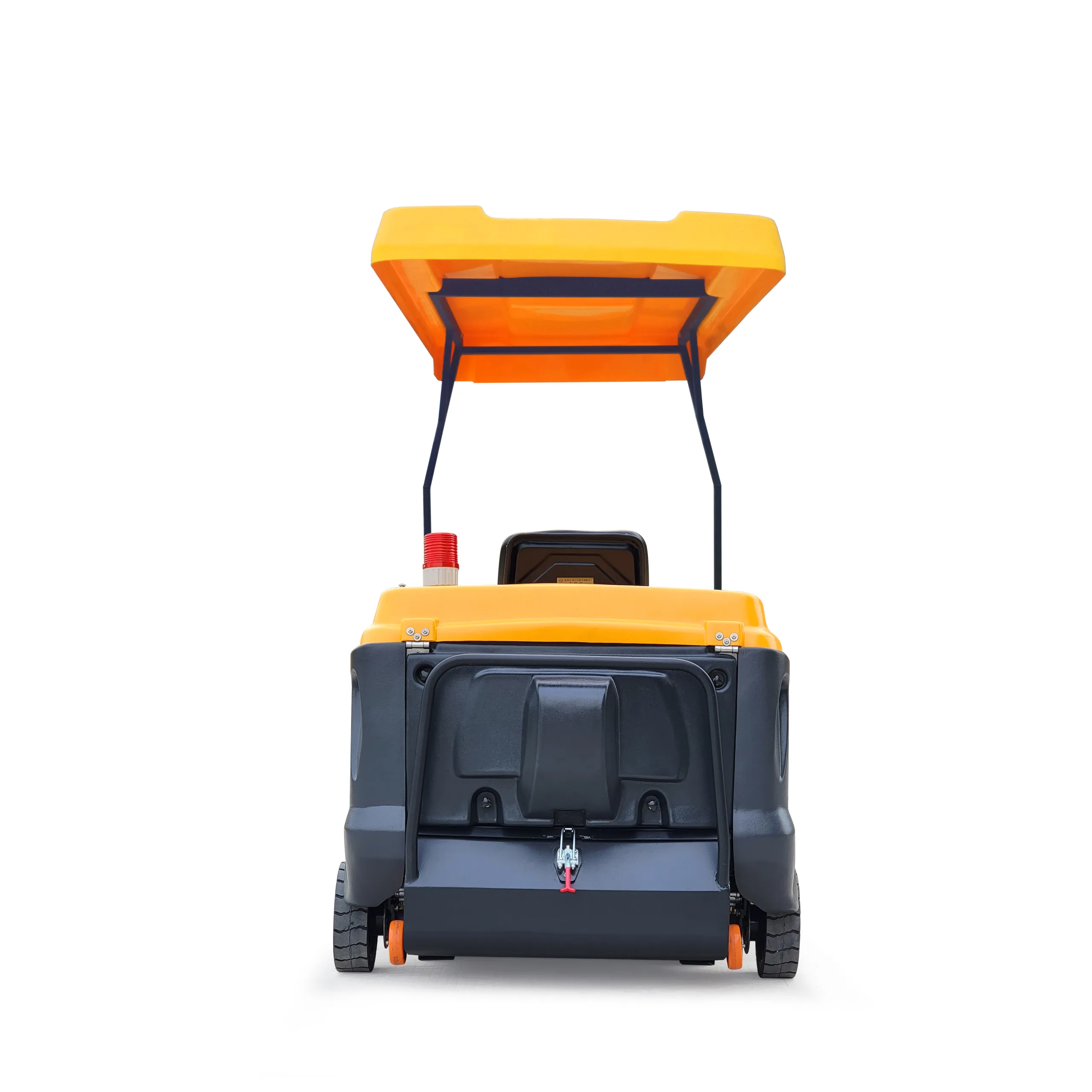

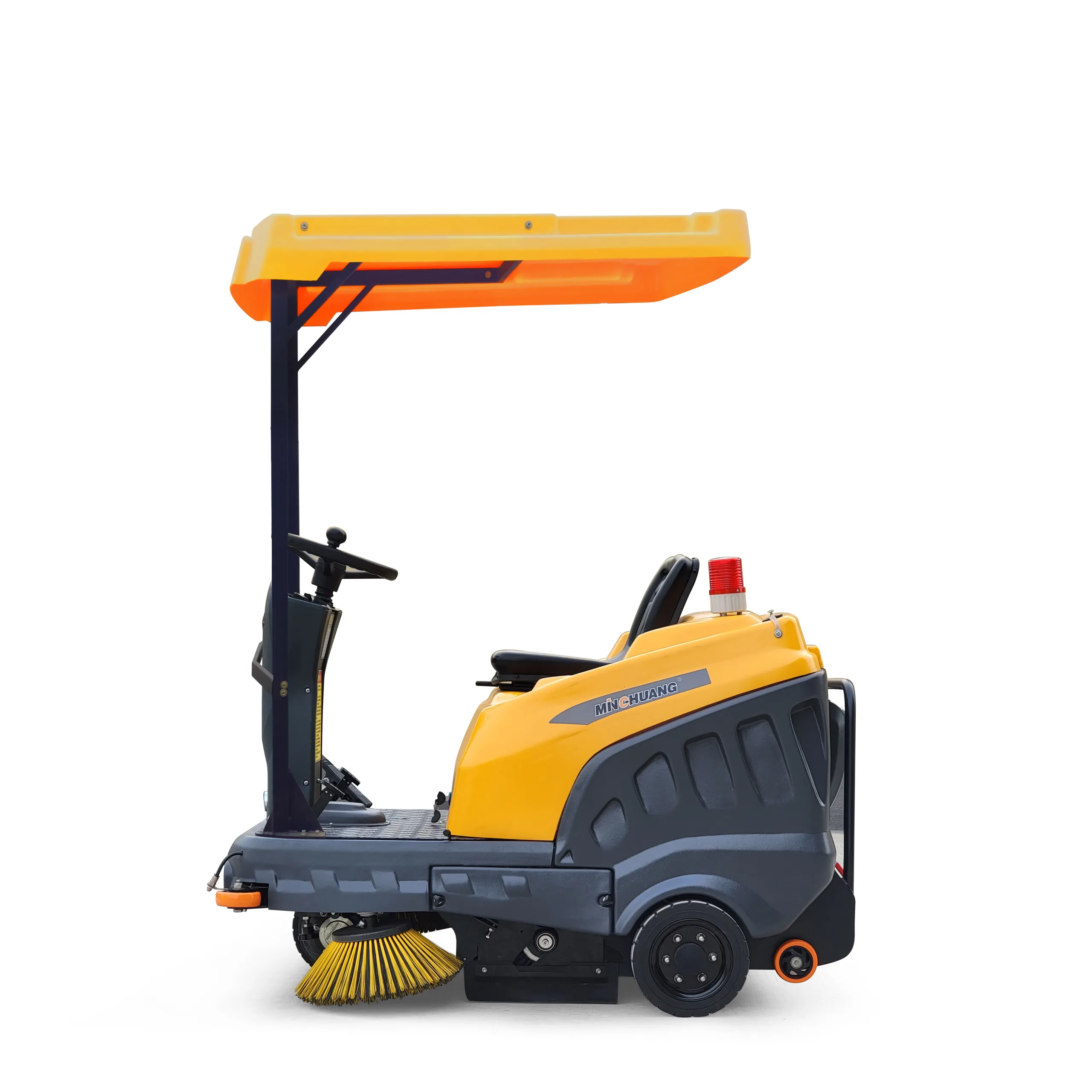

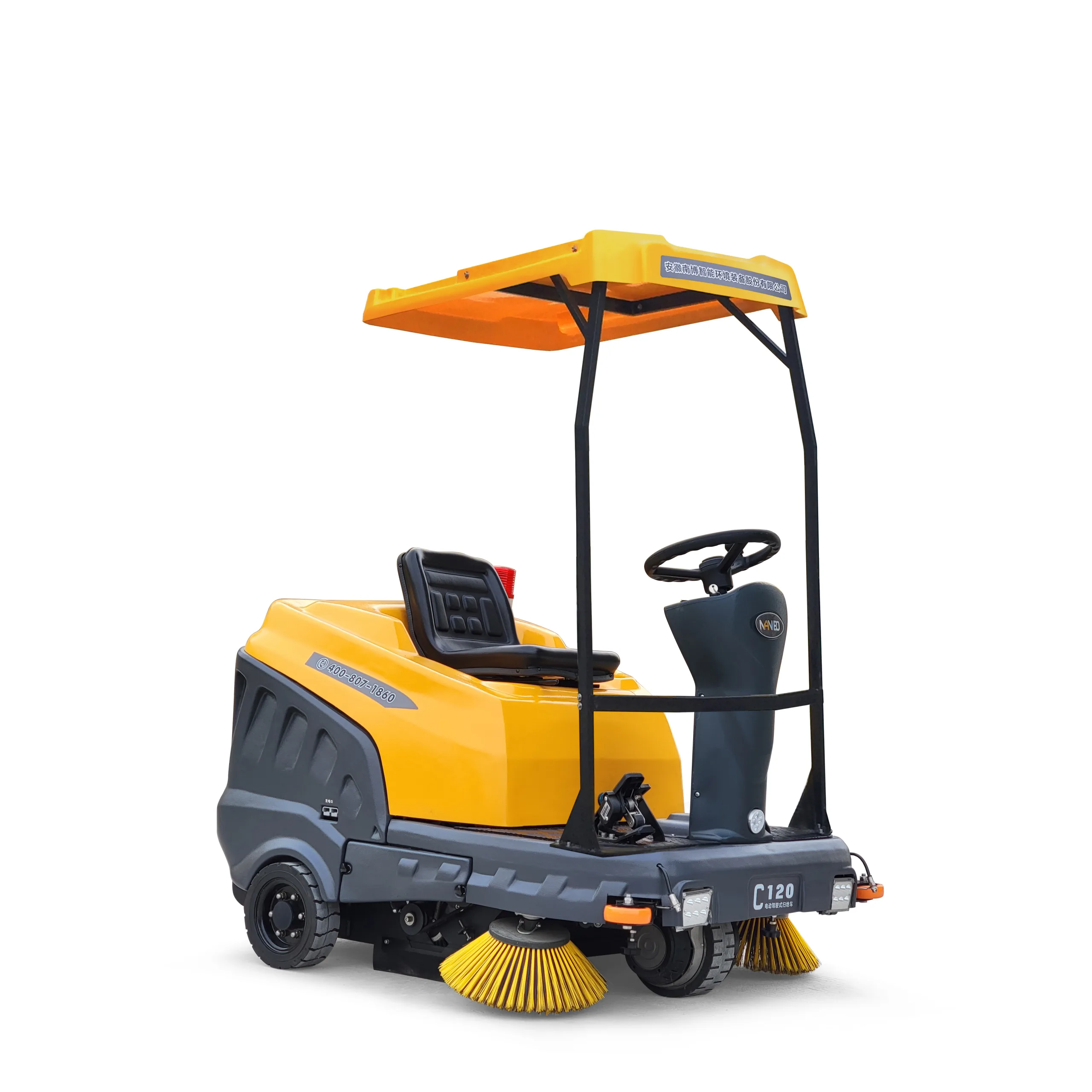

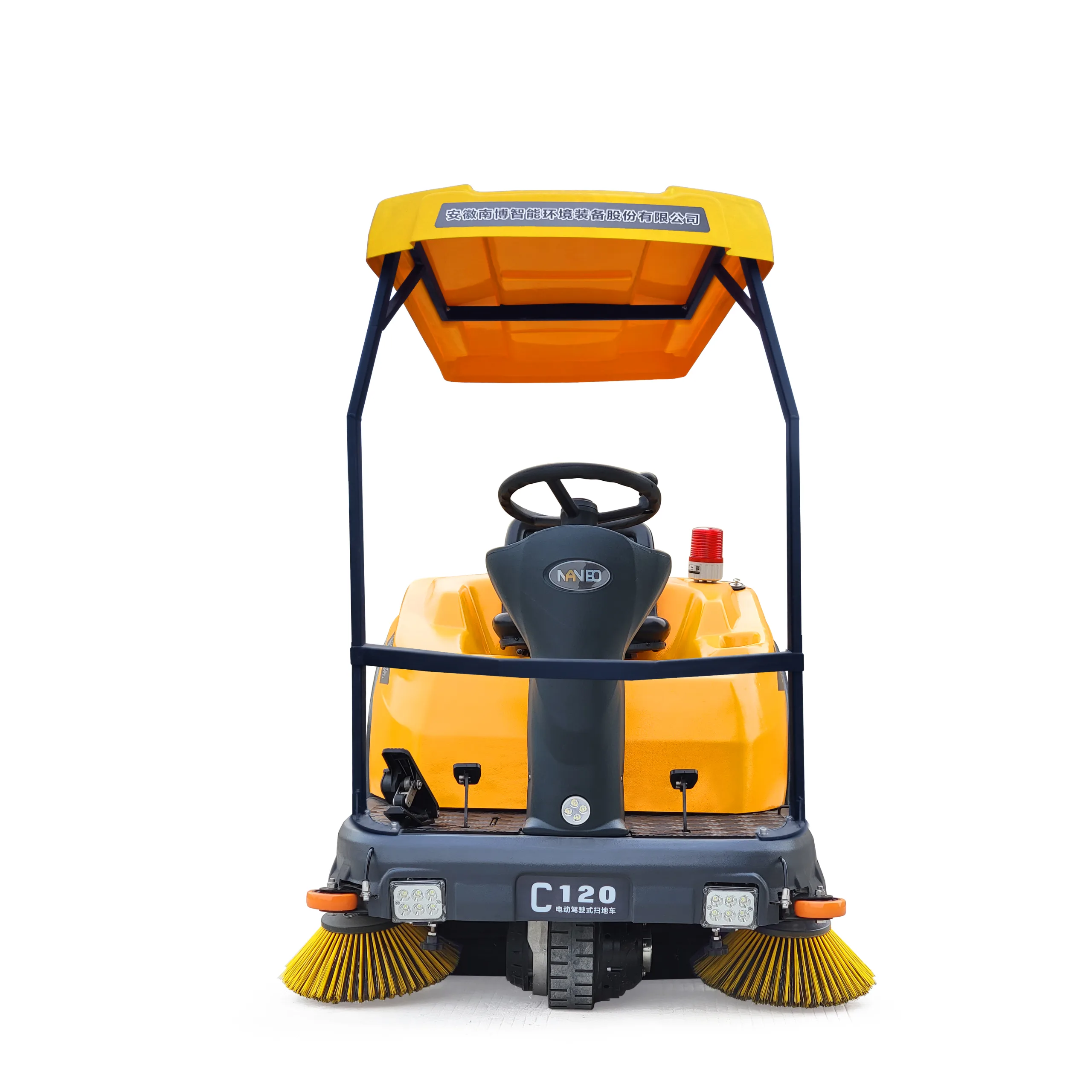

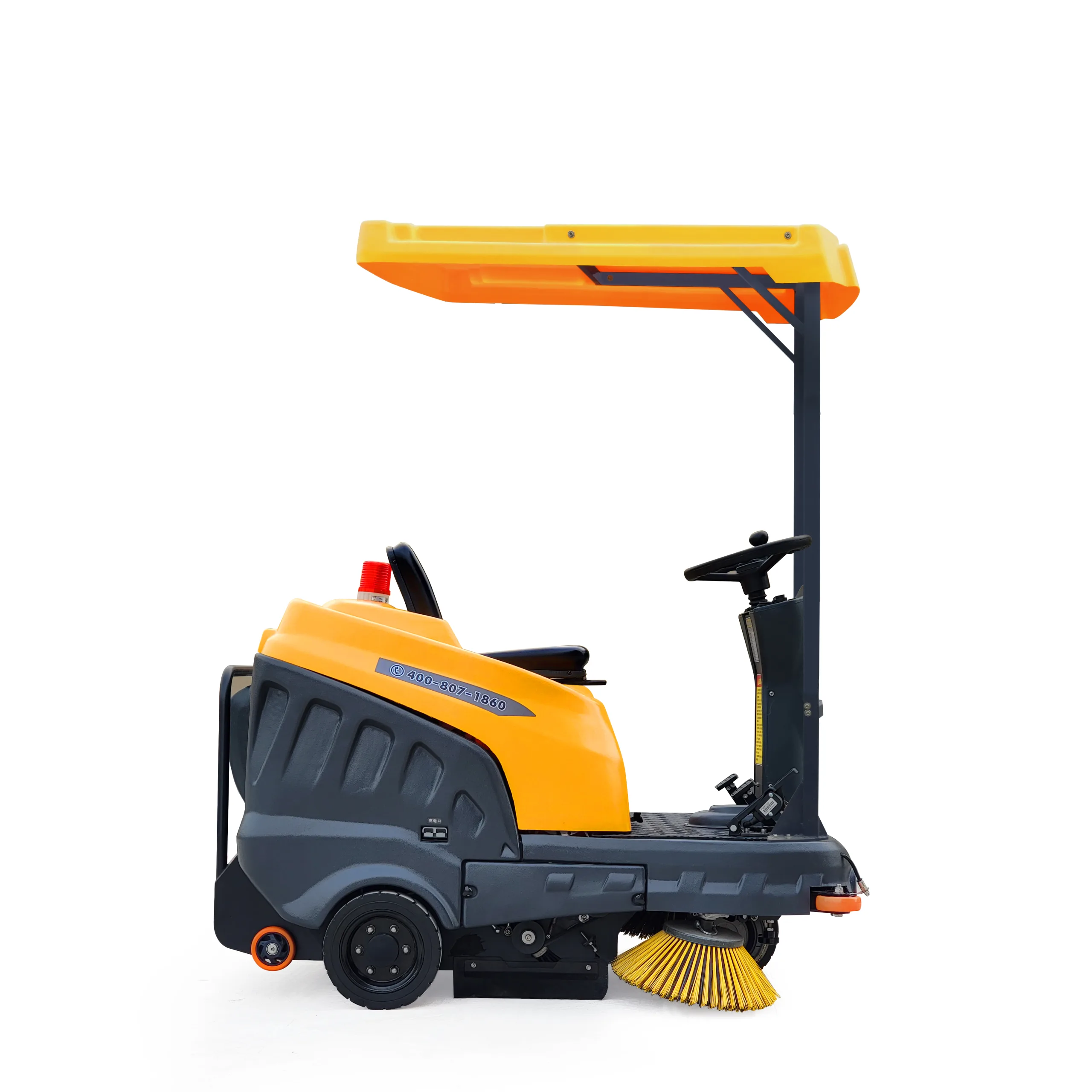

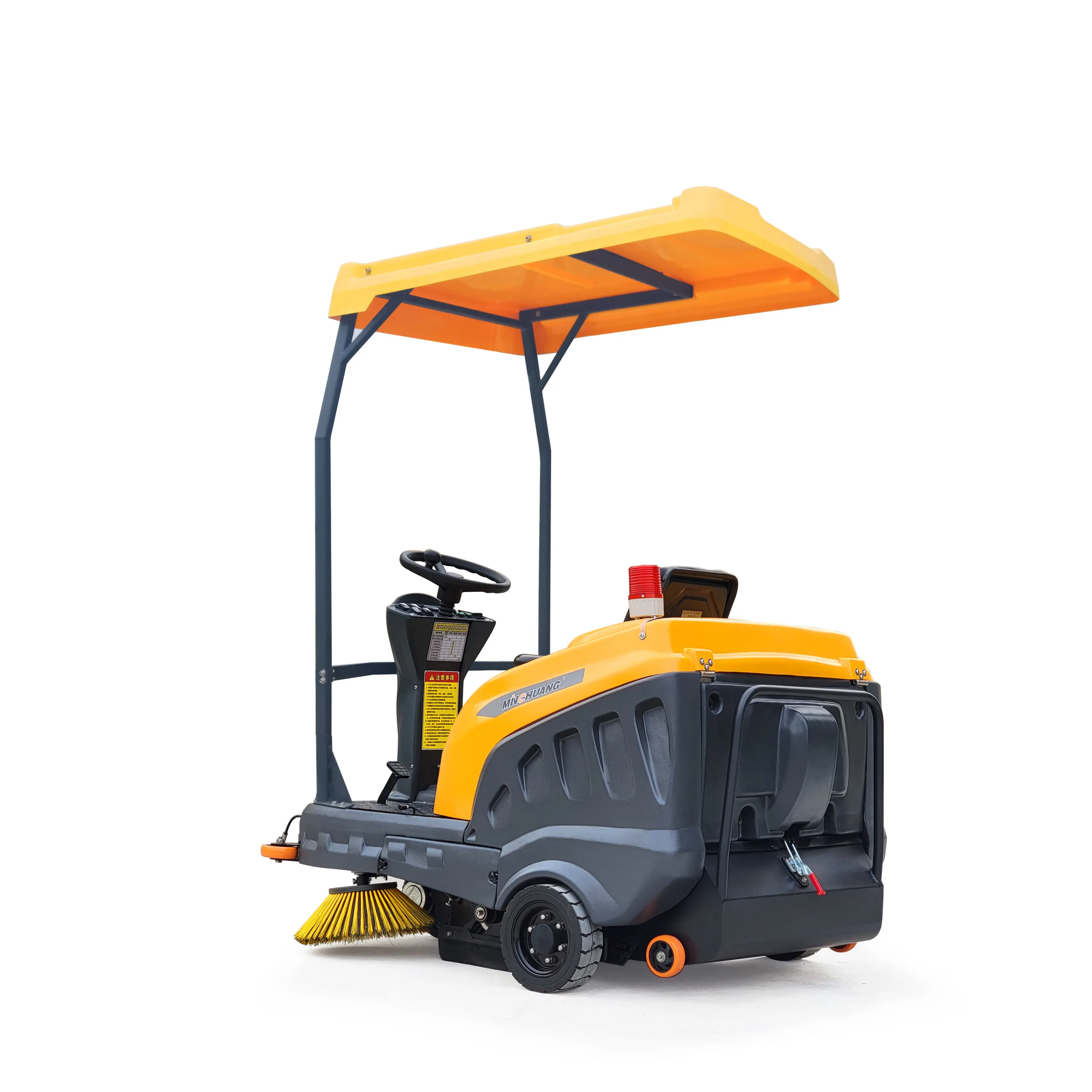

Key Features of the C120P Ride-on Sweeper (with Canopy)
Adjustable Operator Seat
The ergonomic seat can be adjusted forward and backward to help operators find a comfortable driving position.
Hydraulic Disc Brakes
The hydraulic disc brake system provides responsive braking control during operation.
Large Rotomolded Water Tank
The rotomolded water tank supports longer spray operation and reduces the need for frequent refilling.
Rotary Filter Shaker
The rotary filter shaker helps remove accumulated dust from the filter
Parameter
Specification
C120
C120P
Maximum Sweeping Productivity
7,000 m²/h
7,000 m²/h
Maximum Sweeping Width
1,300 mm
1,300 mm
Maximum Travel Speed
7 km/h
7 km/h
Operating Time
4–5 h
4–5 h
Water Tank Capacity
50 L
50 L
Debris Hopper Capacity
90 L
90 L
Power Supply
36 V
36 V
Number of Side Brushes
2
2
Main and Side Brush Lift
Automatic
Automatic
Drive Type
Front-wheel drive
Front-wheel drive
Braking System
Disc brake and parking brake
Disc brake and parking brake
Turning Radius
900 mm
900 mm
Gradeability
≤30%
≤30%
Machine Weight
300 kg
340 kg
Dimensions (L × W × H)
1,485 × 1,070 × 1,100 mm
1,485 × 1,070 × 1,800 mm
Technologies
Integrated Cleaning Systems
Practical cleaning technologies, reliable power systems and user-friendly controls configured for professional cleaning applications.
Modular Function Design
Sweeping, scrubbing, water recovery, dust suppression, high-pressure washing and waste collection — each tuned to the environment and surface.
Stability & Safety
Engineered for cleaning efficiency, operational stability, operator safety and convenient maintenance with accessible service components.
Pre-delivery Testing
Every machine undergoes functional inspection covering cleaning system, water supply, suction, electrics, driving and safety devices.
Custom & OEM/ODM
Optional configurations available for distributors and contractors — tailored to area, surface, waste type, working time and local requirements.
Anhui Nanbo Intelligent Environmental Equipment Co., Ltd. — founded in 2015, headquartered in Wuhu. We are a national High-Tech Enterprise with 80+ patents and ISO 9001 certification, focused on the R&D and manufacturing of floor scrubbers, floor sweepers, high-pressure washers and new-energy sanitation vehicles.
Three main factors to consider: cleaning area, floor material and dominant soil type. Hand-push scrubbers are typically used for areas under 3,000 m², while ride-on versions suit 5,000 m² and above. Sweepers handle dry dust and debris; scrubbers handle oil and water spills — many facilities run both for the best result.
Sweepers use dry technology (sweep + suction) to remove dust, chips and loose debris without water. Scrubbers use wet technology (spray + scrub + suction) with water and detergent to remove oil and liquid spills, leaving the floor dry immediately. They serve different purposes and are not substitutes.
Pricing varies significantly depending on model, configuration, battery type and quantity. As a source manufacturer, we offer competitive factory-direct pricing and can tailor packages to your project. Please contact us for a precise quotation based on your specific needs.
Lead-acid is the economical choice for single-shift (8-hour) operations. Lithium is recommended for double or triple shifts: it charges in 2–3 hours, lasts roughly 2,000 charge cycles and requires no maintenance over its lifetime.
