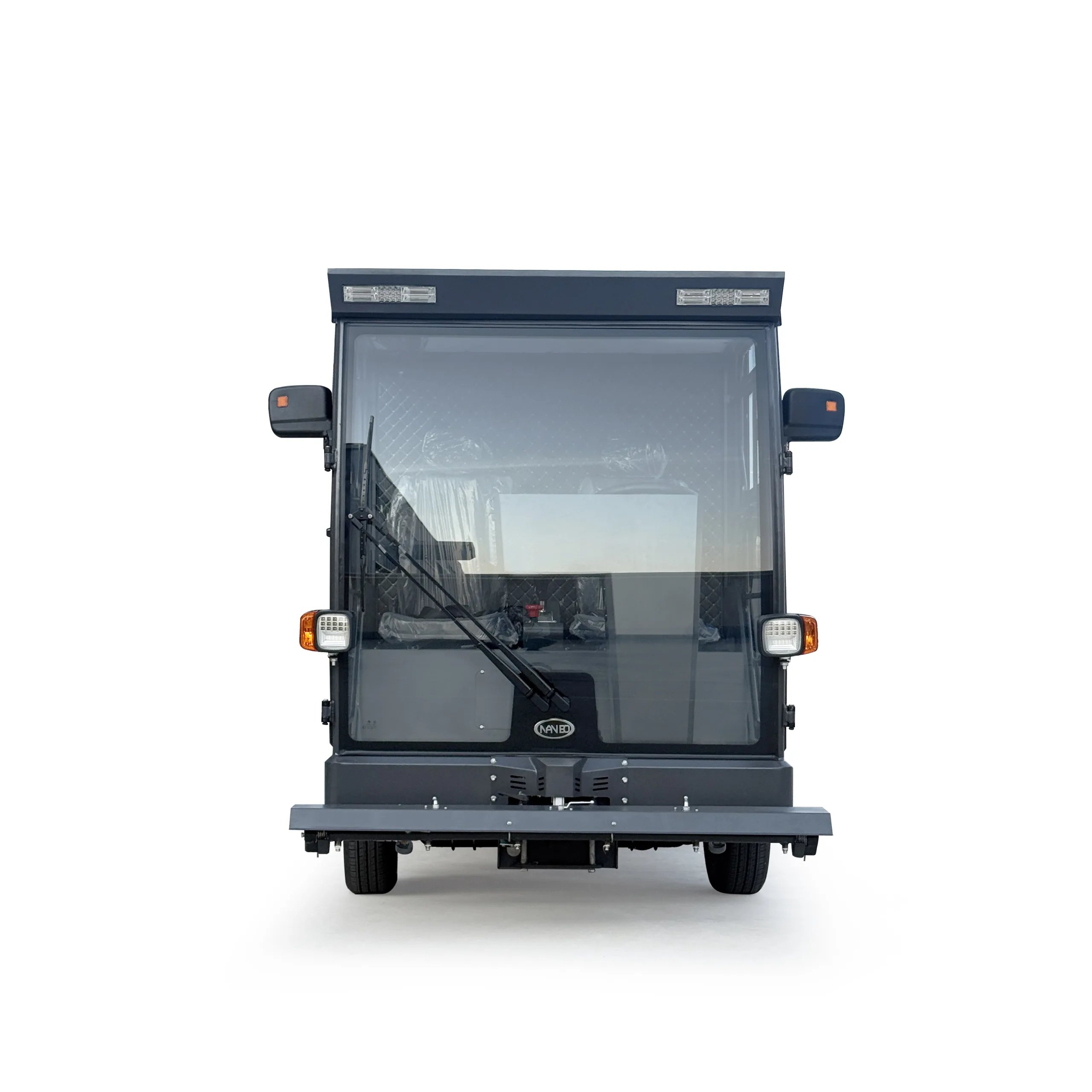

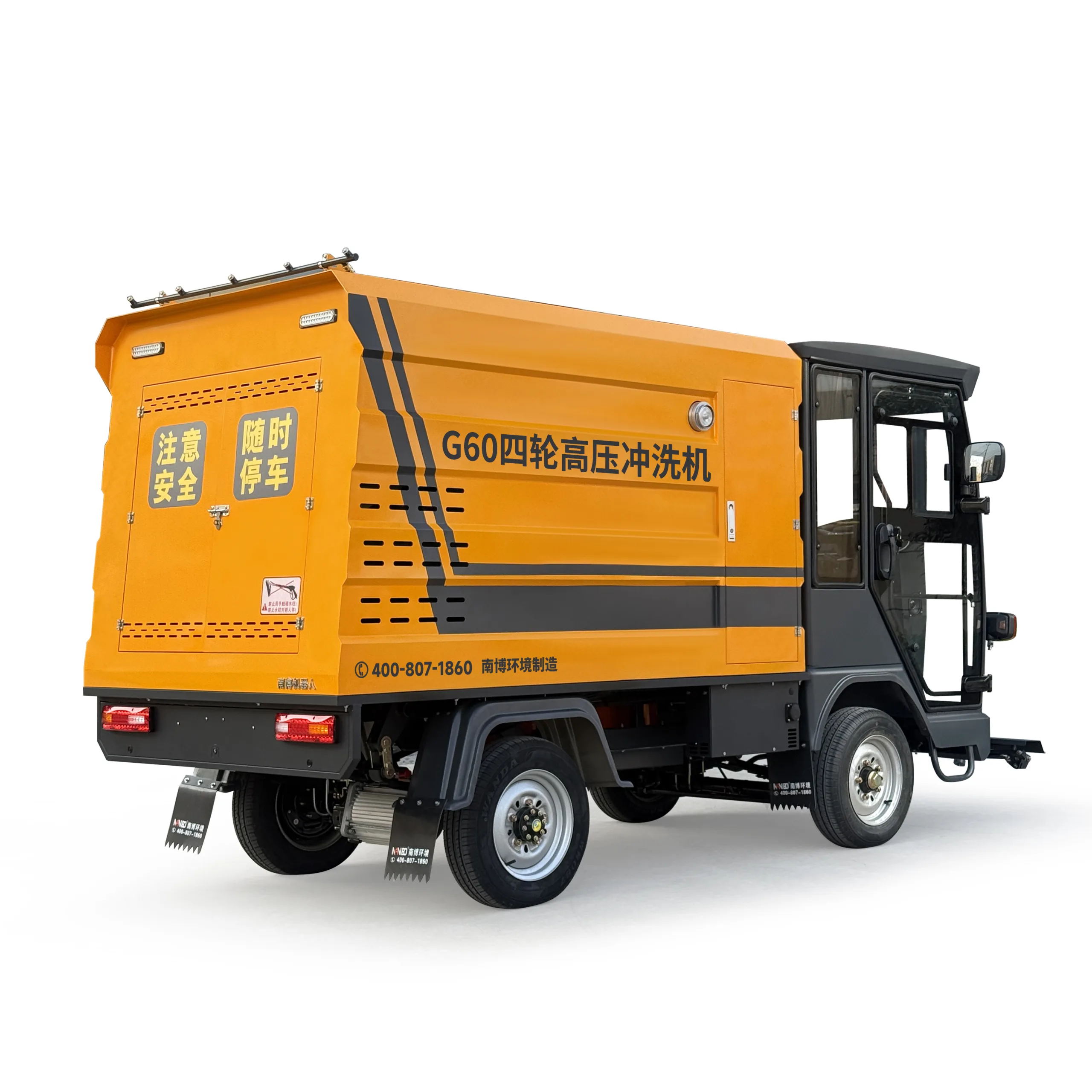

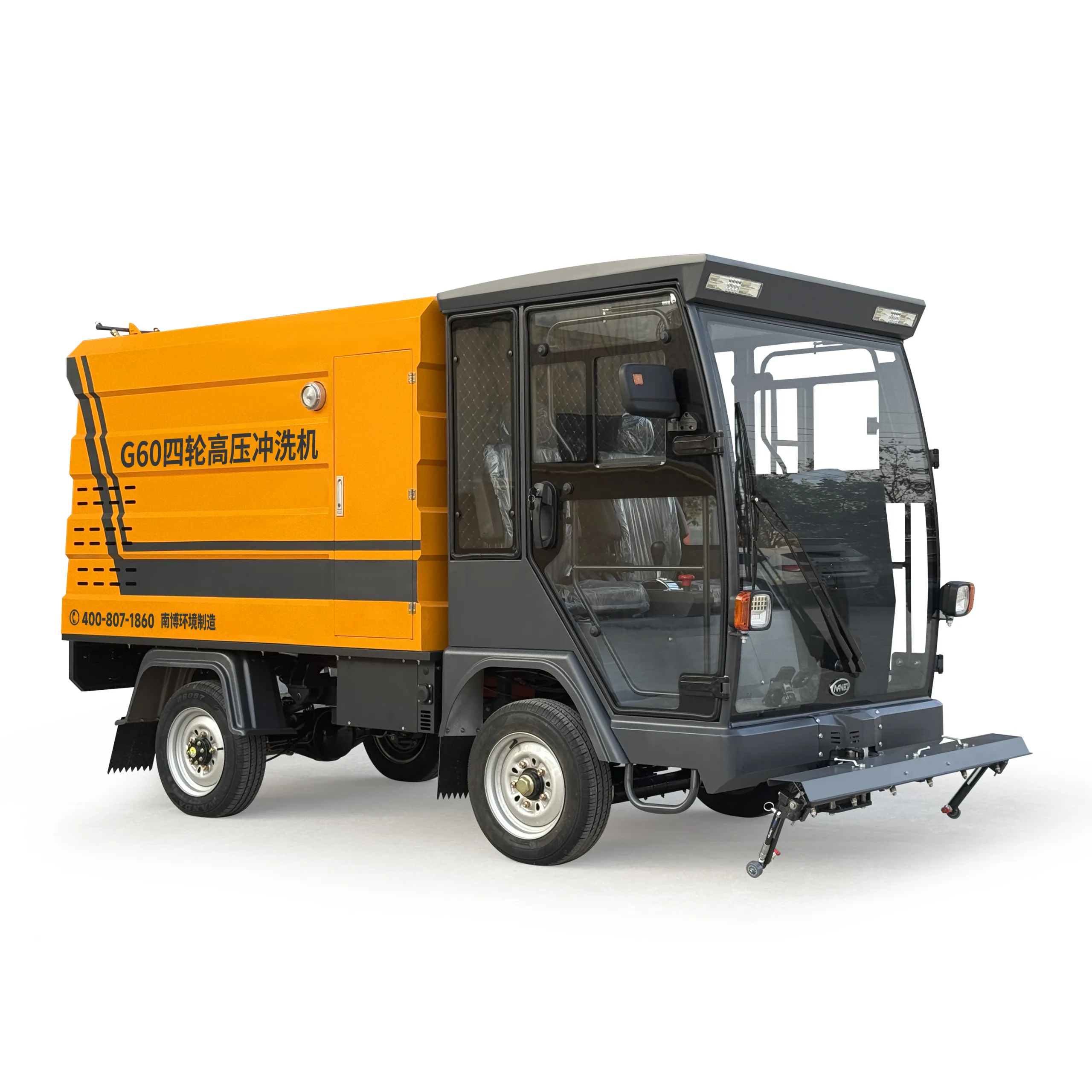

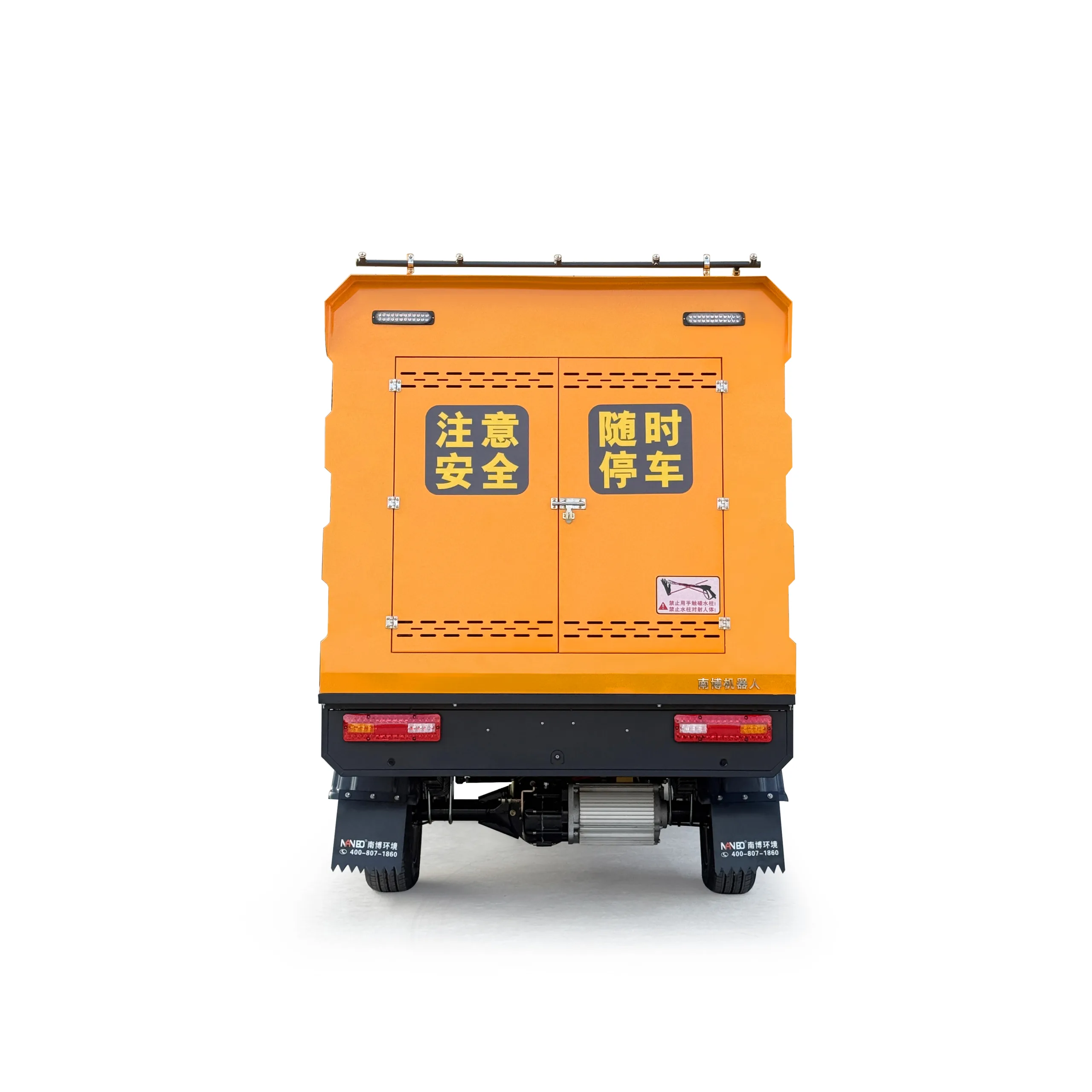

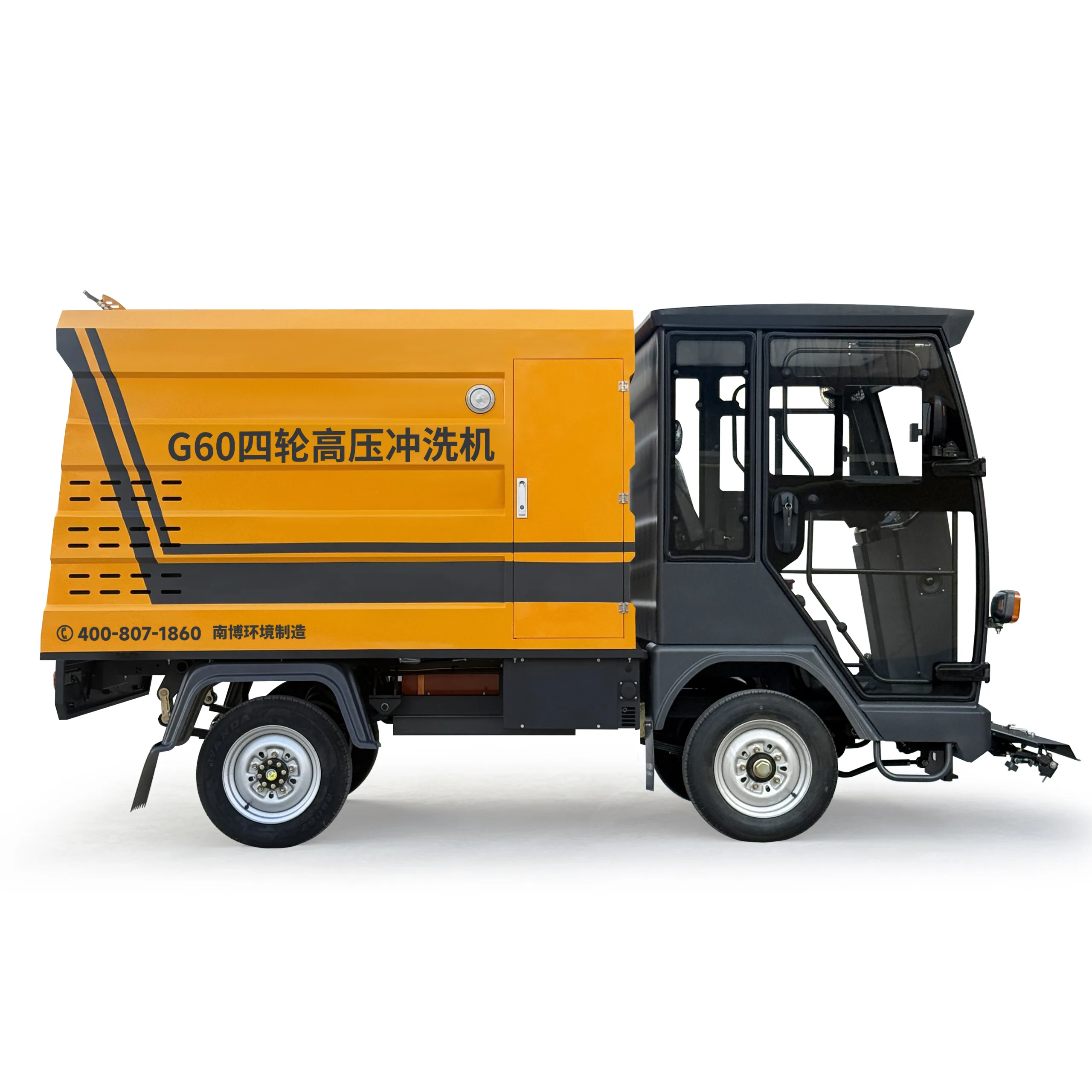

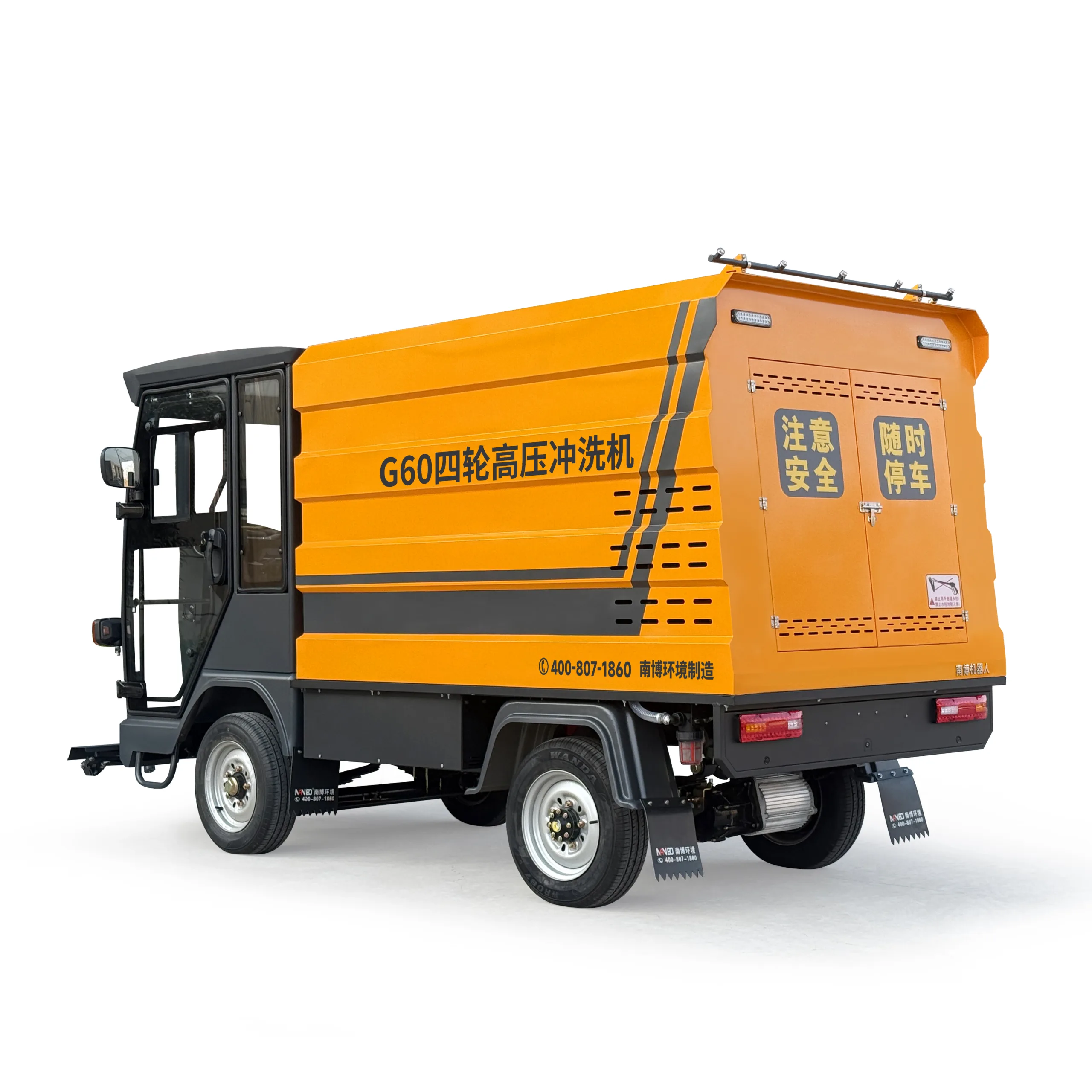

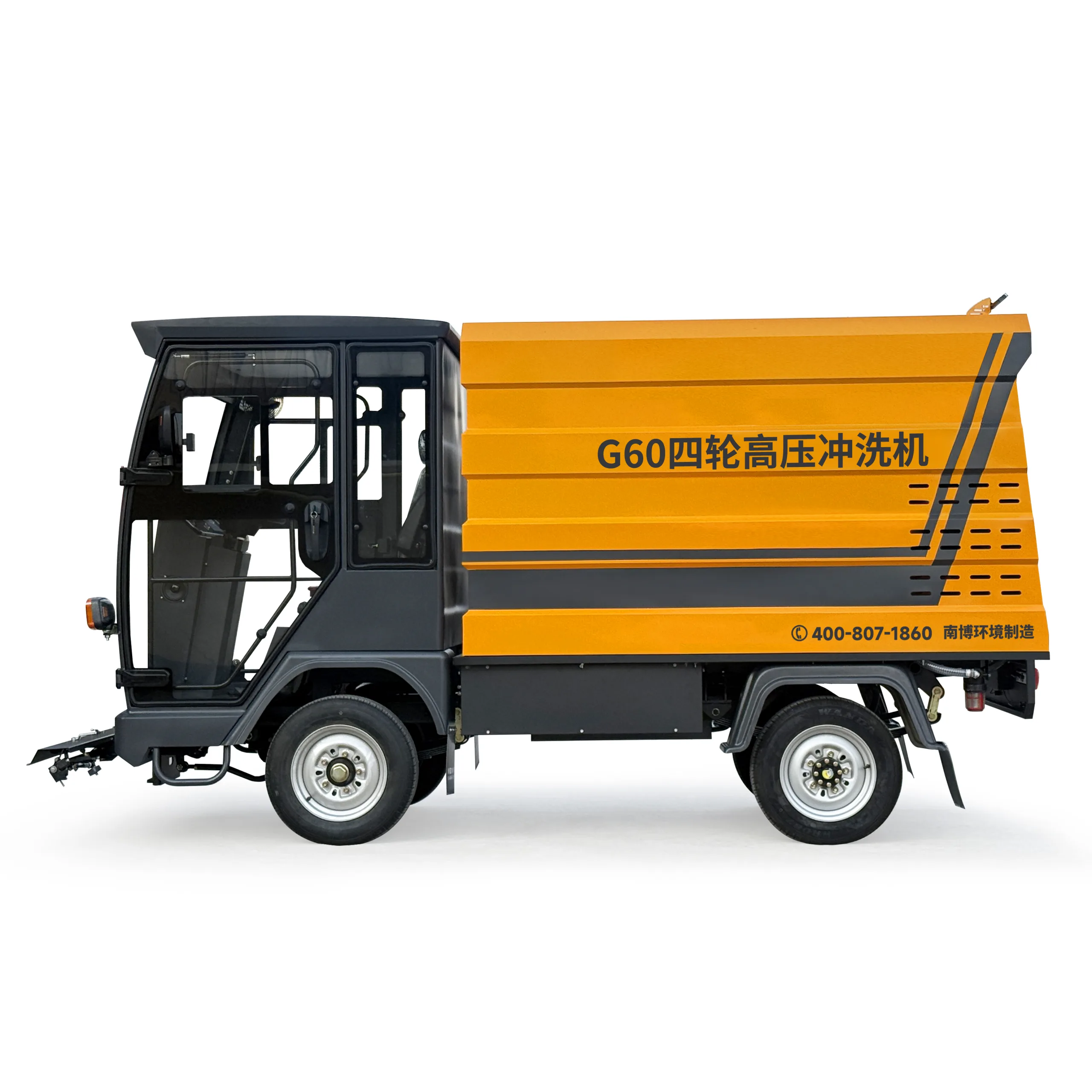

The Nanbo G60 four-wheel high-pressure washing vehicle is an all-electric piece of equipment designed for high-pressure surface washing and maintenance. Featuring a stylish and professional appearance, it offers versatile washing modes—including side spraying, front-row spraying, cross-spraying, a handheld spray gun, and rear dust suppression—enabling efficient cleaning of sidewalks, auxiliary lanes, curbs, and narrow backstreets. Built on a robust four-wheel chassis assembled using cold-riveting technology, the vehicle is highly durable and capable of navigating diverse and complex road surfaces.
Applications: Rapid washing and maintenance of sidewalks, auxiliary lanes, and curbs; removal of urban graffiti/flyers; cleaning of trash bins and waste receptacles, etc.
The Nanbo G60 four-wheel high-pressure washing vehicle is an all-electric piece of equipment designed for high-pressure surface washing and maintenance. Featuring a stylish and professional appearance, it offers versatile washing modes—including side spraying, front-row spraying, cross-spraying, a handheld spray gun, and rear dust suppression—enabling efficient cleaning of sidewalks, auxiliary lanes, curbs, and narrow backstreets. Built on a robust four-wheel chassis assembled using cold-riveting technology, the vehicle is highly durable and capable of navigating diverse and complex road surfaces.
Applications: Rapid washing and maintenance of sidewalks, auxiliary lanes, and curbs; removal of urban graffiti/flyers; cleaning of trash bins and waste receptacles, etc.
Key Features of the G60 Four-Wheel High-Pressure Washer
Long-Range Electric Operation
The fully electric vehicle supports optional 72 V maintenance-free lead-acid or lithium battery packs, providing energy-efficient operation for municipal and facility-cleaning applications.
304 Stainless Steel Flushing System
The high-pressure flushing assembly is manufactured from 304 stainless steel for corrosion resistance and reliable performance in frequent water-spraying operations.
Imported High-Pressure Plunger Pump
The imported high-pressure plunger pump delivers stable water pressure with low operating noise. Its serviceable design also simplifies routine maintenance.
Panoramic Aluminum Alloy Cab
The lightweight aluminum alloy cab provides a wide field of vision. An independently adjustable seat improves operator comfort during extended working periods.
Parameter
Specification
Value
Maximum travel speed
30 km/h
Maximum washing pressure
≥20 MPa (approximately 200 bar)
High-pressure spray range
≥10 m
Wheelbase
1,700 mm
Water tank capacity
1,000 L
Gradeability
≤20%
Drive system
Rear axle drive
Braking system
Hydraulic disc brakes with vacuum assistance
High-pressure pump power
4,000 W
Power supply
72 V lithium battery
Maximum gross vehicle weight
1,450 kg
Rated load capacity
1,000 kg
Dimensions (L × W × H)
3,500 × 1,350 × 2,250 mm
Technologies
Integrated Cleaning Systems
Practical cleaning technologies, reliable power systems and user-friendly controls configured for professional cleaning applications.
Modular Function Design
Sweeping, scrubbing, water recovery, dust suppression, high-pressure washing and waste collection — each tuned to the environment and surface.
Stability & Safety
Engineered for cleaning efficiency, operational stability, operator safety and convenient maintenance with accessible service components.
Pre-delivery Testing
Every machine undergoes functional inspection covering cleaning system, water supply, suction, electrics, driving and safety devices.
Custom & OEM/ODM
Optional configurations available for distributors and contractors — tailored to area, surface, waste type, working time and local requirements.
APPLICABLE GROUND
APPLICATION
Frequently Asked Questions (FAQ)
Check the answers to the most frequently asked questions to learn everything about our
machines.
Anhui Nanbo Intelligent Environmental Equipment Co., Ltd. — founded in 2015, headquartered in Wuhu. We are a national High-Tech Enterprise with 80+ patents and ISO 9001 certification, focused on the R&D and manufacturing of floor scrubbers, floor sweepers, high-pressure washers and new-energy sanitation vehicles.
Three main factors to consider: cleaning area, floor material and dominant soil type. Hand-push scrubbers are typically used for areas under 3,000 m², while ride-on versions suit 5,000 m² and above. Sweepers handle dry dust and debris; scrubbers handle oil and water spills — many facilities run both for the best result.
Sweepers use dry technology (sweep + suction) to remove dust, chips and loose debris without water. Scrubbers use wet technology (spray + scrub + suction) with water and detergent to remove oil and liquid spills, leaving the floor dry immediately. They serve different purposes and are not substitutes.
Pricing varies significantly depending on model, configuration, battery type and quantity. As a source manufacturer, we offer competitive factory-direct pricing and can tailor packages to your project. Please contact us for a precise quotation based on your specific needs.
Lead-acid is the economical choice for single-shift (8-hour) operations. Lithium is recommended for double or triple shifts: it charges in 2–3 hours, lasts roughly 2,000 charge cycles and requires no maintenance over its lifetime.
