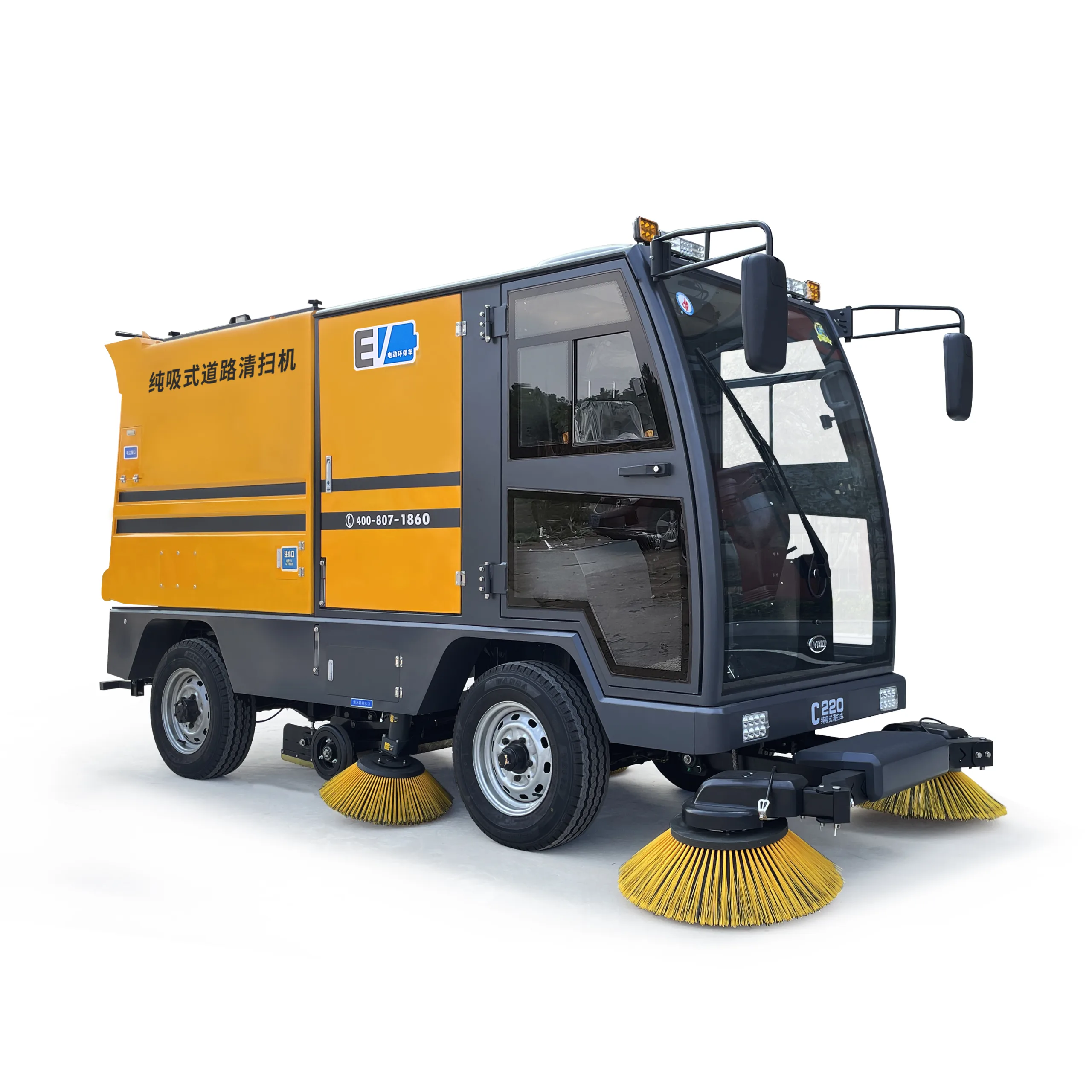

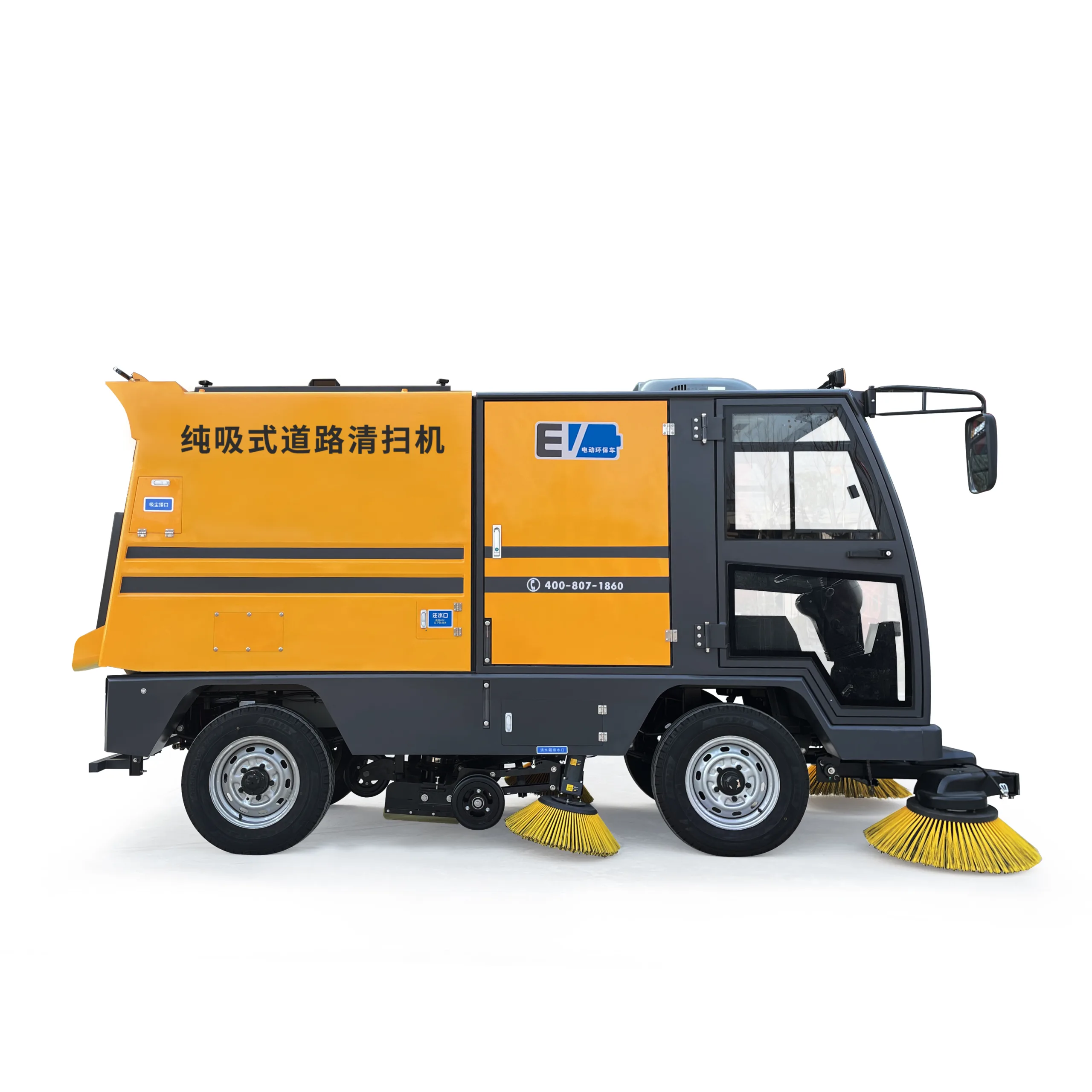

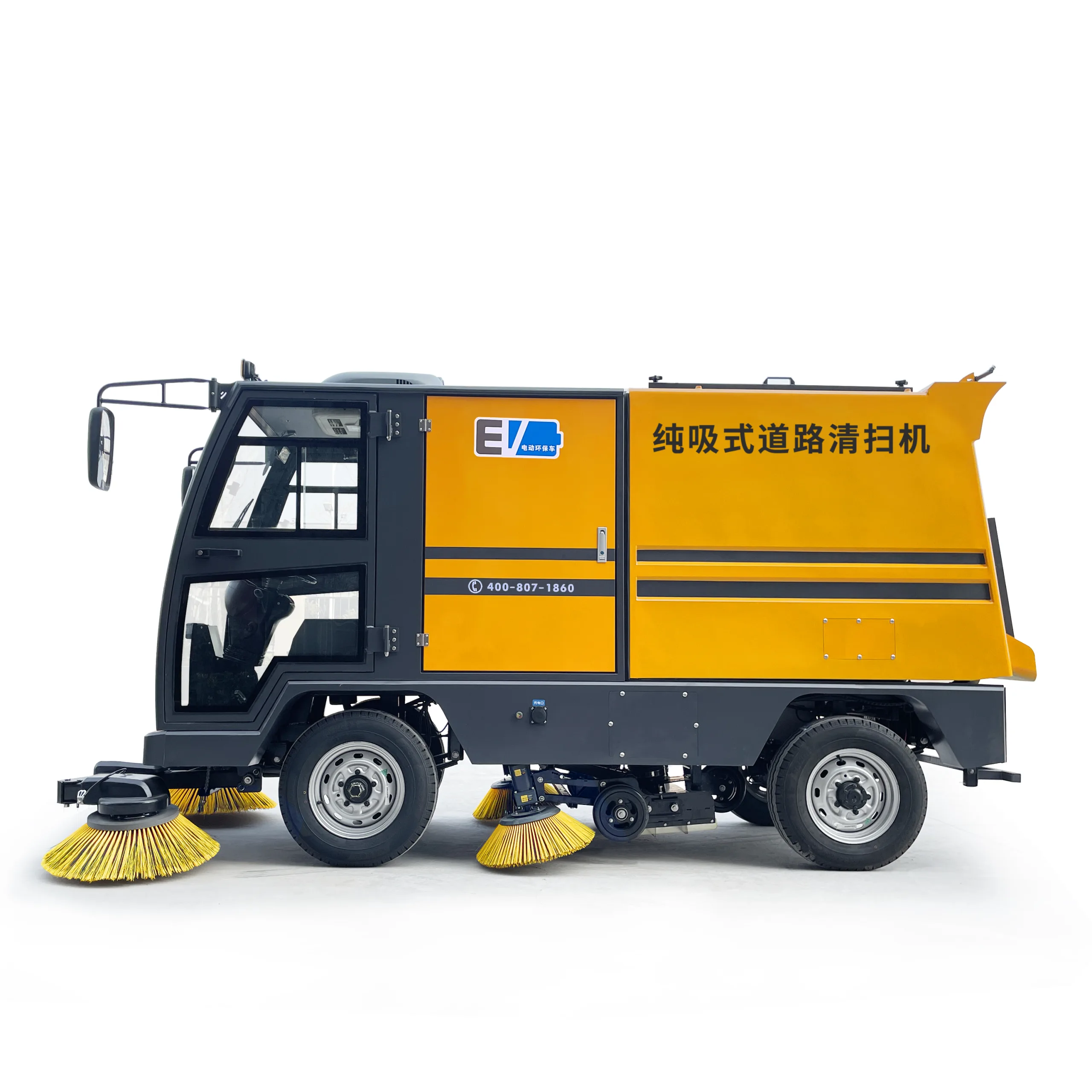

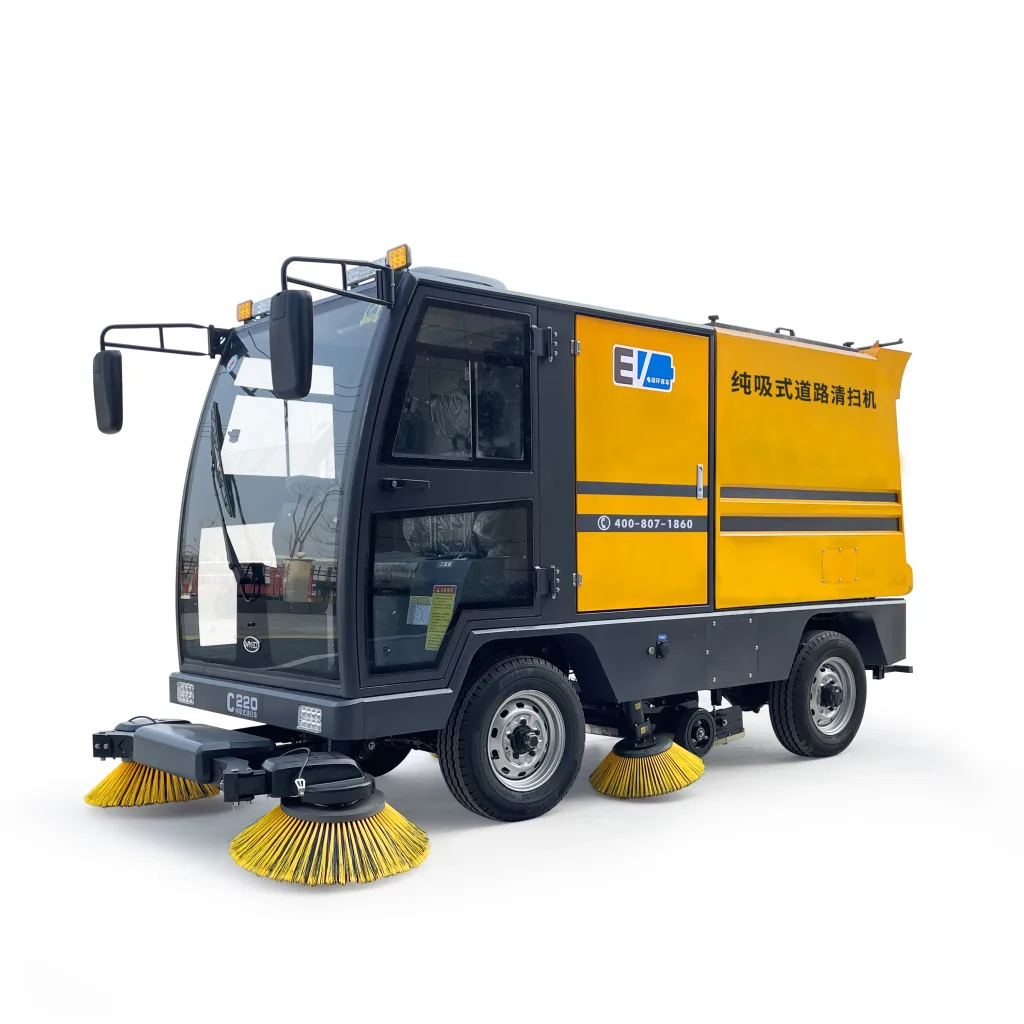

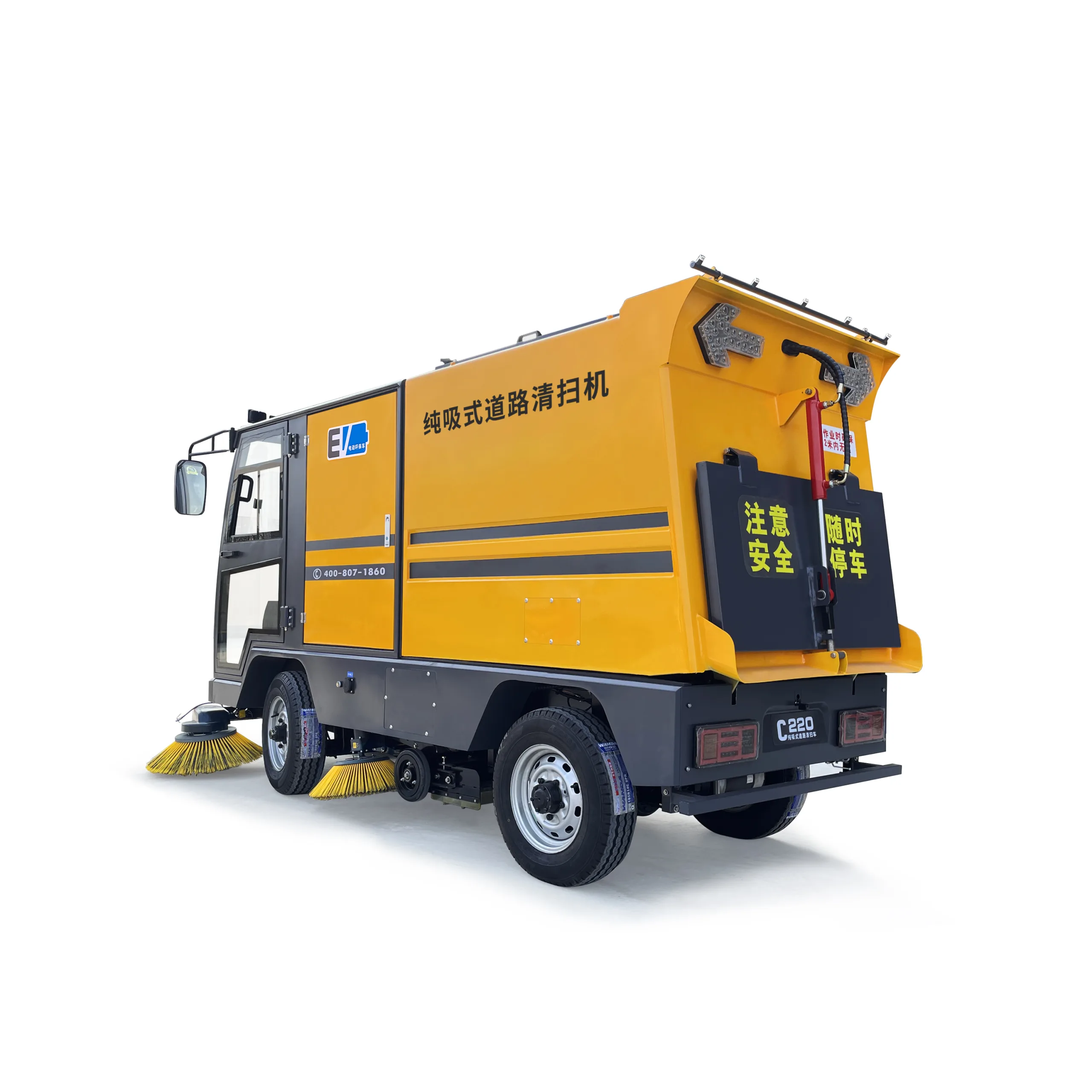

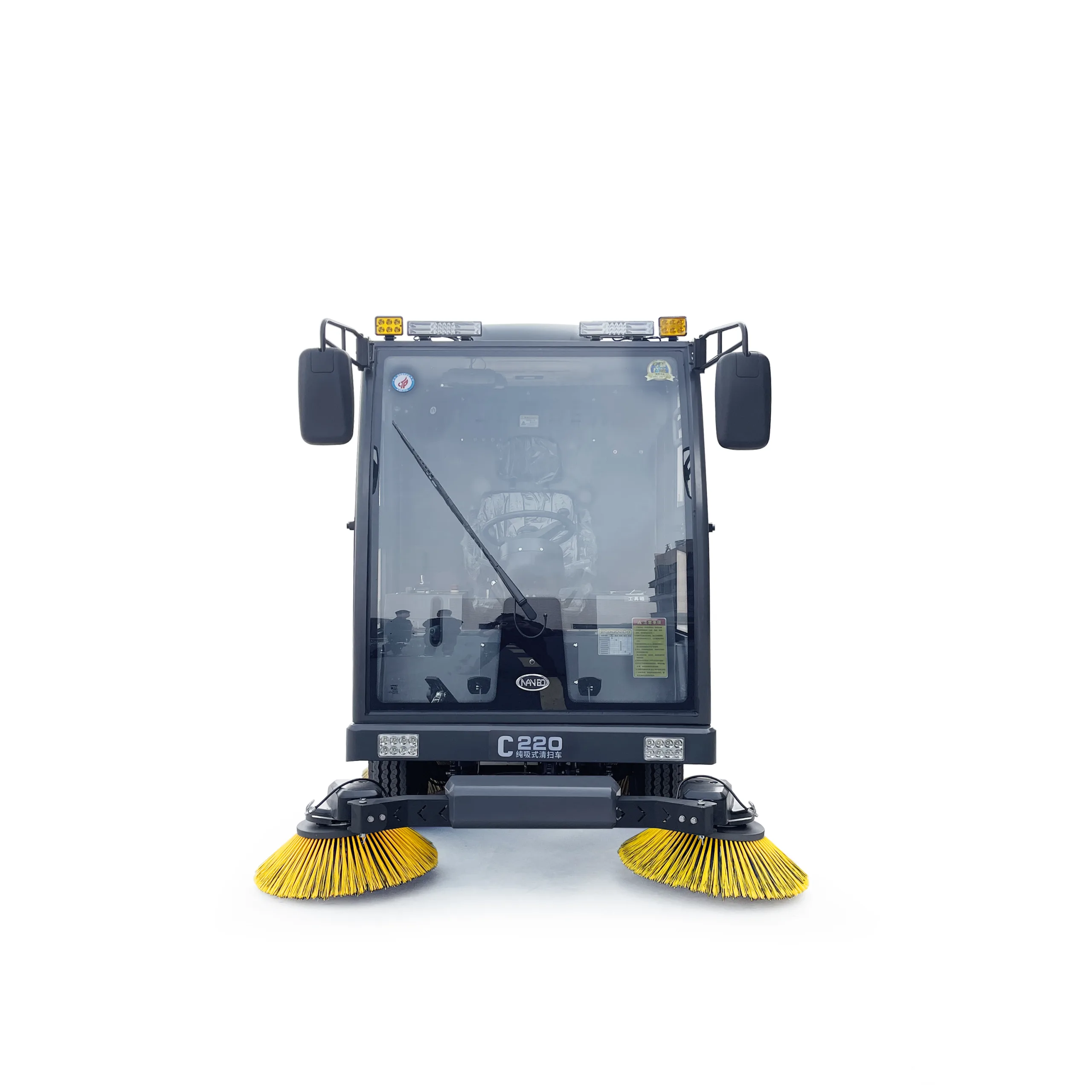

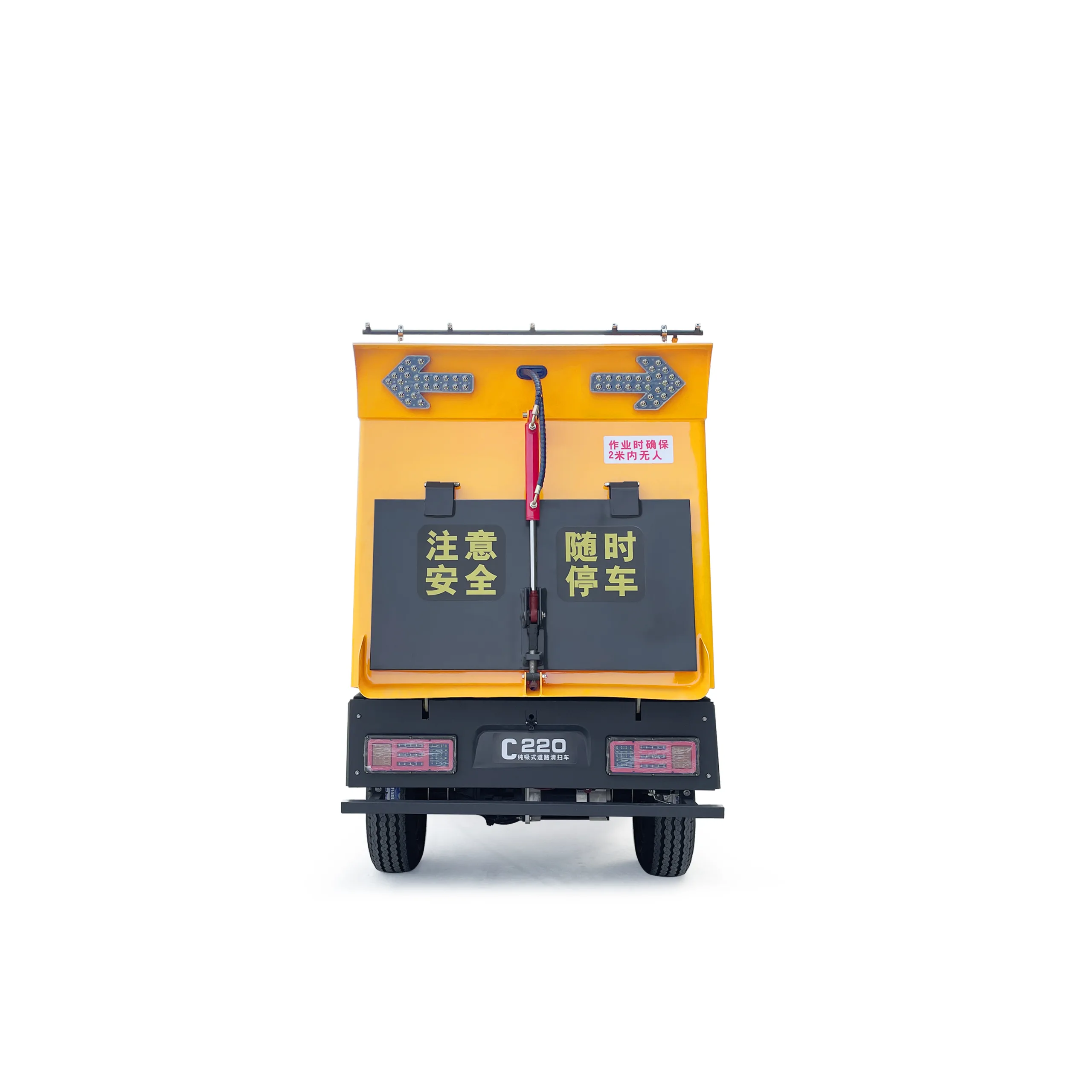

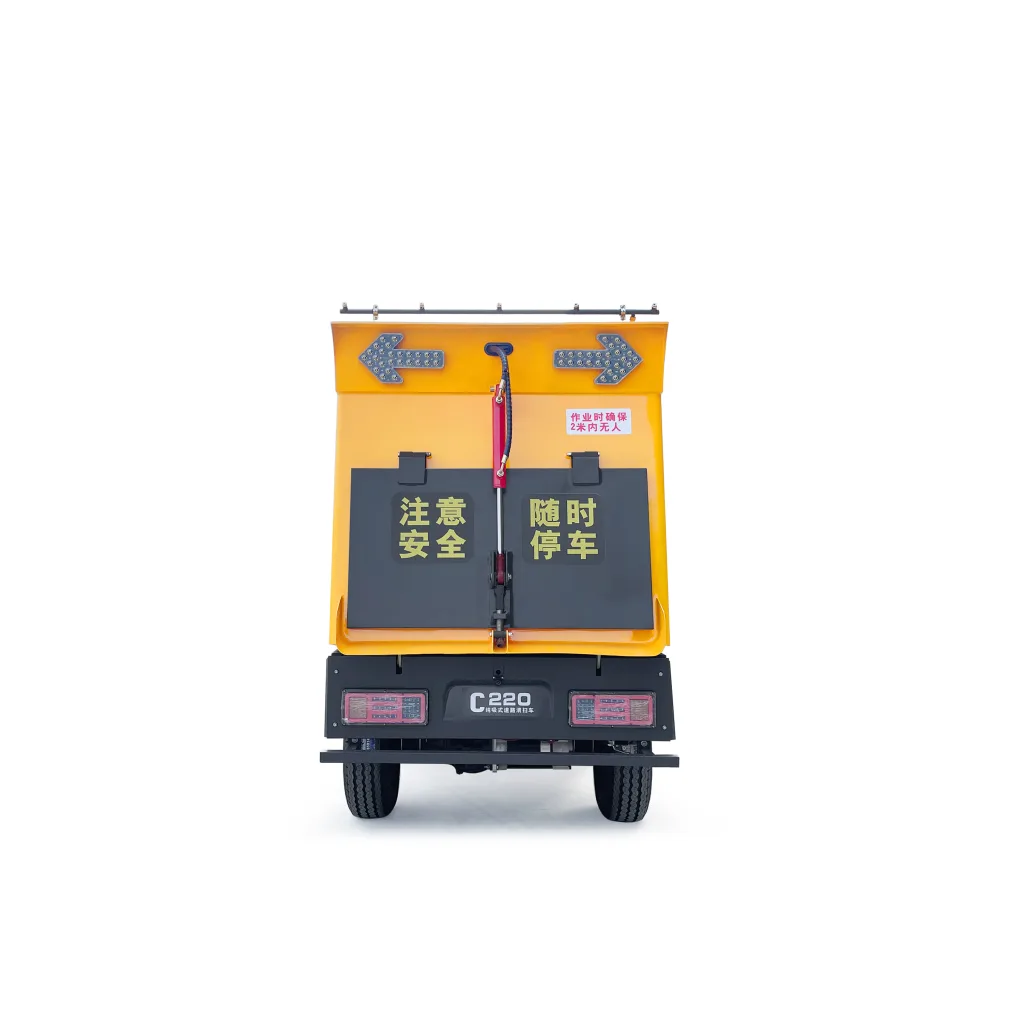

The Nanbo C220 is a pure-suction road sweeper that integrates sweeping and vacuuming functions. It features pure-suction debris collection and one-touch automated dumping, offering high cleaning efficiency, energy conservation, eco-friendliness, and excellent maneuverability. Equipped with a brushless AC motor and an integrated rear-axle differential drive, it utilizes a high-power suction motor paired with an extra-large filter screen to effectively remove stubborn stains, dust, leaves, gravel, plastic bags, and other road debris. With its high-capacity waste hopper, it is versatile enough for cleaning operations in various public spaces, including narrow streets and alleys, auxiliary roads, sidewalks, school campuses, and public squares.
The Nanbo C220 is a pure-suction road sweeper that integrates sweeping and vacuuming functions. It features pure-suction debris collection and one-touch automated dumping, offering high cleaning efficiency, energy conservation, eco-friendliness, and excellent maneuverability. Equipped with a brushless AC motor and an integrated rear-axle differential drive, it utilizes a high-power suction motor paired with an extra-large filter screen to effectively remove stubborn stains, dust, leaves, gravel, plastic bags, and other road debris. With its high-capacity waste hopper, it is versatile enough for cleaning operations in various public spaces, including narrow streets and alleys, auxiliary roads, sidewalks, school campuses, and public squares.
Suitable locations: Municipal roads, factories, schools and universities, parks, public squares, villa complexes, and lanes for motor and non-motor vehicles.
Suitable surfaces: Concrete, asphalt, marble, etc.
Key Features of the C220 Pure-Suction Road Sweeper
Multi-Stage Dust Control System
Multi-stage suction, atomized spraying and water circulation work together to control airborne dust and reduce dust resuspension throughout the sweeping process.
Intelligent Electronic Control and Protection
The electronic control system provides stepless speed adjustment, motor short-circuit protection, circuit overload protection and low-voltage alarms for stable machine operation.
High-Pressure Washing and Rear Mist Spraying
The standard cleaning system includes a 15 m automatic hose reel, handheld high-pressure spray gun and rear atomizing spray bar for removing stubborn surface dirt and suppressing dust.
Optional Handheld Vacuum Hose
An optional handheld suction hose enables targeted collection of debris from corners, roadside areas, tree pits and other locations that the main sweeping system cannot easily reach.
High-Power AC Suction Fan
The AC-powered suction fan uses an optimized airflow design for strong debris and wastewater collection. A sealed, corrosion-resistant stainless steel recovery tank and large filter screen support a collection efficiency of up to 95% under specified operating conditions.
72 V/400 Ah Lithium Battery
The standard 72 V/400 Ah lithium battery pack provides approximately 5–6 hours of continuous operation. Fast charging and intelligent pulse-charging support longer daily operating availability.
Hydraulic High-Lift Hopper Dumping
The stainless steel waste hopper uses a hydraulic high-lift dumping system, allowing collected material to be discharged directly into a transfer container while reducing manual handling and spillage.
Roof-Mounted Heating and Air Conditioning
The integrated roof-mounted HVAC system provides heating and cooling with low operating noise. Its compact design reduces the number of external hose connections and the associated risk of refrigerant leakage.
Parameter
Specification
Value
Maximum sweeping productivity
20,000 m²/h
Maximum travel speed
25 km/h
Maximum sweeping width
2,300 mm
Working speed
8–10 km/h
Clean water tank capacity
460 L
Waste hopper capacity
1,200 L
Sweeping efficiency
95%
Gradeability
≤30%
Operating time
≥6 hours
Drive system
Rear axle drive
Braking system
Four-wheel hydraulic brakes
Power supply
72 V lithium battery
Machine weight
1,950 kg
Dimensions (L × W × H)
4,400 × 1,330 × 2,200 mm
Technologies
Integrated Cleaning Systems
Practical cleaning technologies, reliable power systems and user-friendly controls configured for professional cleaning applications.
Modular Function Design
Sweeping, scrubbing, water recovery, dust suppression, high-pressure washing and waste collection — each tuned to the environment and surface.
Stability & Safety
Engineered for cleaning efficiency, operational stability, operator safety and convenient maintenance with accessible service components.
Pre-delivery Testing
Every machine undergoes functional inspection covering cleaning system, water supply, suction, electrics, driving and safety devices.
Custom & OEM/ODM
Optional configurations available for distributors and contractors — tailored to area, surface, waste type, working time and local requirements.
Anhui Nanbo Intelligent Environmental Equipment Co., Ltd. — founded in 2015, headquartered in Wuhu. We are a national High-Tech Enterprise with 80+ patents and ISO 9001 certification, focused on the R&D and manufacturing of floor scrubbers, floor sweepers, high-pressure washers and new-energy sanitation vehicles.
Three main factors to consider: cleaning area, floor material and dominant soil type. Hand-push scrubbers are typically used for areas under 3,000 m², while ride-on versions suit 5,000 m² and above. Sweepers handle dry dust and debris; scrubbers handle oil and water spills — many facilities run both for the best result.
Sweepers use dry technology (sweep + suction) to remove dust, chips and loose debris without water. Scrubbers use wet technology (spray + scrub + suction) with water and detergent to remove oil and liquid spills, leaving the floor dry immediately. They serve different purposes and are not substitutes.
Pricing varies significantly depending on model, configuration, battery type and quantity. As a source manufacturer, we offer competitive factory-direct pricing and can tailor packages to your project. Please contact us for a precise quotation based on your specific needs.
Lead-acid is the economical choice for single-shift (8-hour) operations. Lithium is recommended for double or triple shifts: it charges in 2–3 hours, lasts roughly 2,000 charge cycles and requires no maintenance over its lifetime.
