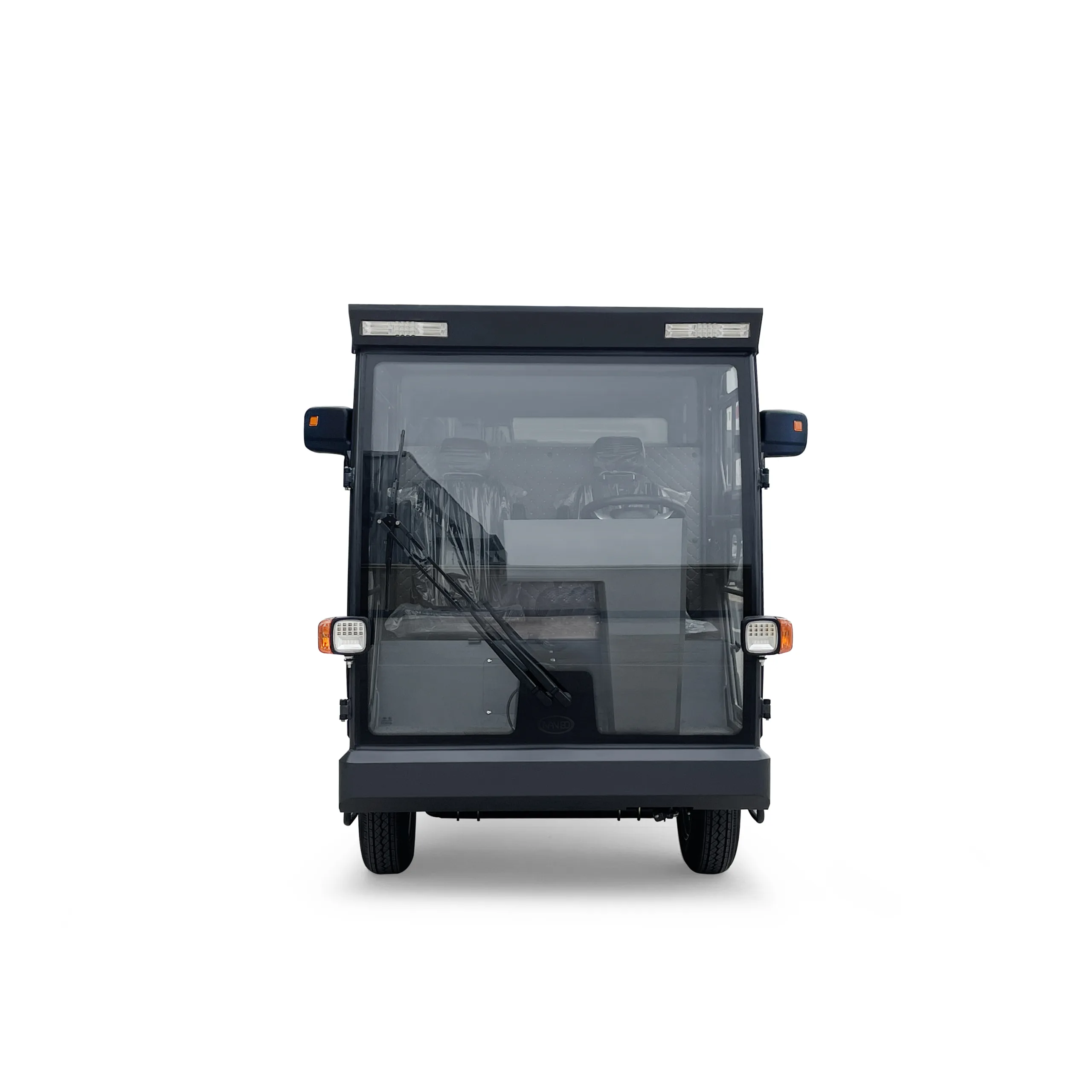

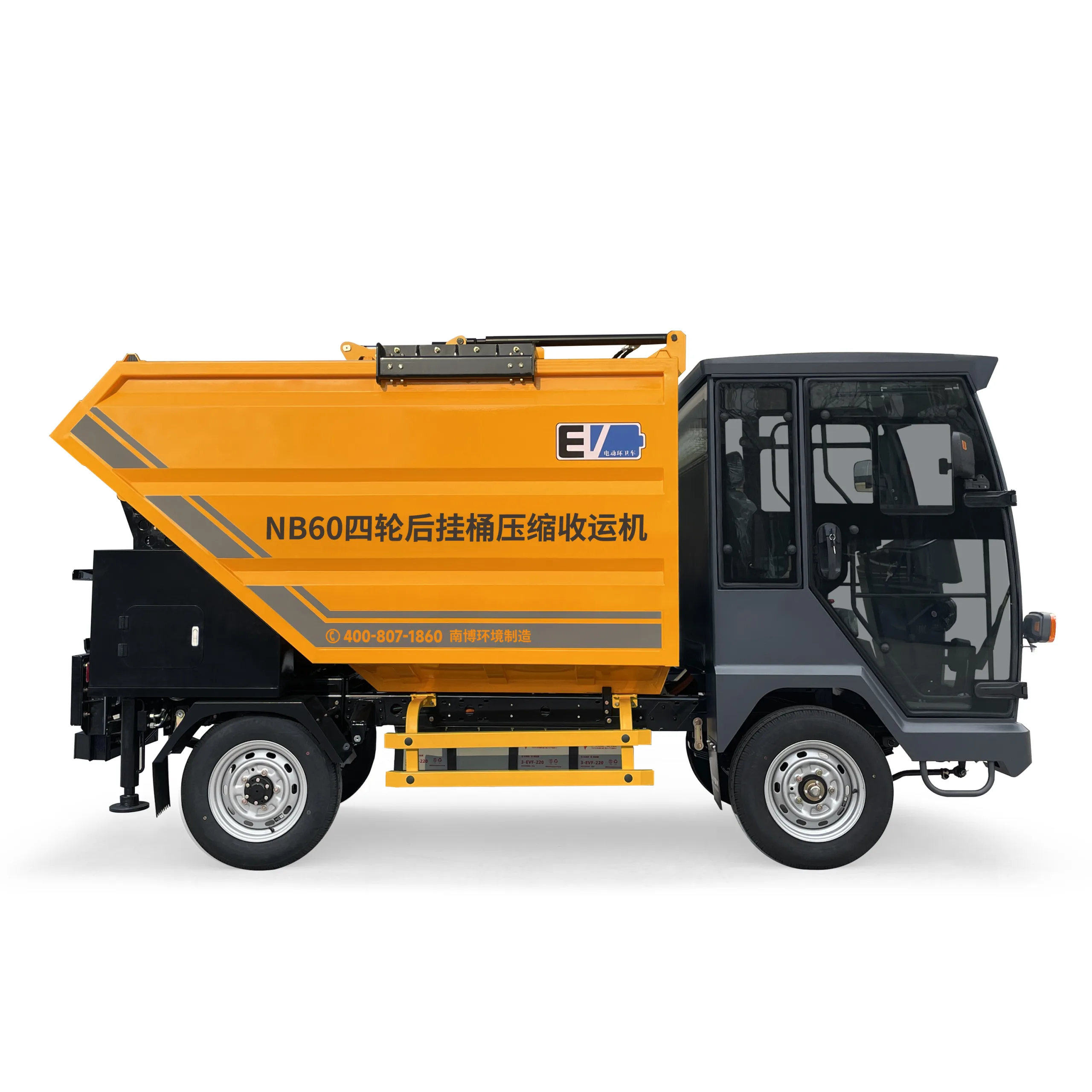

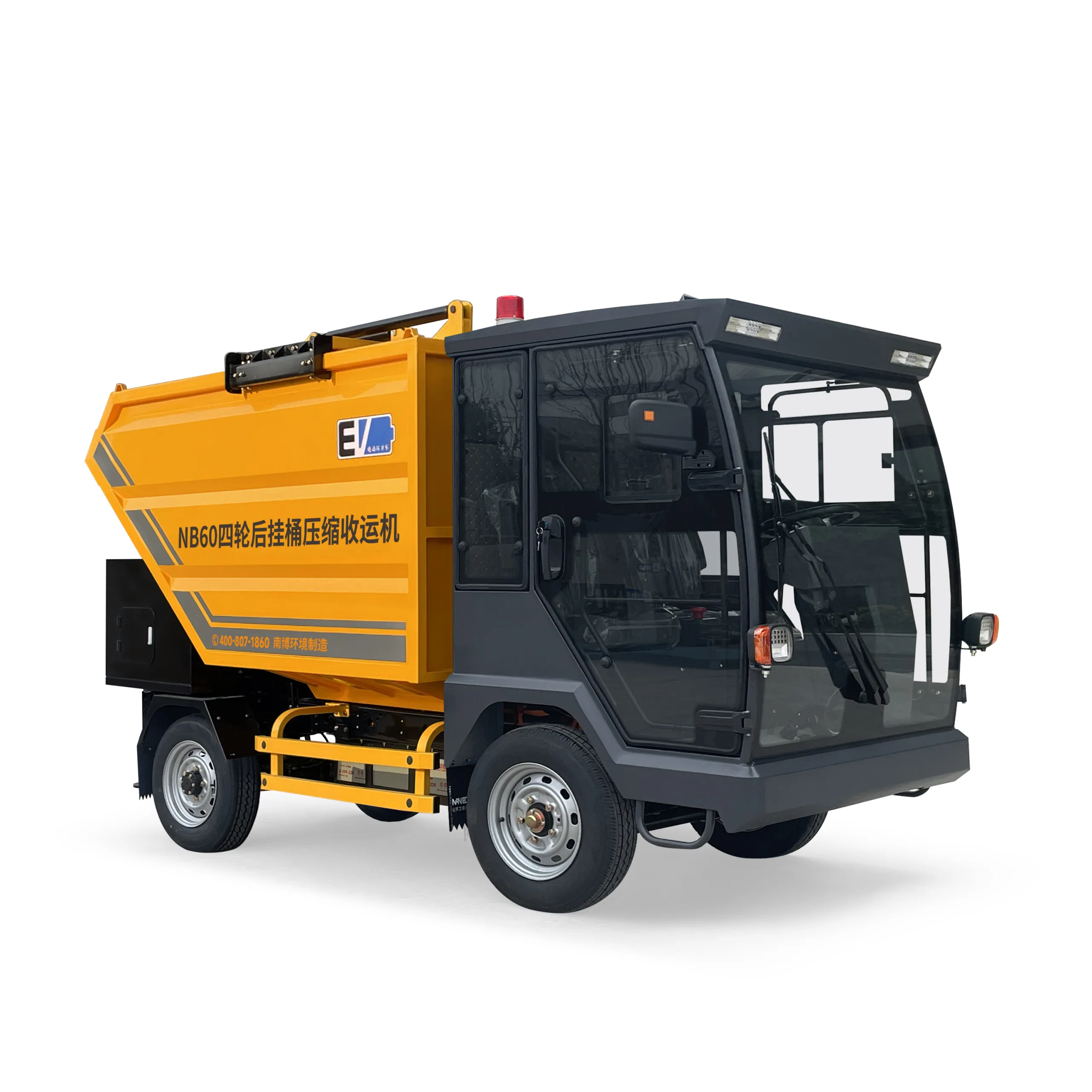

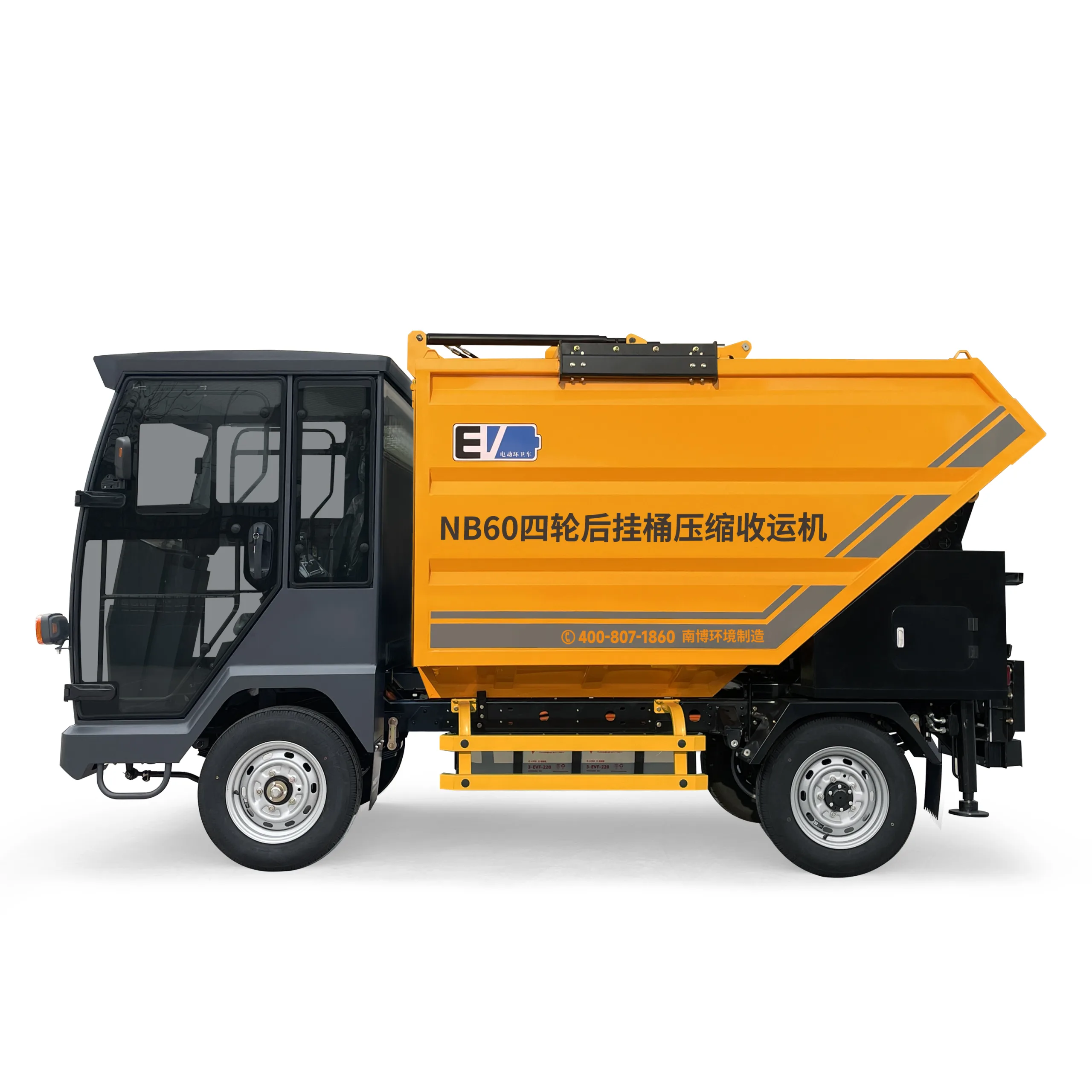

The NB60 four-wheel rear-loading compactor truck is a fully automated, mechanized waste collection vehicle featuring a sleek, aerodynamic design that is both durable and visually appealing. Its rear-mounted bin-lifting mechanism allows a single operator to handle the entire collection and loading process, significantly reducing labor costs. The vehicle incorporates an internal hydraulic scraper and ground-support cylinders to ensure operational stability. Equipped with an electronic power-assist system, it offers effortless steering and agile maneuverability, allowing for easy stop-and-go operation. It is suitable for waste collection in a wide range of settings, including urban streets, transport hubs (stations, airports, and docks), industrial facilities, schools, hospitals, public squares, residential alleys, and pedestrian walkways.
The NB60 four-wheel rear-loading compactor truck is a fully automated, mechanized waste collection vehicle featuring a sleek, aerodynamic design that is both durable and visually appealing. Its rear-mounted bin-lifting mechanism allows a single operator to handle the entire collection and loading process, significantly reducing labor costs. The vehicle incorporates an internal hydraulic scraper and ground-support cylinders to ensure operational stability. Equipped with an electronic power-assist system, it offers effortless steering and agile maneuverability, allowing for easy stop-and-go operation. It is suitable for waste collection in a wide range of settings, including urban streets, transport hubs (stations, airports, and docks), industrial facilities, schools, hospitals, public squares, residential alleys, and pedestrian walkways.
Key Features of the NB60 Four-Wheel Rear-Loading Compactor Truck
Heavy-Duty Rear Axle and Hydraulic Brakes
The fully suspended integrated rear axle features a differential, reinforced axle shafts, and large-diameter split brake drums. Hydraulic drum brakes provide stable braking under loaded operating conditions.
Sealed Waste Compaction System
The enclosed loading and compaction system helps contain wastewater and loose waste, reducing the risk of leakage and secondary pollution during collection and transport.
Scraper-Based Waste Compaction
Integrated scraper rails compress and move waste inside the container, increasing usable loading capacity and reducing the frequency of unloading trips.
High-Level Rear Tipping Discharge
The rear tipping mechanism enables high-position discharge into compatible waste transfer or compaction vehicles, supporting efficient waste transfer operations.

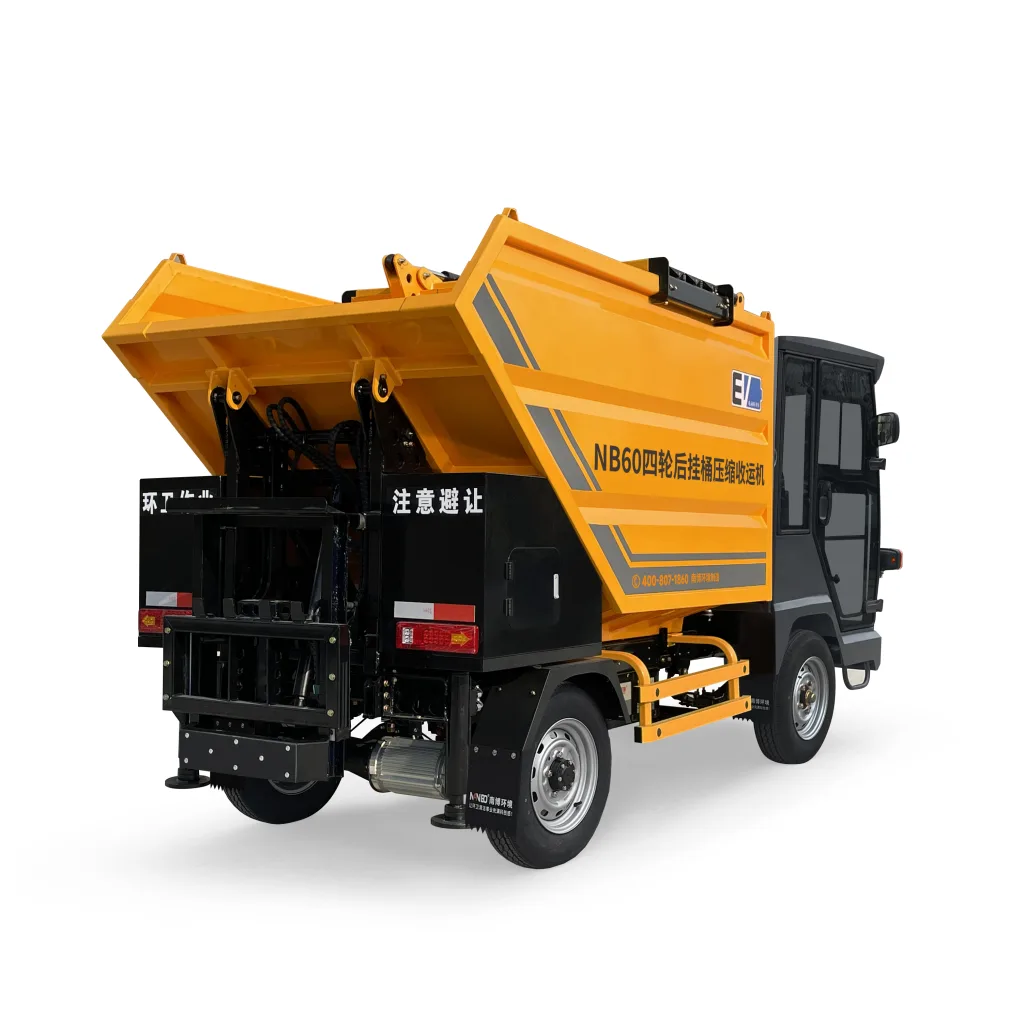

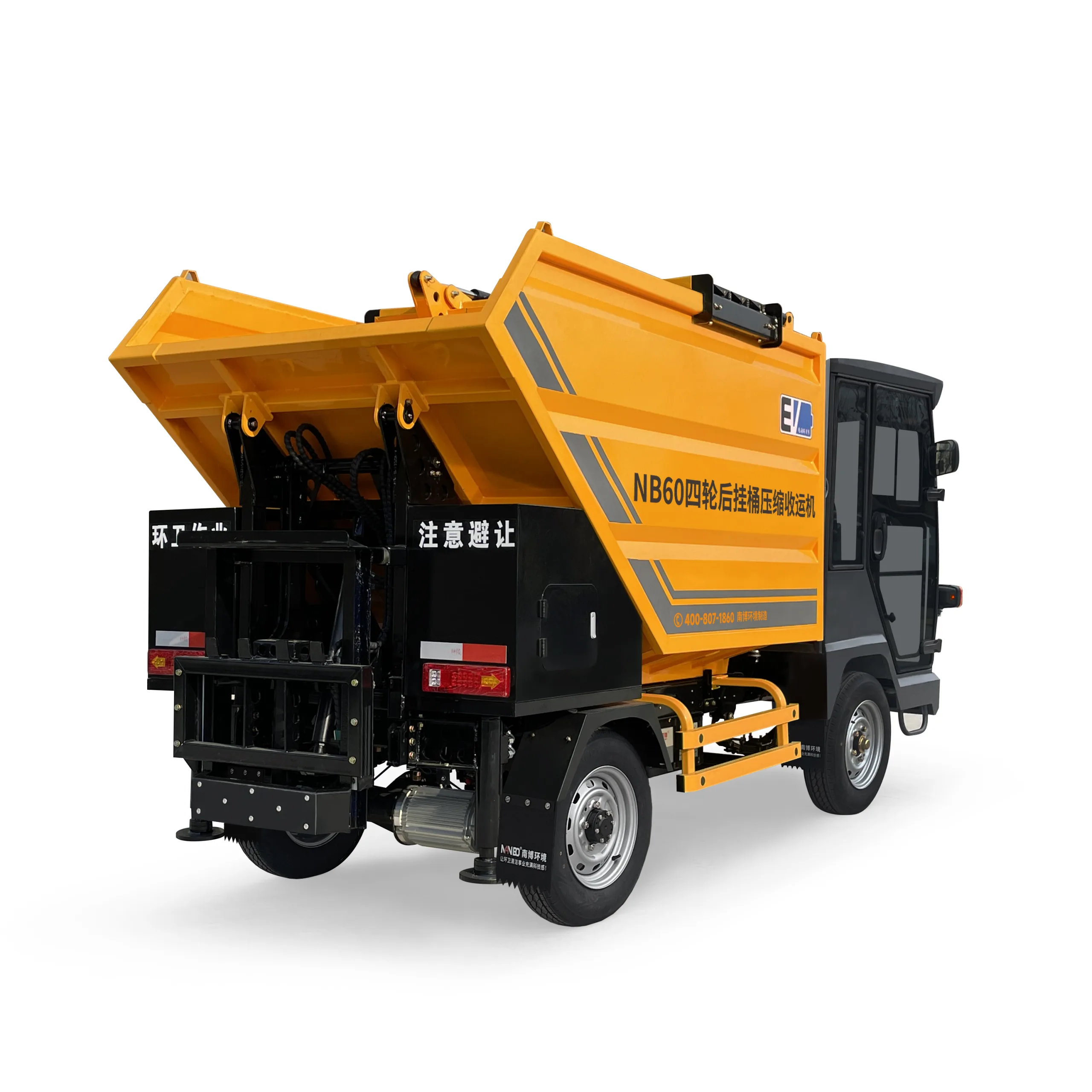

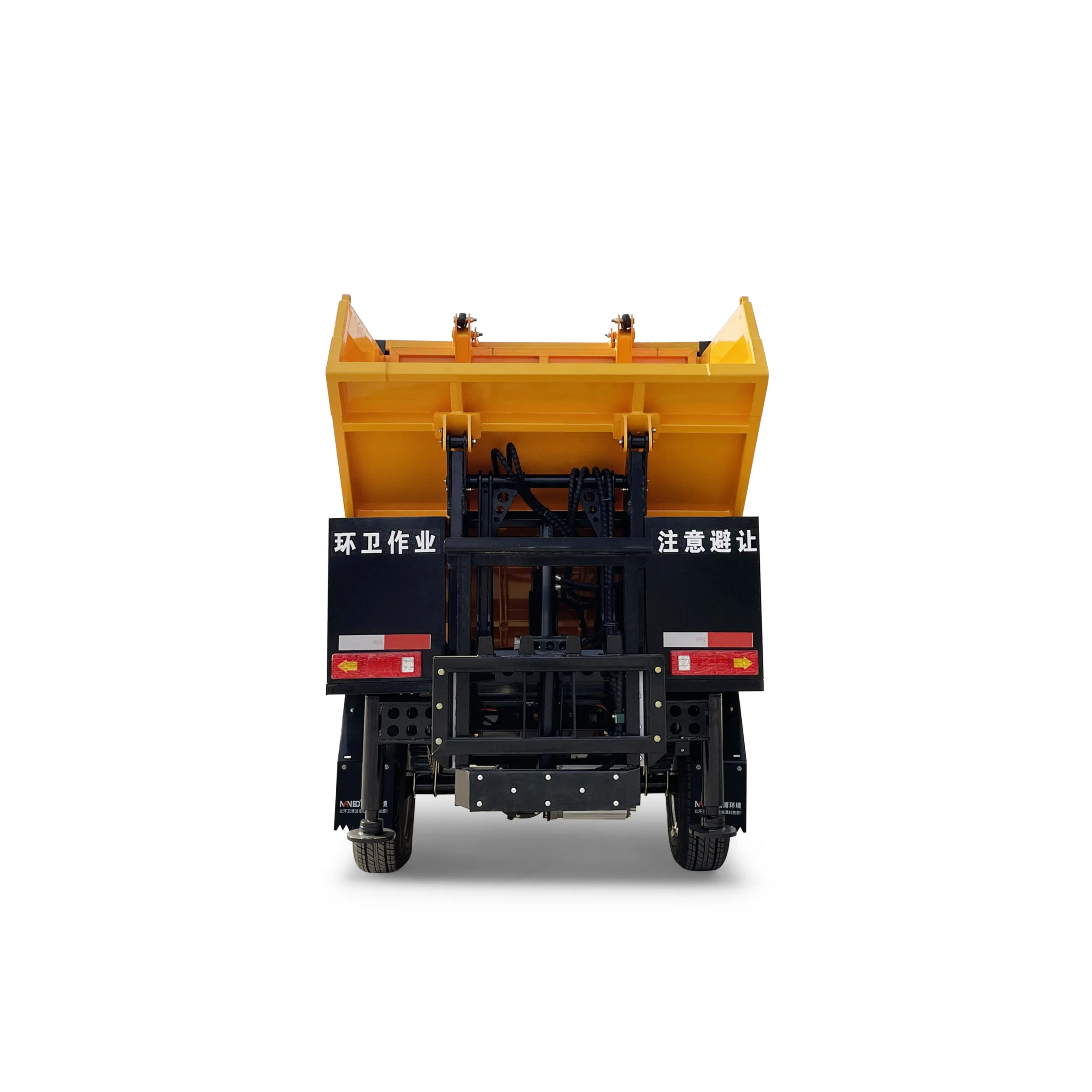

Automatic Bin-Lifting System
A rear-mounted robotic lifting arm automatically raises and tips waste bins, simplifying loading and reducing manual handling requirements.
Compact and Maneuverable Design
The short wheelbase provides flexible steering and a tight turning radius. The vehicle supports single-operator, stop-and-go collection in narrow streets and confined areas.
Panoramic Aluminum Alloy Cab
The lightweight aluminum alloy cab provides a wide field of view, while the independently adjustable seat improves operator comfort during extended shifts.
Corrosion-Resistant Surface Treatment
The waste container uses a high-temperature baked coating, while the frame and bin-lifting mechanism are powder-coated to improve resistance to corrosion, weathering, and operational wear.
Dual Hydraulic Safety Supports
Two rear hydraulic support struts stabilize the vehicle during tipping and unloading, improving operational safety when transferring waste into medium- and large-capacity compaction trucks.
Parameter
Parameter
Specification
Drive Motor Power
7,500 W
Maximum Gross Vehicle Weight
2,300 kg
Maximum Travel Speed
28 km/h
Wheelbase
2,120 mm
Gradeability
≤15%
Power Source
72 V / 200 Ah Maintenance-Free Lead-Acid Battery Pack
Drive System
Rear-Axle Drive
Braking System
Vacuum-Assisted Hydraulic Drum Brakes
Seating Capacity
2 Persons
Waste Container Dimensions (L × W × H)
2,660 × 1,480 × 1,440 mm
Vehicle Dimensions (L × W × H)
4,240 × 1,560 × 2,280 mm
