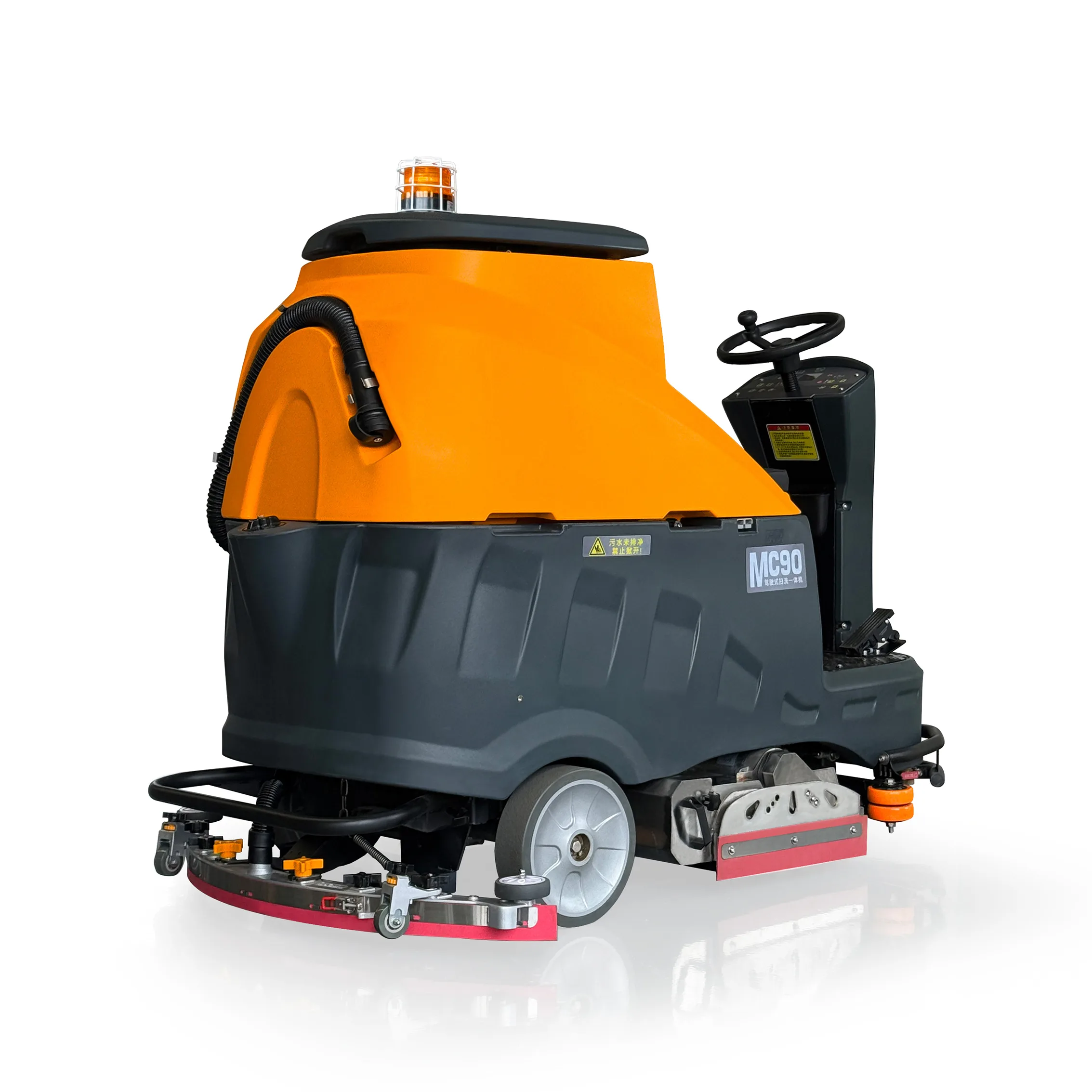

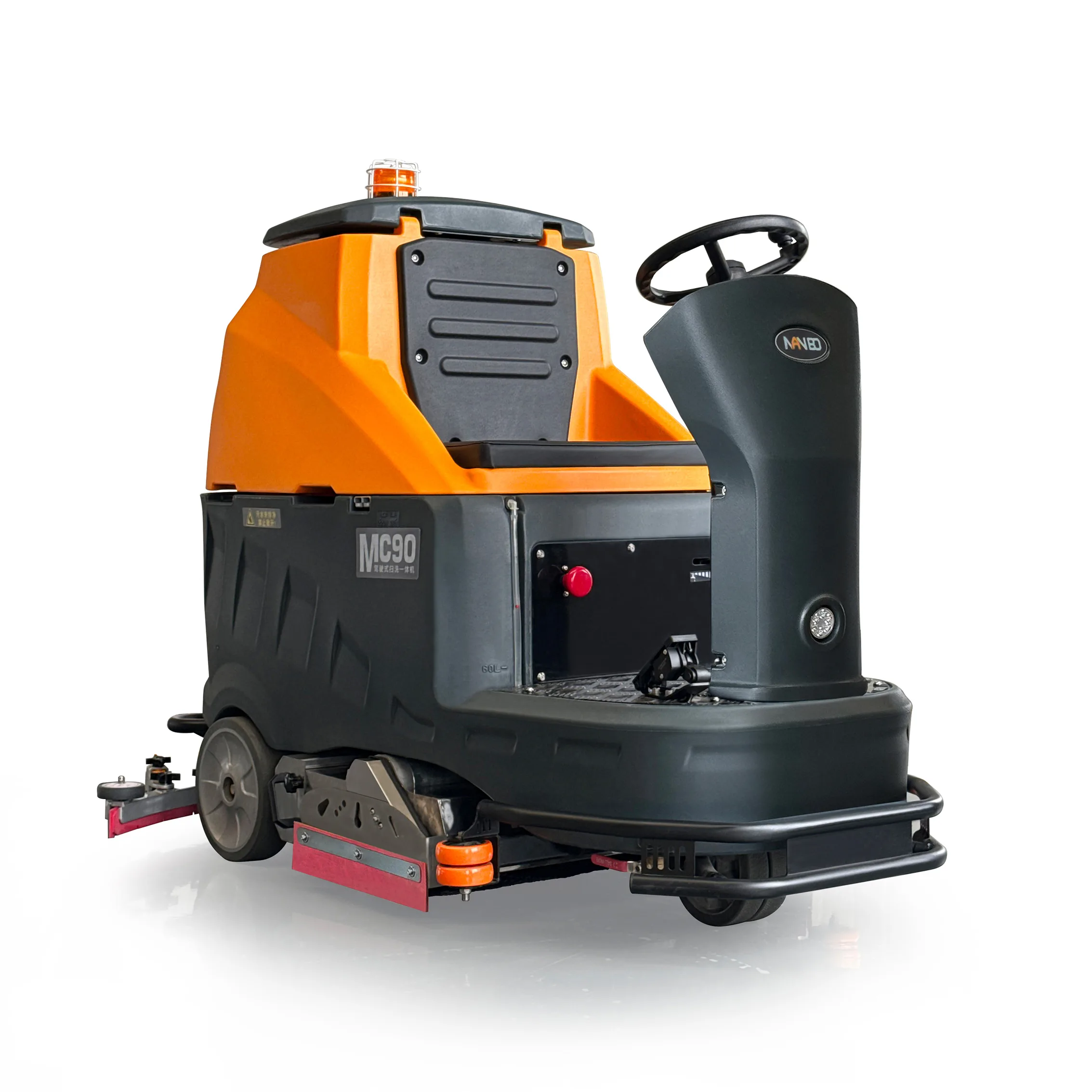

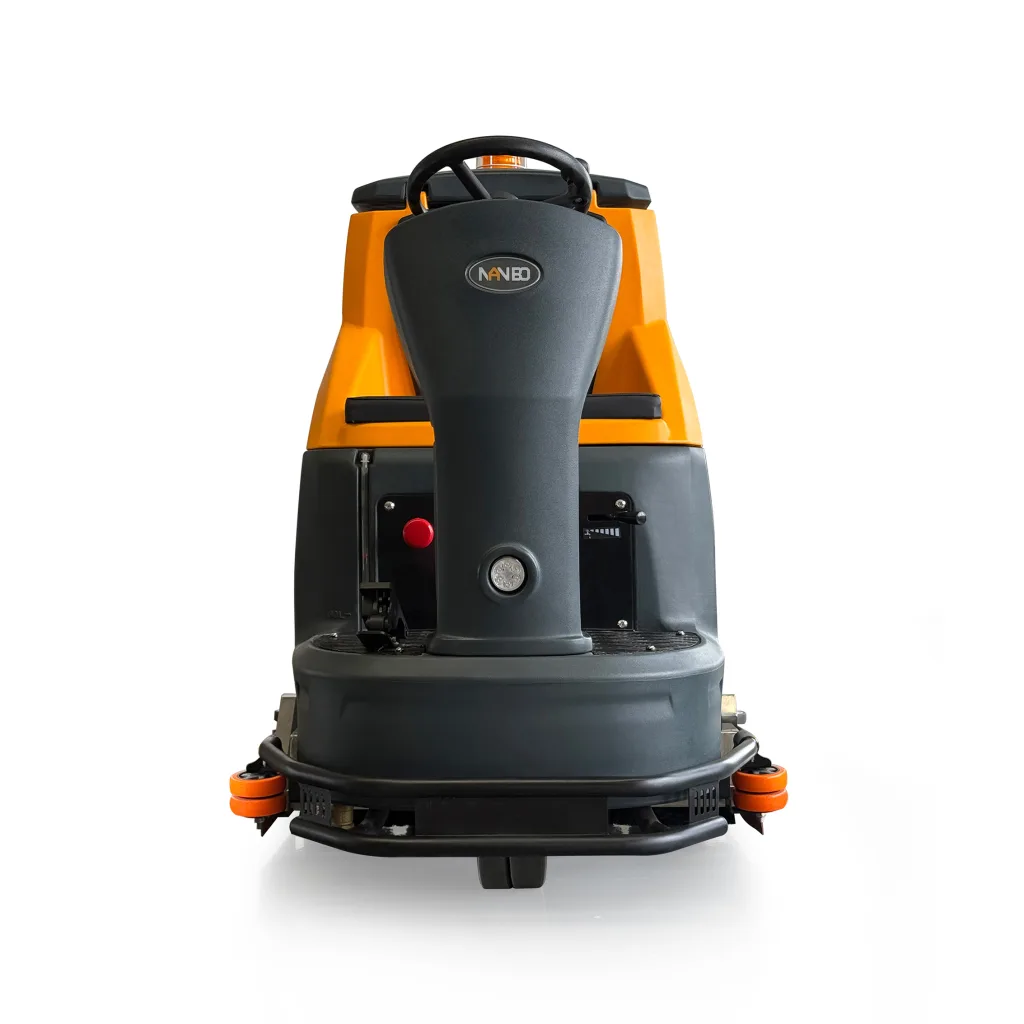

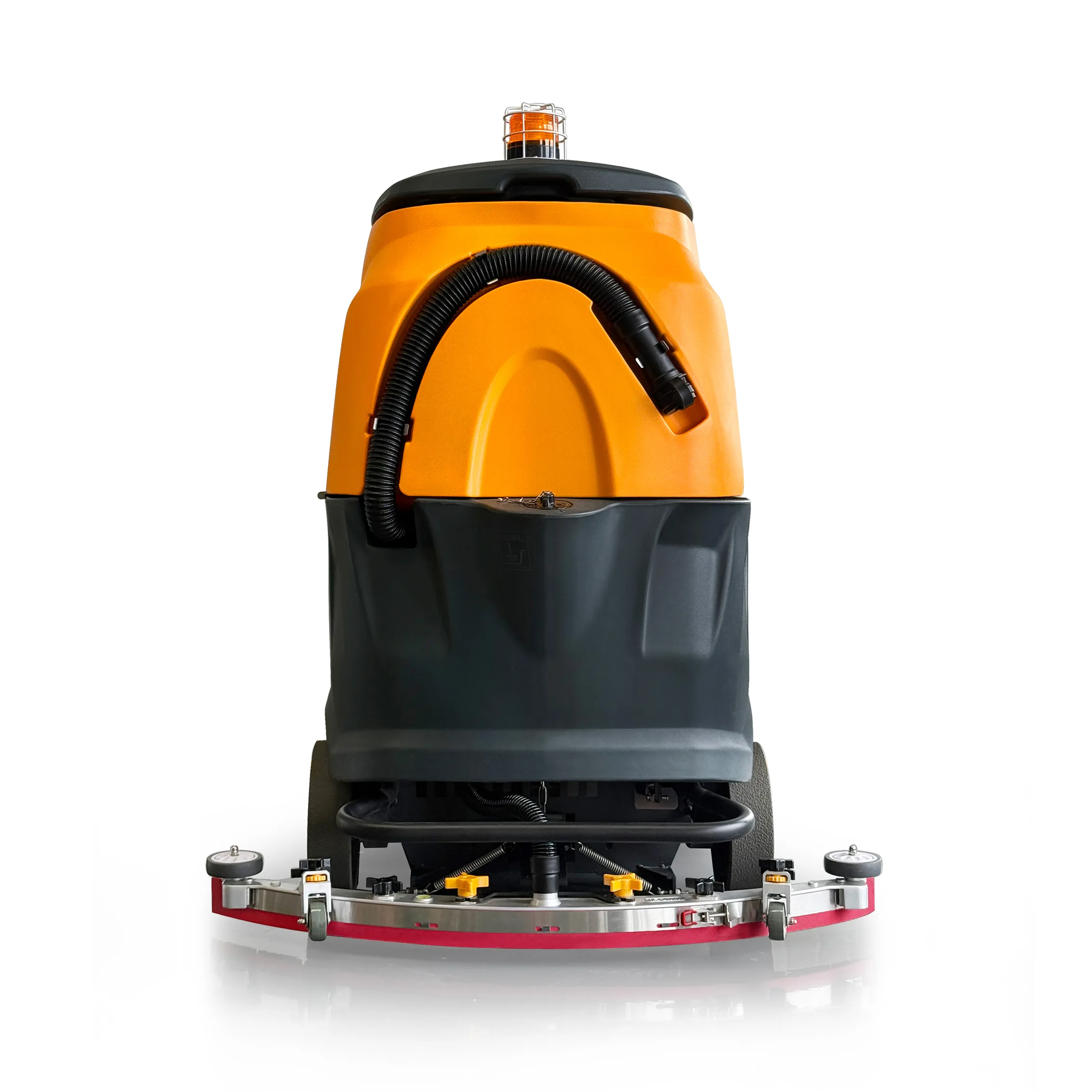

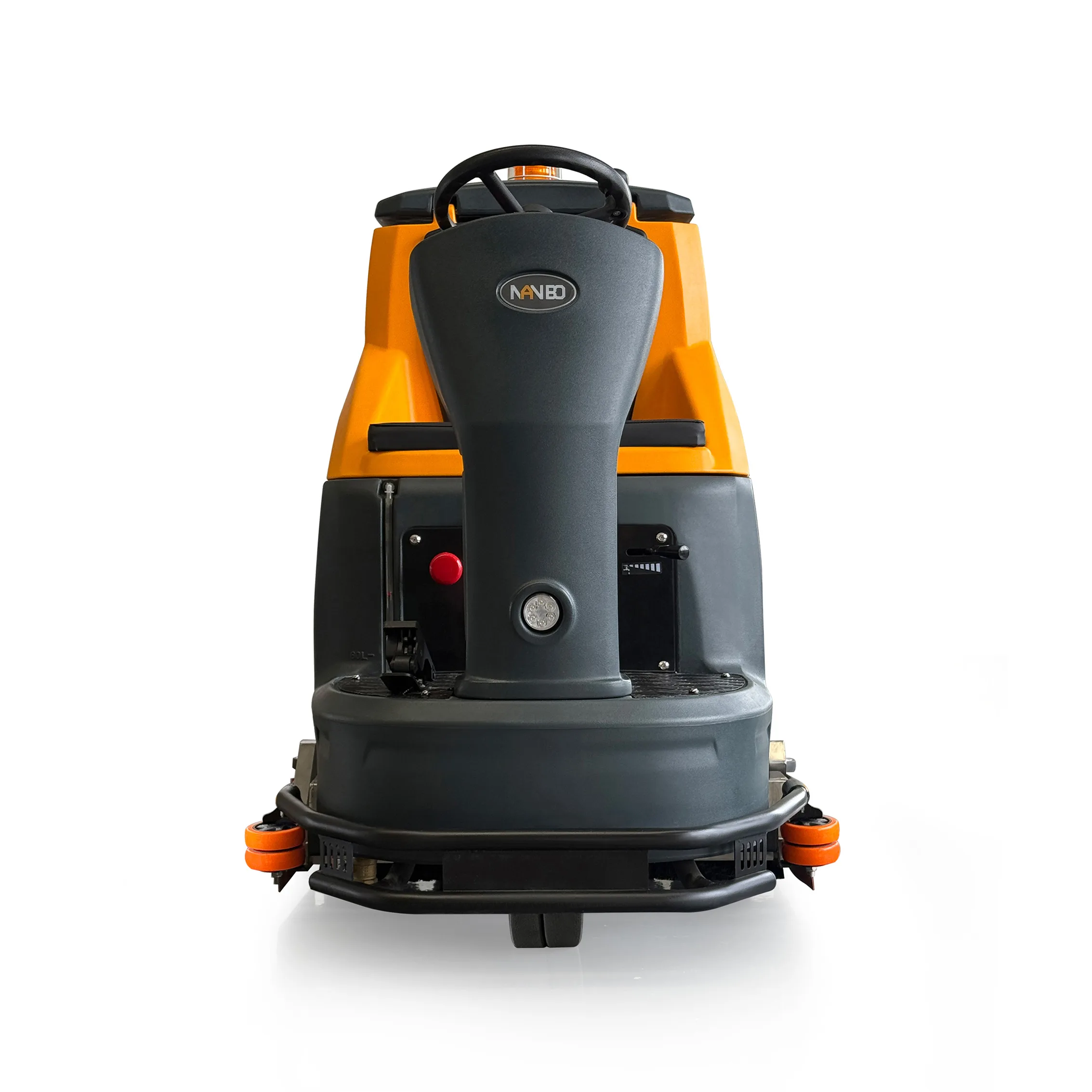

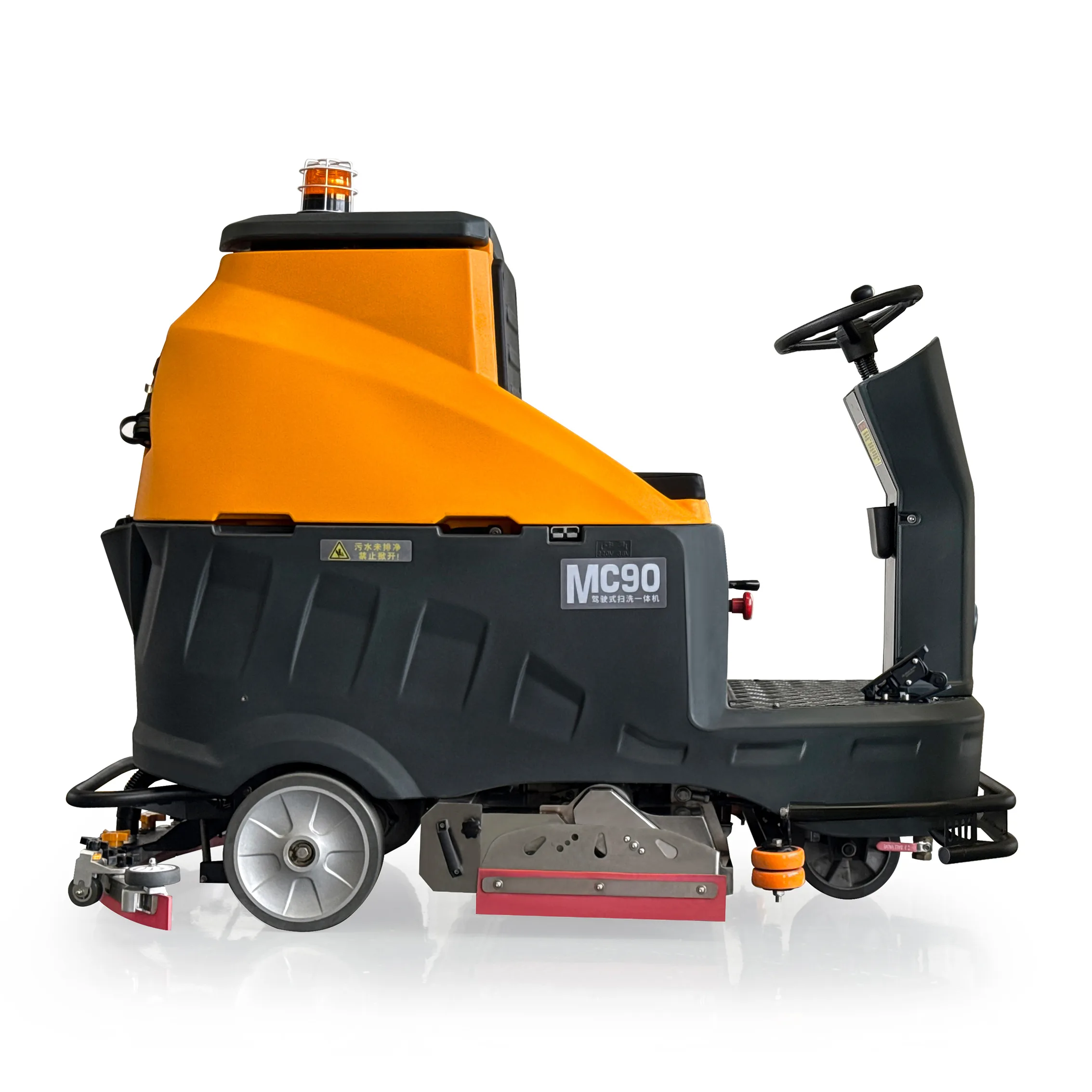

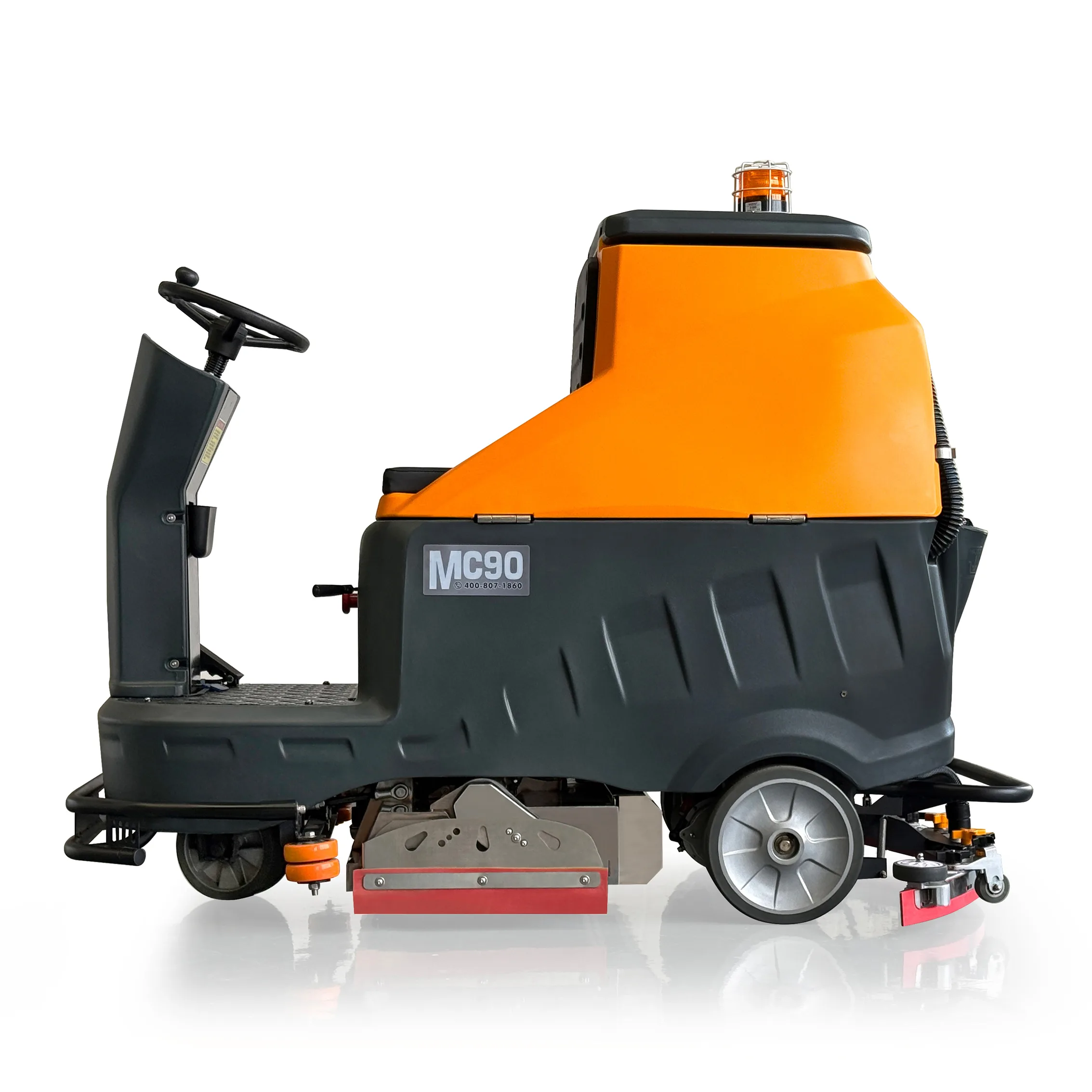

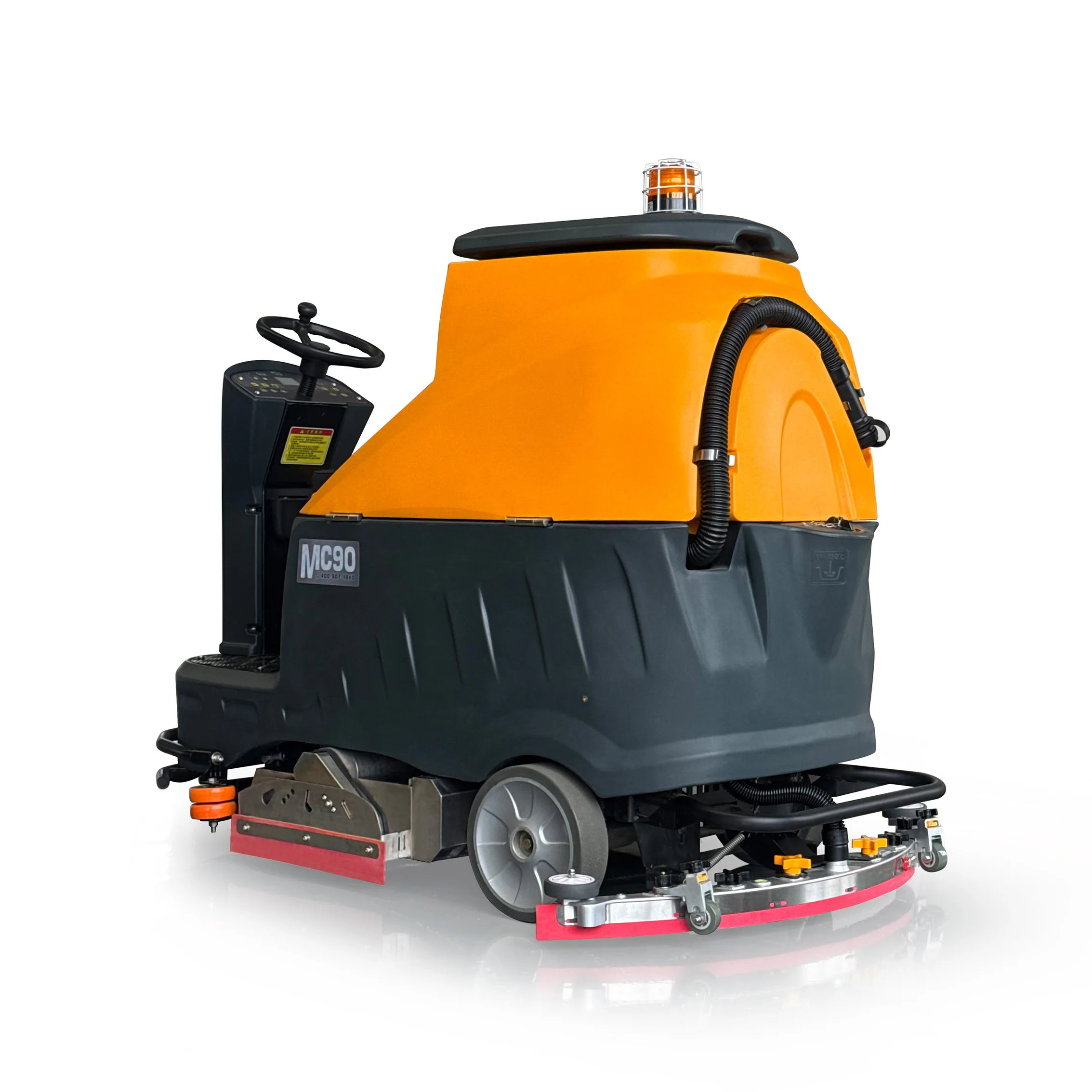

The Nanbo MC90 is a large, fully automatic, ride-on sweeper-scrubber. Featuring a dual-roller-brush design, it performs sweeping, scrubbing, and drying in a single pass, leaving floors looking brand new. Beyond simply vacuuming up dirty water, mud, grit, and oil into its recovery tank, it also collects debris such as screws, wood chips, nails, and metal fragments (like welding slag). This dual-function machine offers superior efficiency and convenience, delivering exceptional cleaning results on large outdoor urban plazas and heavily soiled industrial floors.
The Nanbo MC90 is a large, fully automatic, ride-on sweeper-scrubber. Featuring a dual-roller-brush design, it performs sweeping, scrubbing, and drying in a single pass, leaving floors looking brand new. Beyond simply vacuuming up dirty water, mud, grit, and oil into its recovery tank, it also collects debris such as screws, wood chips, nails, and metal fragments (like welding slag). This dual-function machine offers superior efficiency and convenience, delivering exceptional cleaning results on large outdoor urban plazas and heavily soiled industrial floors.
The machine’s operational performance rivals that of premium imported models.
Key Features of the MC90 Ride-on Sweeper-Scrubber
Dual Cylindrical Brush System
Two cylindrical brushes provide sweeping and scrubbing action. Each brush is driven by its own motor.
Multi-Stage Noise Reduction
The fan structure and multiple noise-reduction measures help limit operating noise during cleaning.
Brush and Vacuum Motors
The brush motor and three-layer fan motor support floor scrubbing and dirty-water recovery.
Soft Start and Stop
Two controllers provide soft start and stop functions, helping reduce abrupt changes in motor load.
Movement-Linked Brush Control
The brushes stop when the machine is stationary, helping prevent floor damage from prolonged scrubbing in one spot.
Recovery Tank Water Level Sensor
The sensor monitors the recovery tank water level to help prevent overflow and protect the vacuum motor.
Protective Bumpers and Low Center of Gravity
A low center of gravity supports stable travel. Surrounding bumpers and bumper wheels help protect the machine during operation.
Sweeping and Scrubbing in One Machine
The machine handles loose debris and floor washing in one cleaning process, reducing the need for separate sweeping and scrubbing equipment.
Dual Cylindrical Brushes and Debris Hopper
Two cylindrical brushes sweep loose debris into a collection hopper as part of the machine’s combined sweeping and scrubbing process.
ECO Energy-Saving Mode
ECO mode reduces energy consumption during suitable cleaning tasks and can help extend operating time between charges.
Parameter
Specification
Value
Maximum Cleaning Productivity
6,200 m²/h
Maximum Working Width
1,150 mm
Maximum Travel Speed
7 km/h
Continuous Operating Time
3–4 h
Solution Tank Capacity
200 L
Recovery Tank Capacity
210 L
Debris Hopper Capacity
25 L
Power Supply
36 V
Number of Cylindrical Brushes
2
Cylindrical Brush and Squeegee Lift
Automatic
Gradeability
≤30%
Machine Weight
470 kg
Dimensions (L × W × H)
1,840 × 1,150 × 1,535 mm
Technologies
Integrated Cleaning Systems
Practical cleaning technologies, reliable power systems and user-friendly controls configured for professional cleaning applications.
Modular Function Design
Sweeping, scrubbing, water recovery, dust suppression, high-pressure washing and waste collection — each tuned to the environment and surface.
Stability & Safety
Engineered for cleaning efficiency, operational stability, operator safety and convenient maintenance with accessible service components.
Pre-delivery Testing
Every machine undergoes functional inspection covering cleaning system, water supply, suction, electrics, driving and safety devices.
Custom & OEM/ODM
Optional configurations available for distributors and contractors — tailored to area, surface, waste type, working time and local requirements.
Anhui Nanbo Intelligent Environmental Equipment Co., Ltd. — founded in 2015, headquartered in Wuhu. We are a national High-Tech Enterprise with 80+ patents and ISO 9001 certification, focused on the R&D and manufacturing of floor scrubbers, floor sweepers, high-pressure washers and new-energy sanitation vehicles.
Three main factors to consider: cleaning area, floor material and dominant soil type. Hand-push scrubbers are typically used for areas under 3,000 m², while ride-on versions suit 5,000 m² and above. Sweepers handle dry dust and debris; scrubbers handle oil and water spills — many facilities run both for the best result.
Sweepers use dry technology (sweep + suction) to remove dust, chips and loose debris without water. Scrubbers use wet technology (spray + scrub + suction) with water and detergent to remove oil and liquid spills, leaving the floor dry immediately. They serve different purposes and are not substitutes.
Pricing varies significantly depending on model, configuration, battery type and quantity. As a source manufacturer, we offer competitive factory-direct pricing and can tailor packages to your project. Please contact us for a precise quotation based on your specific needs.
Lead-acid is the economical choice for single-shift (8-hour) operations. Lithium is recommended for double or triple shifts: it charges in 2–3 hours, lasts roughly 2,000 charge cycles and requires no maintenance over its lifetime.
