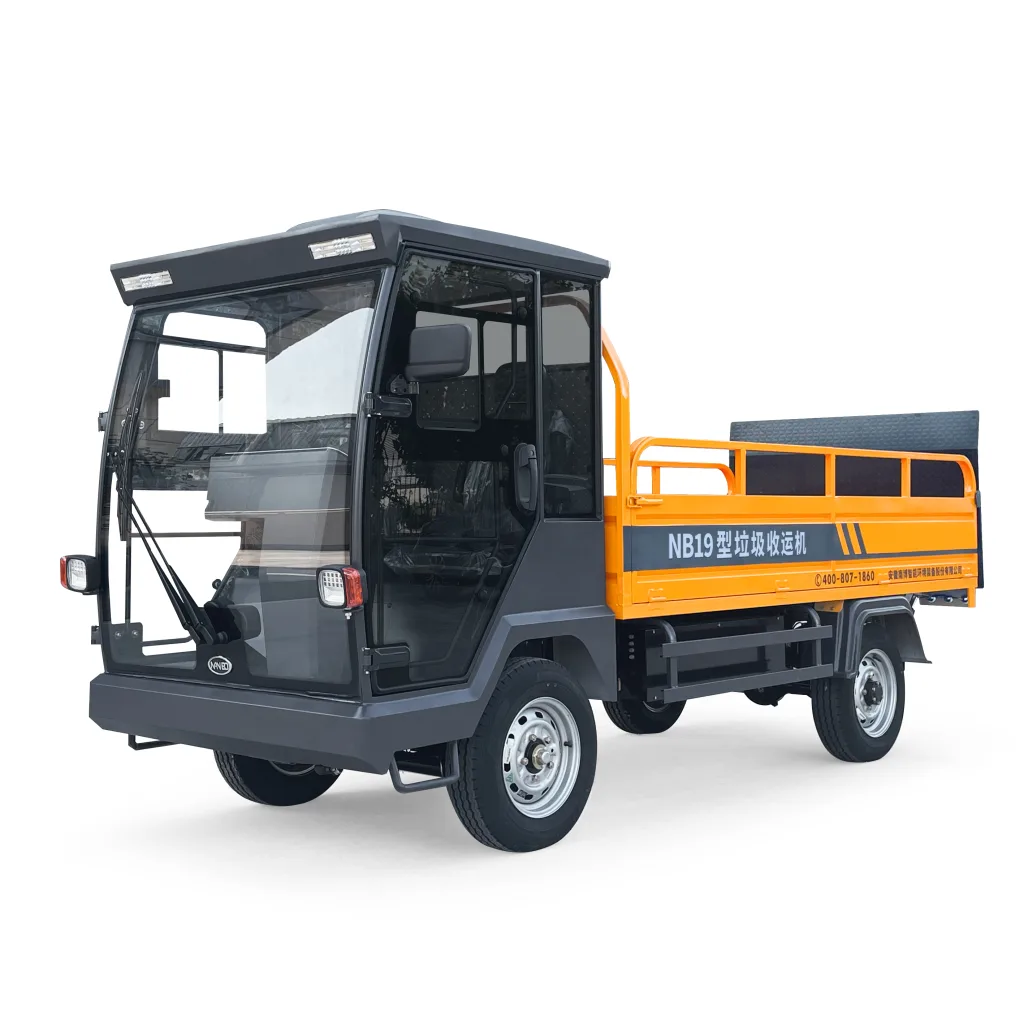

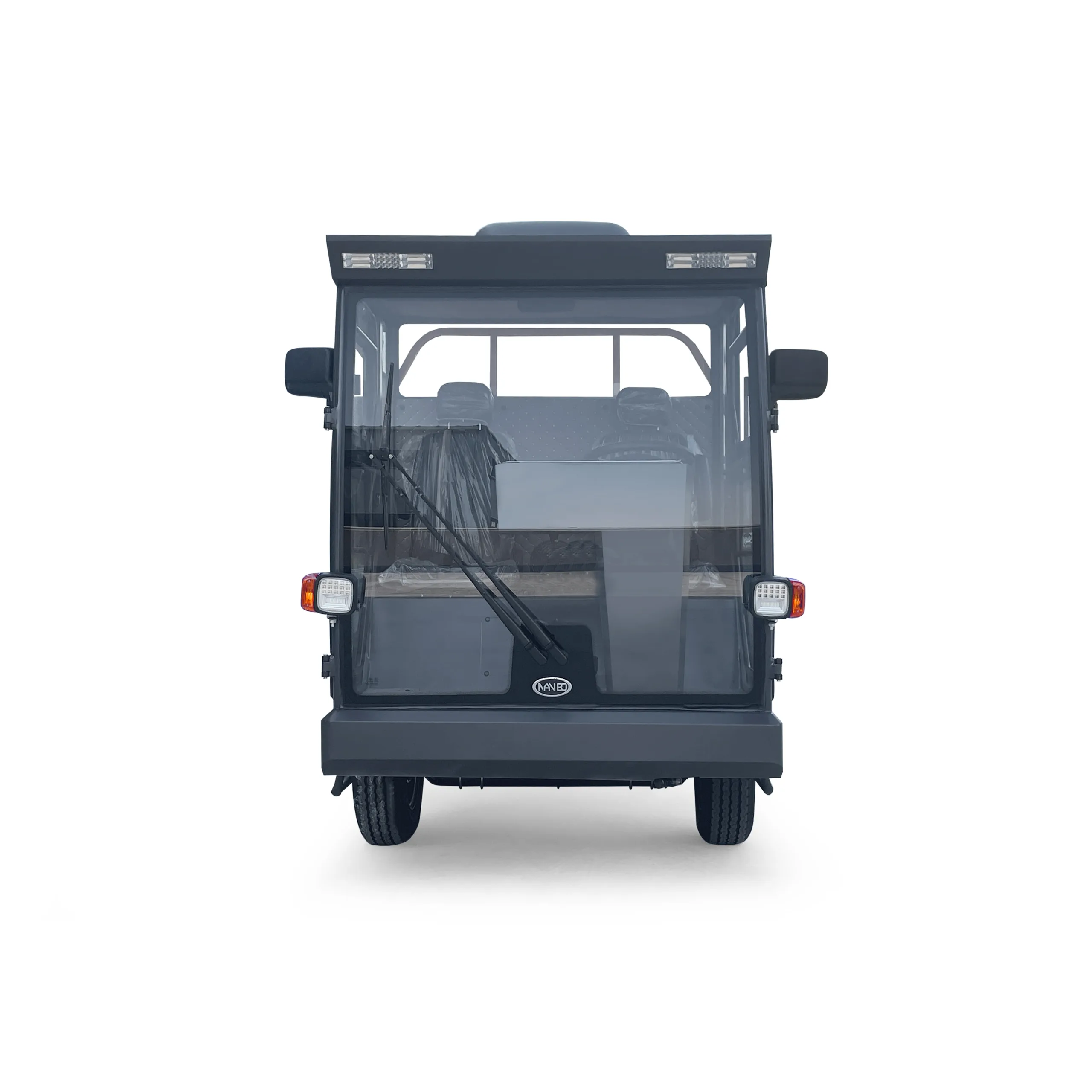

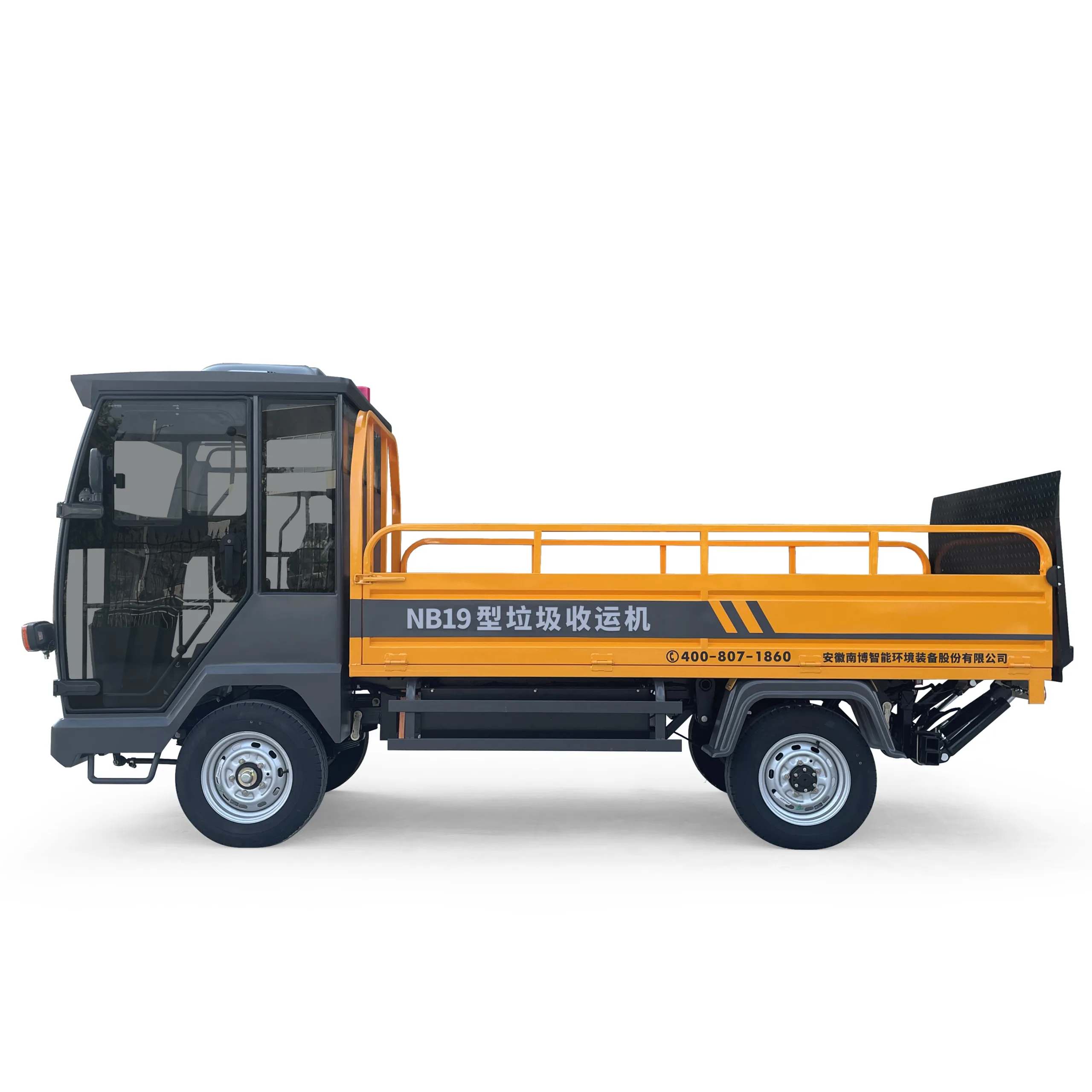

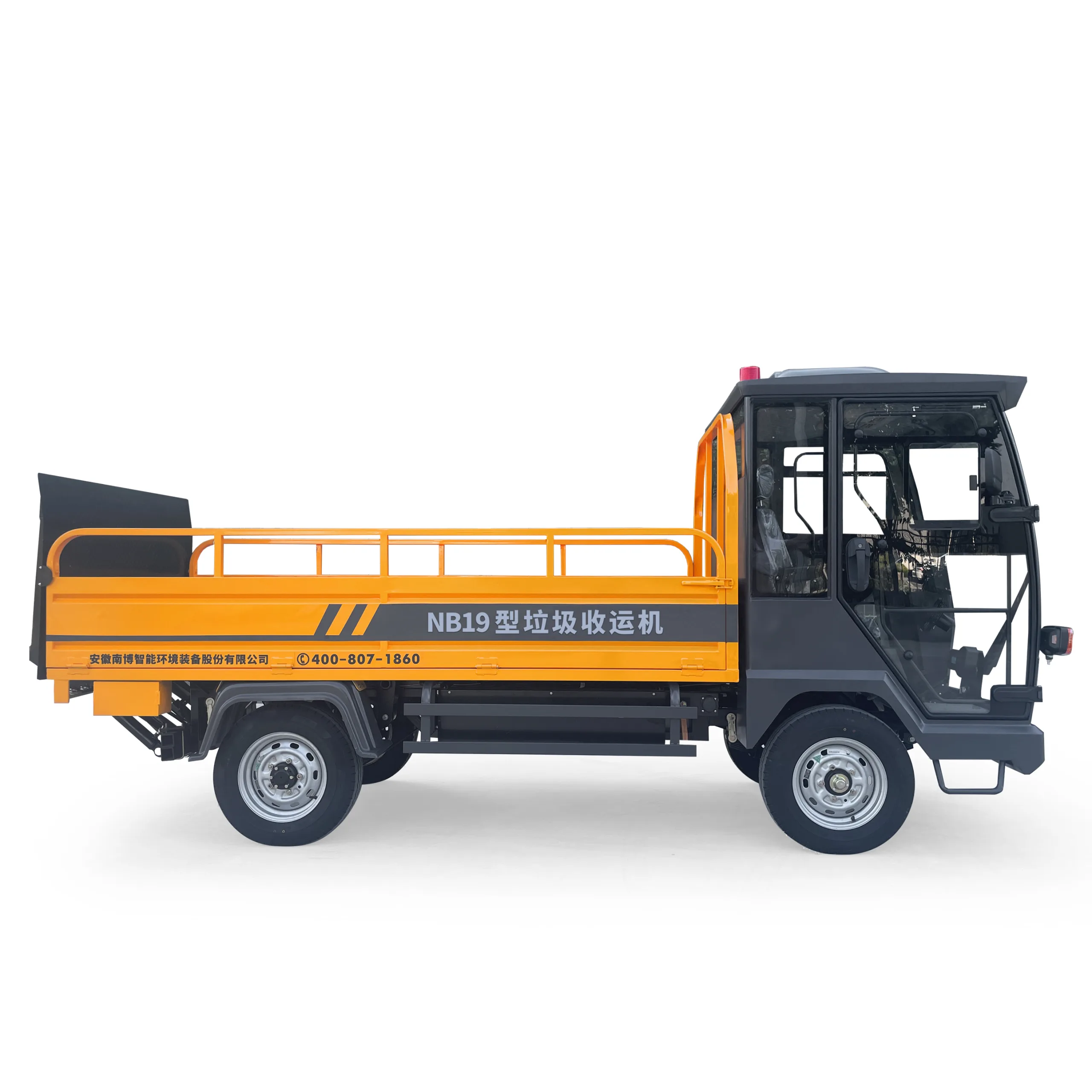

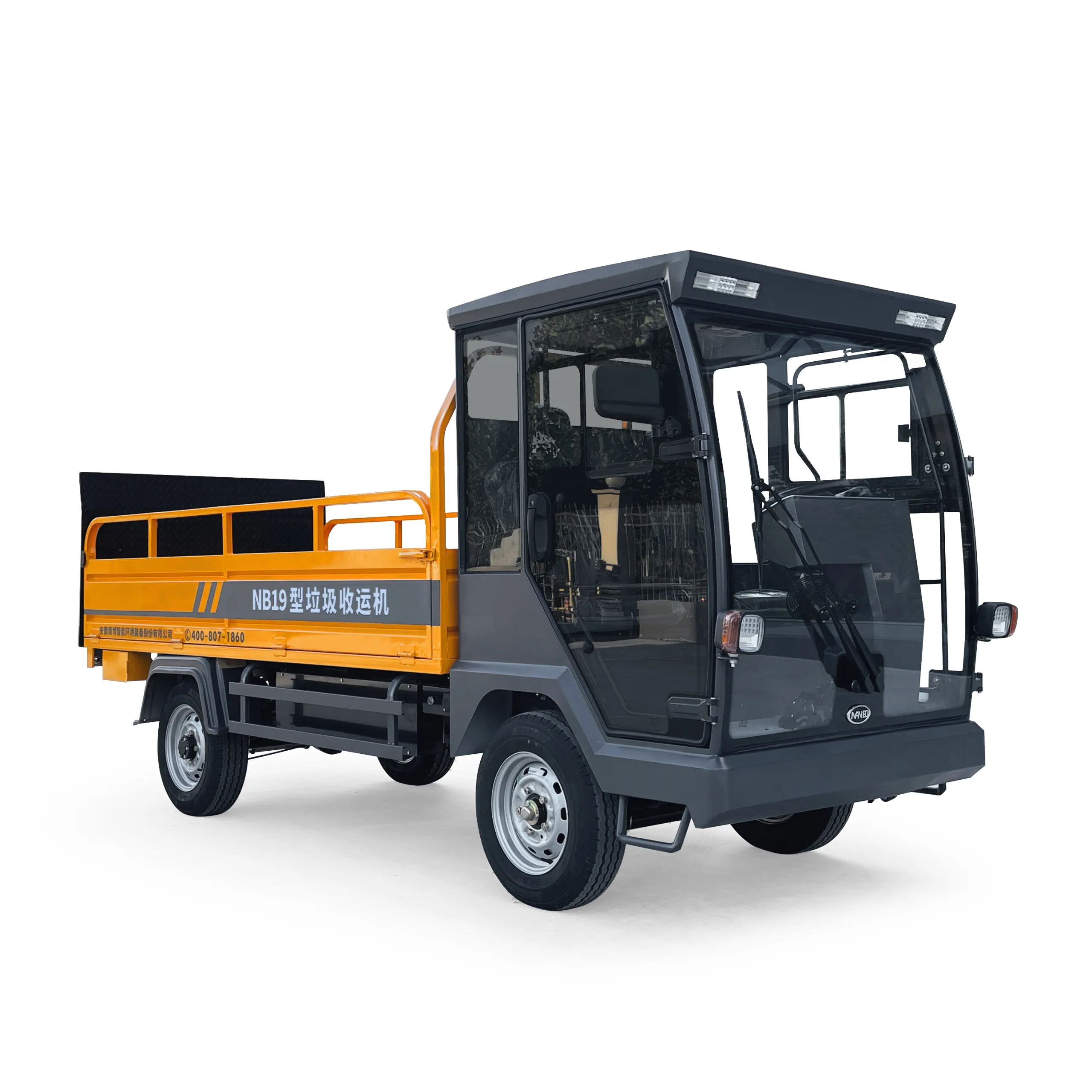

The Nanbo NB19 and NB20 are waste collection and transport vehicles designed to handle eight and ten bins, respectively. They feature high-capacity cargo compartments, automatic hydraulic lifting systems, and a compact, agile design. Primarily used for the transfer and transport of sorted waste bins in locations such as residential complexes, townships, commercial districts, tourist attractions, and schools, they are also suitable for general logistics and transport tasks. These versatile, all-electric vehicles offer low operating costs and zero emissions.
The Nanbo NB19 and NB20 are waste collection and transport vehicles designed to handle eight and ten bins, respectively. They feature high-capacity cargo compartments, automatic hydraulic lifting systems, and a compact, agile design. Primarily used for the transfer and transport of sorted waste bins in locations such as residential complexes, townships, commercial districts, tourist attractions, and schools, they are also suitable for general logistics and transport tasks. These versatile, all-electric vehicles offer low operating costs and zero emissions.
Key Features of the NB19 Waste Collection Vehicle
Heavy-Duty Welded Chassis
A fully welded chassis with four longitudinal main beams and dual-leaf-spring rear suspension provides reliable load-bearing capacity for demanding waste collection and transport operations.
Four-Wheel Hydraulic Braking System
Four-wheel hydraulic drum brakes and an independent mechanical parking brake provide responsive braking and enhanced operational safety.

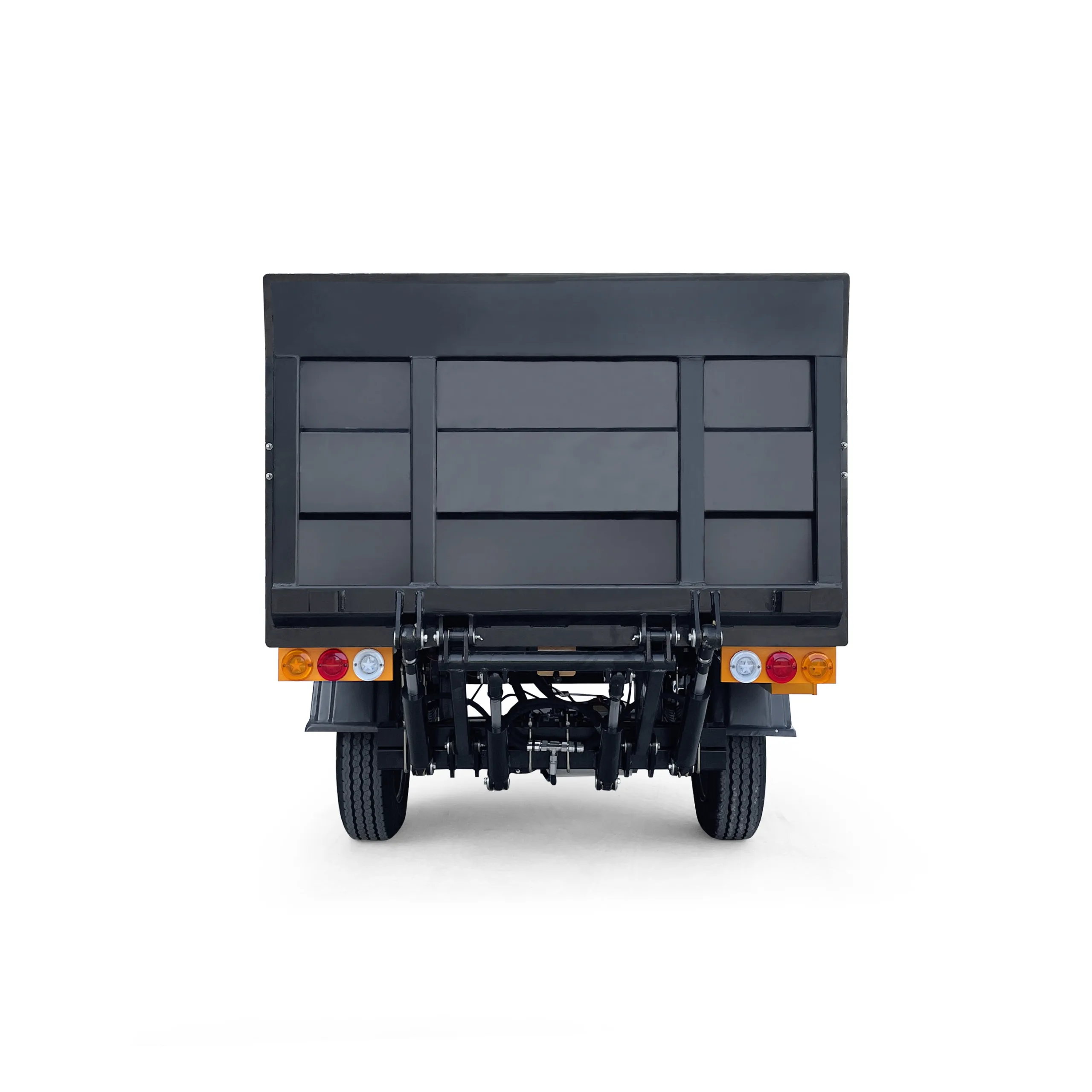

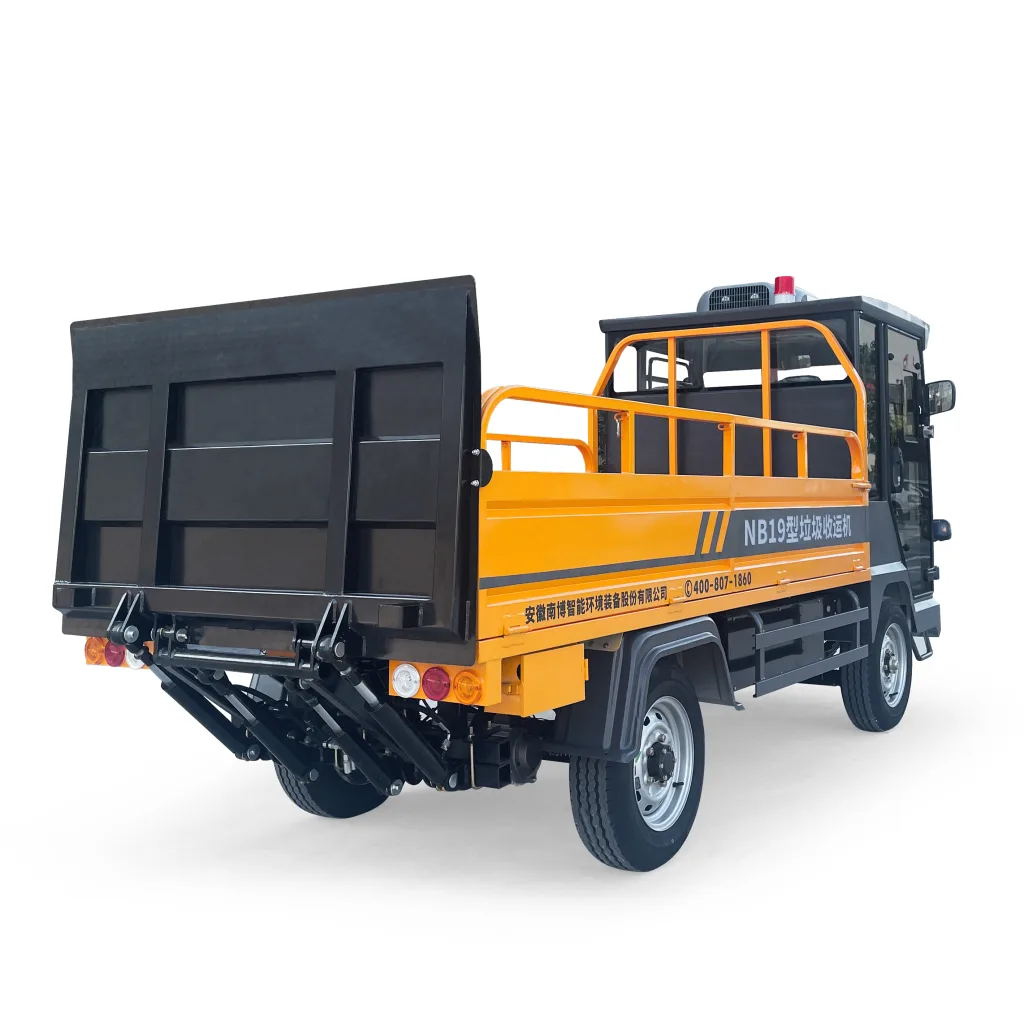

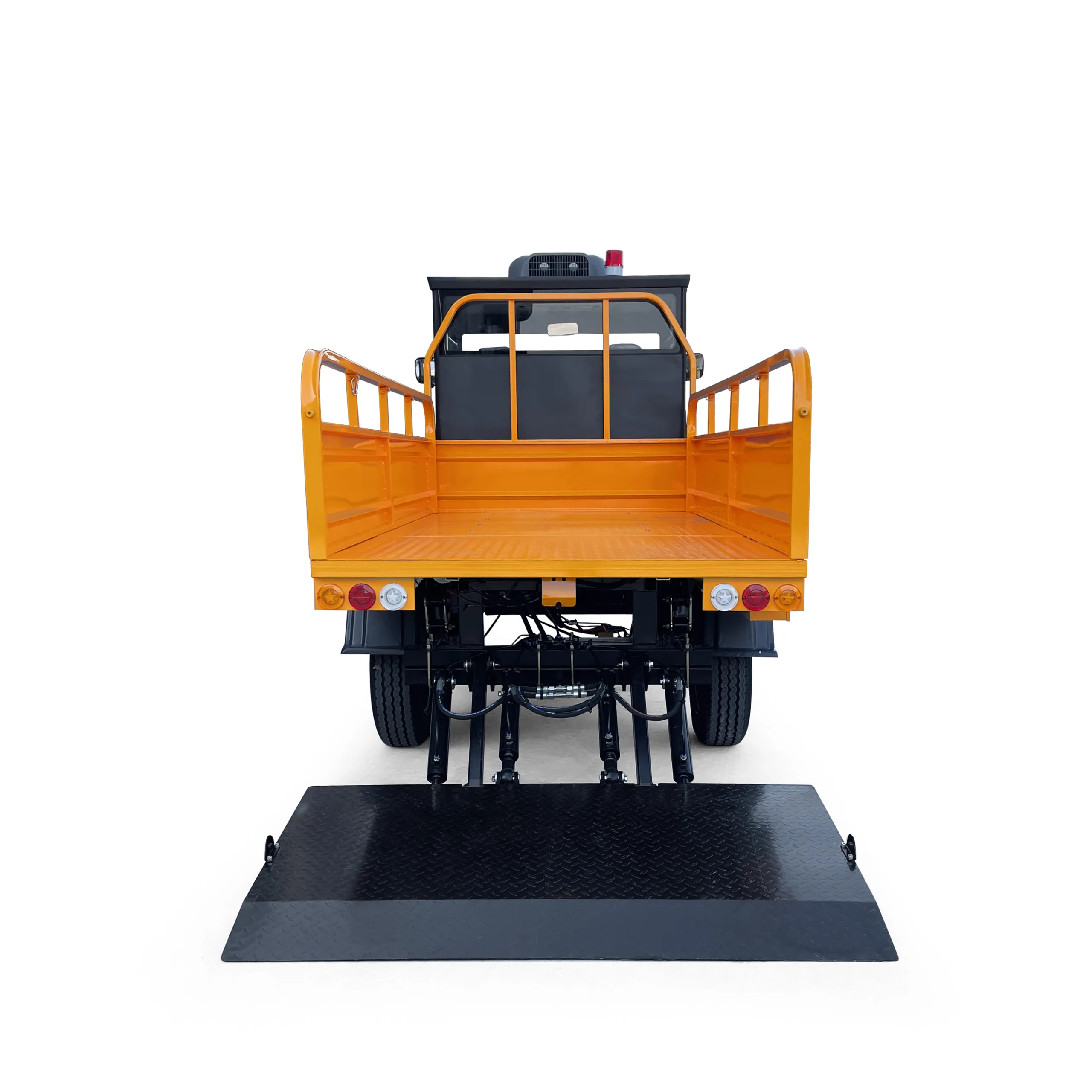

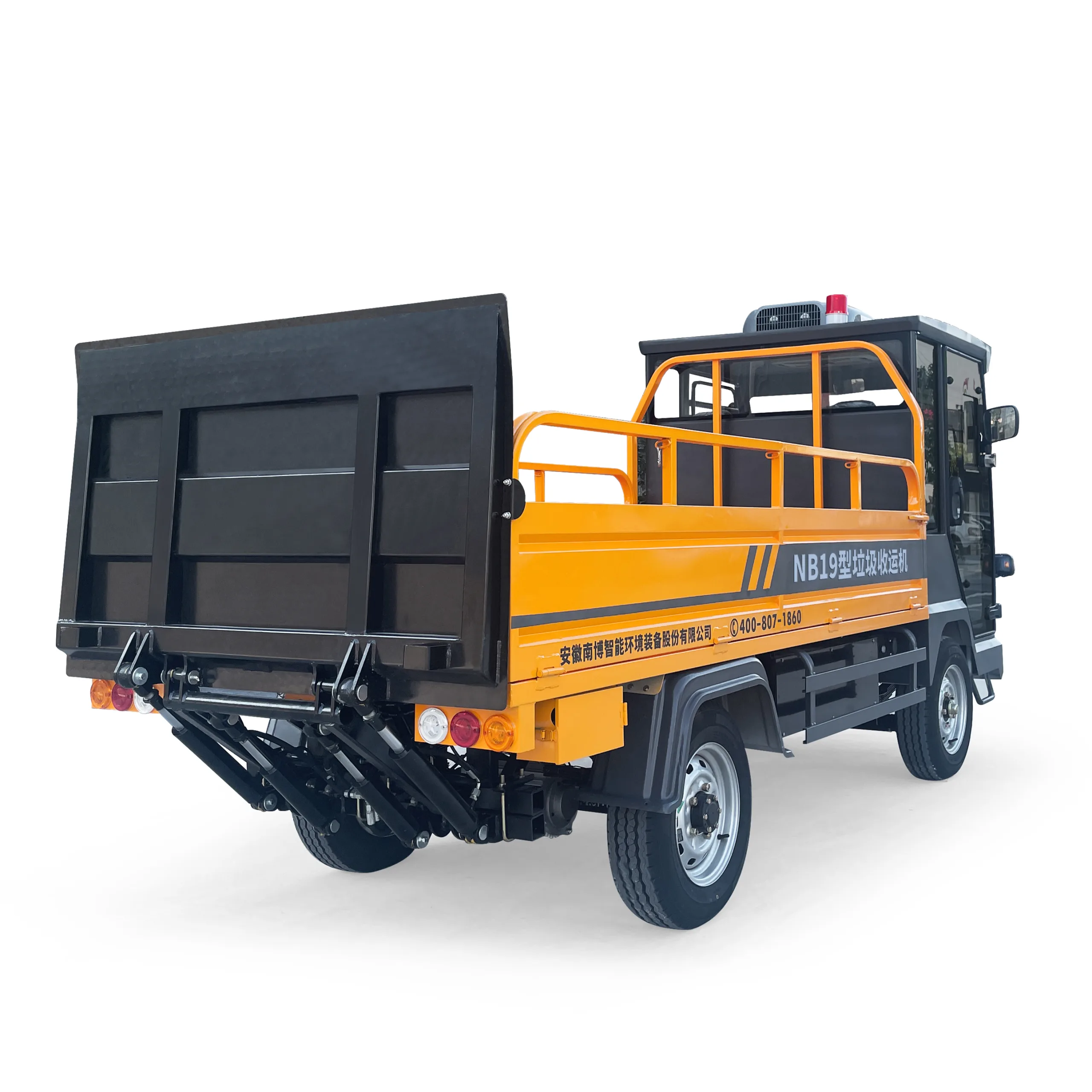

Hydraulic Bin-Lifting Tailgate
The hydraulic tailgate lifts both full and empty waste bins, reducing manual handling and operator workload during loading and unloading.
Dual LCD Display
Connected driving and infotainment displays provide clear vehicle information through large, high-definition LCD screens for a more convenient driving experience.
Reversing Camera
A rear-view camera improves visibility behind the vehicle, reduces blind spots, and supports safer reversing in confined working areas.
Eight-Bin Transport Capacity
The electric waste collection vehicle can transport up to eight 240 L waste bins per trip, reducing repeated journeys and improving collection efficiency.
High-Power Brushless DC Motor
A high-performance brushless DC motor delivers strong and stable power for everyday driving and climbing operations.
Radial Tubeless Tires
Four radial tubeless tires provide dependable durability, stable handling, and a long service life under regular sanitation operations.
Parameter
Parameter
NB19
NB20
Drive Motor Power
7,500 W
7,500 W
Maximum Travel Speed
40 km/h
40 km/h
Waste Bin Capacity
8 × 240 L bins
10 × 240 L bins
Turning Radius
4,200 mm
4,600 mm
Gradeability
≤25%
≤25%
Driving Range
100 km
100 km
Drive System
Rear-Axle Drive
Rear-Axle Drive
Power Source
72 V Maintenance-Free Lead-Acid Battery Pack
72 V Maintenance-Free Lead-Acid Battery Pack
Maximum Gross Vehicle Weight
2,400 kg
2,600 kg
Net Weight
1,400 kg
1,580 kg
Tailgate Lifting Time
Raise: 4–5 s; Lower: 7–9 s
Raise: 4–5 s; Lower: 7–9 s
Tailgate Tilting Time
Tilt: 4–5 s; Return: 7–9 s
Tilt: 4–5 s; Return: 7–9 s
Dimensions (L × W × H)
4,540 × 1,460 × 2,050 mm
5,140 × 1,460 × 2,050 mm
