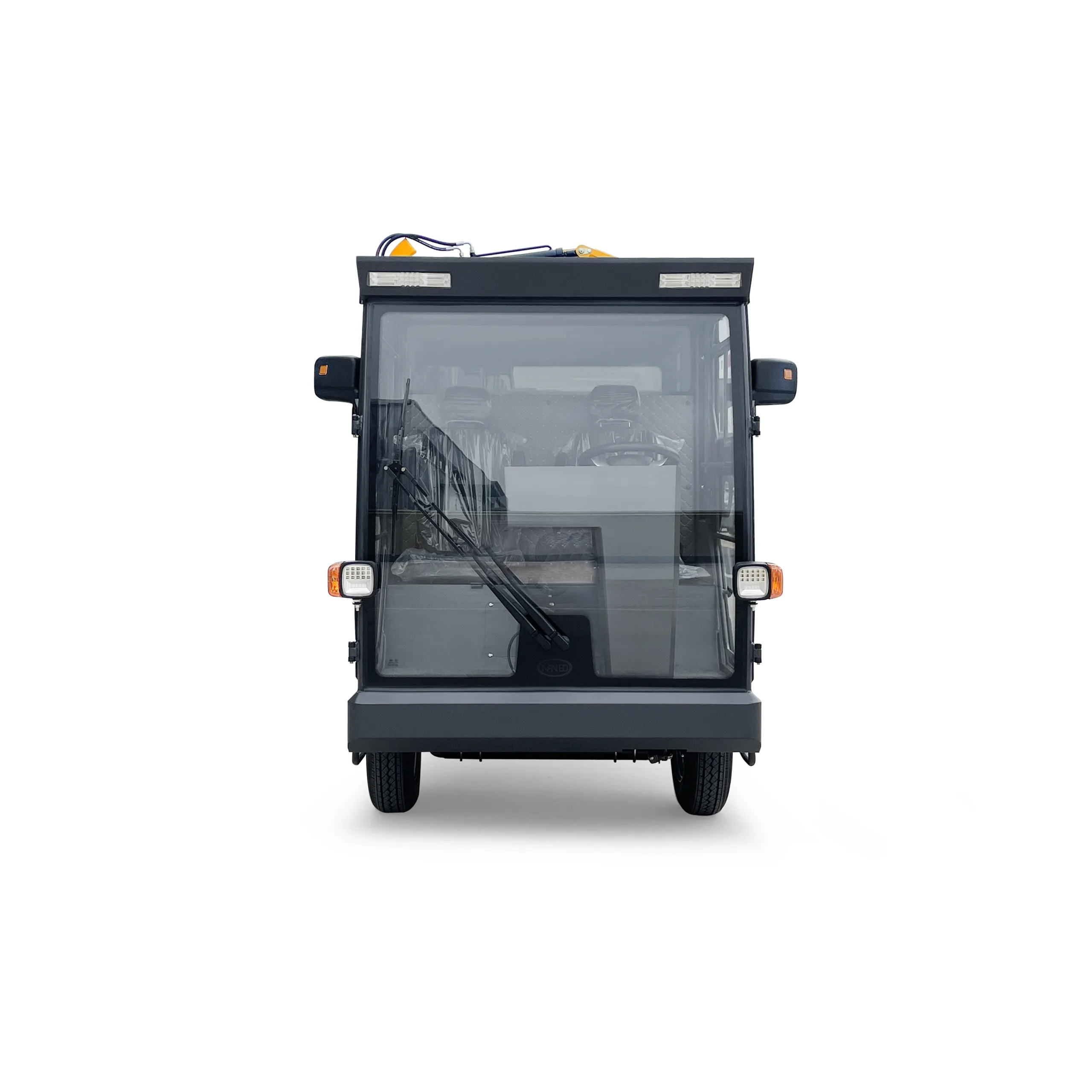

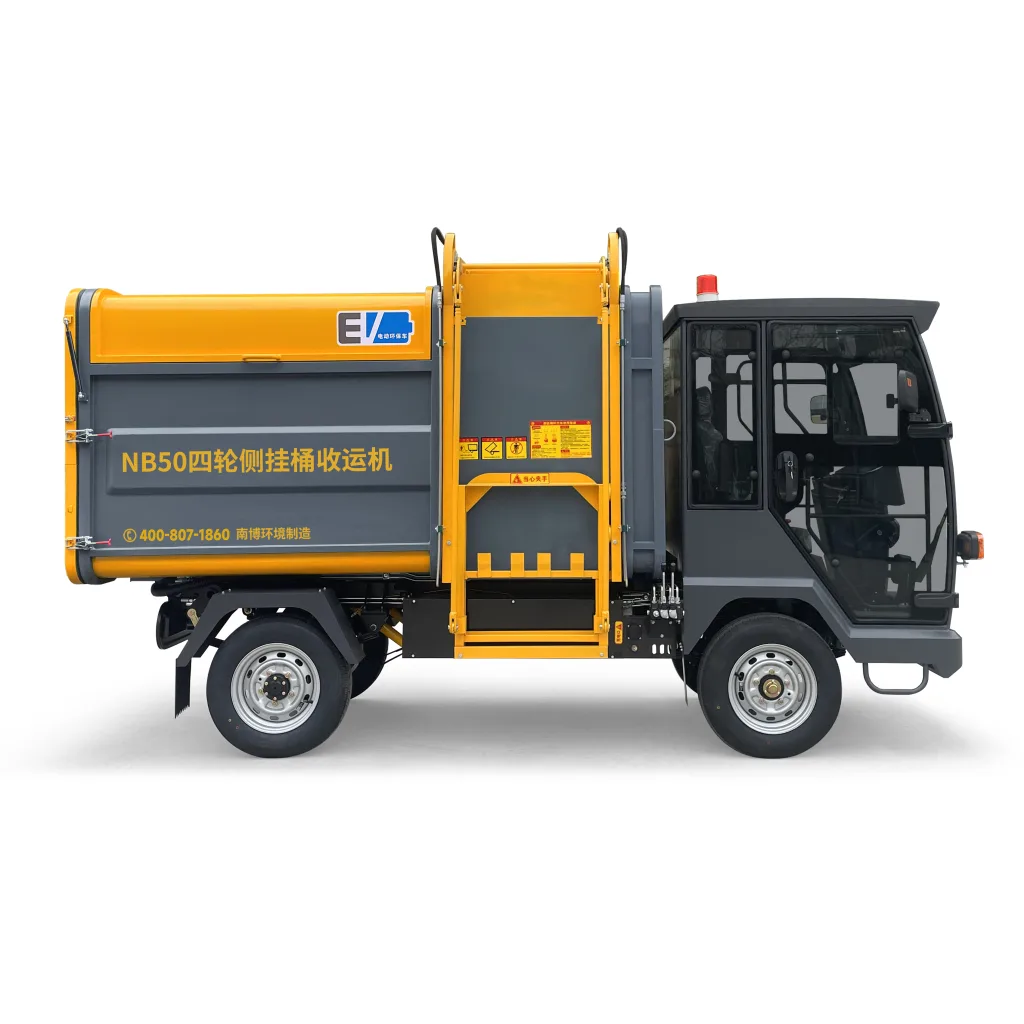

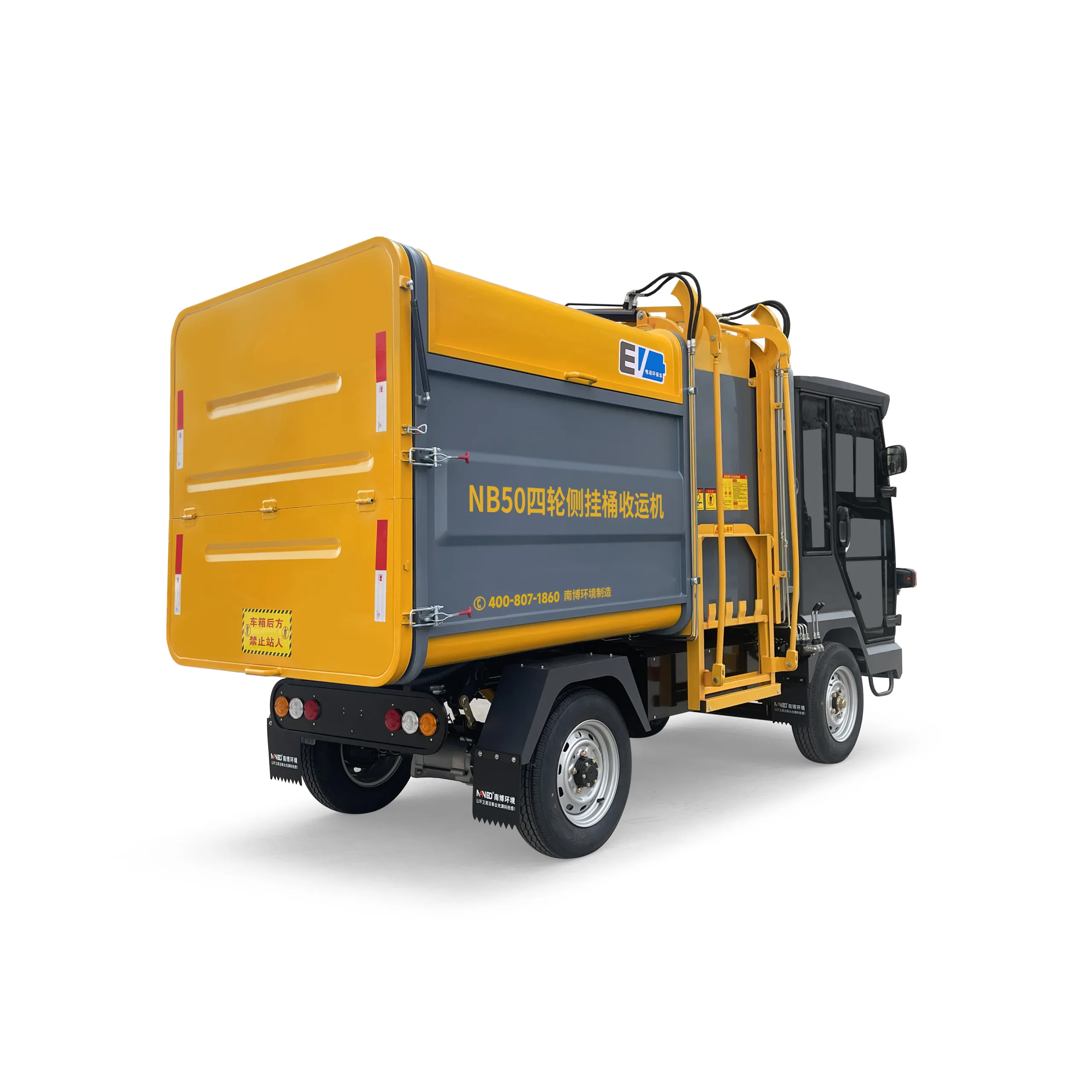

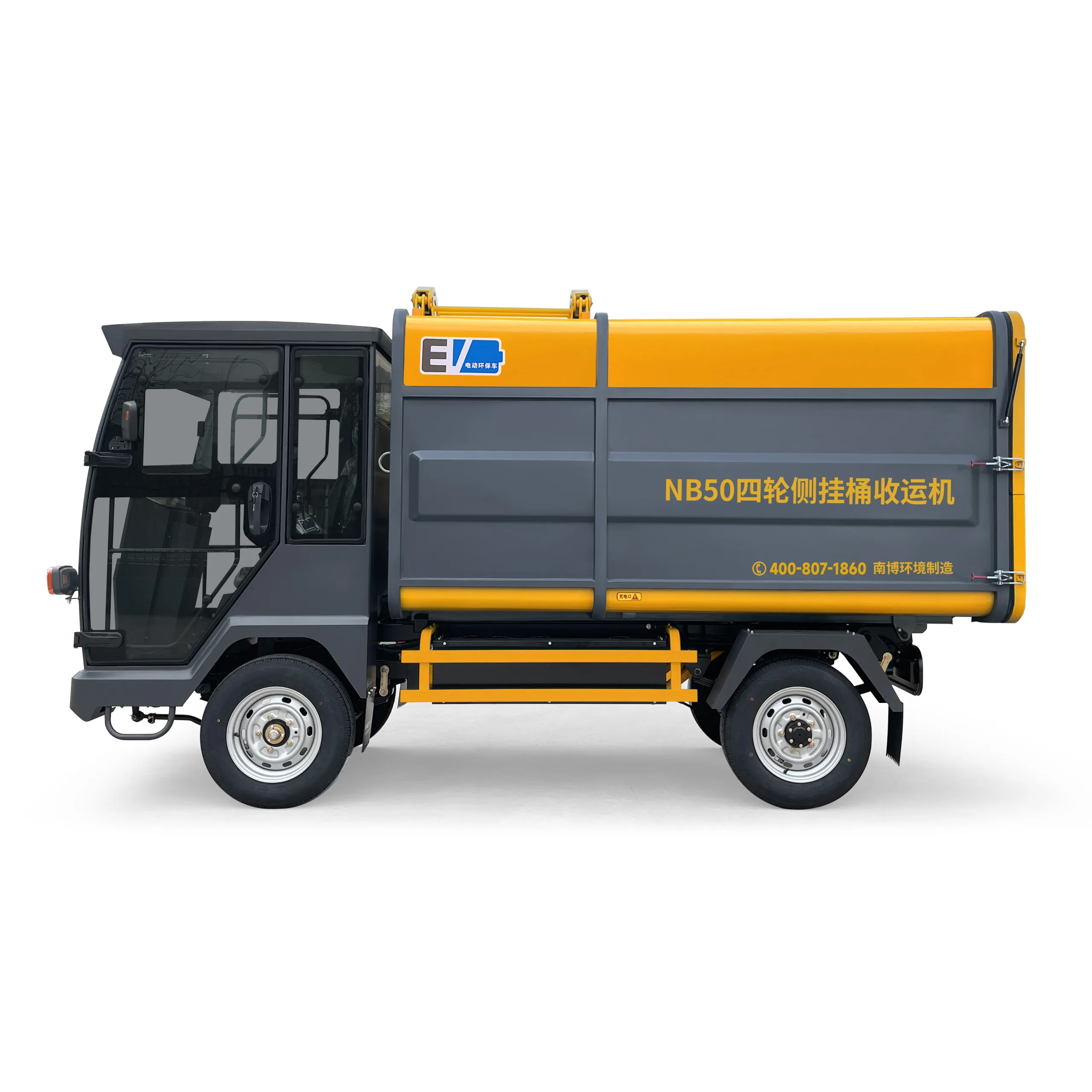

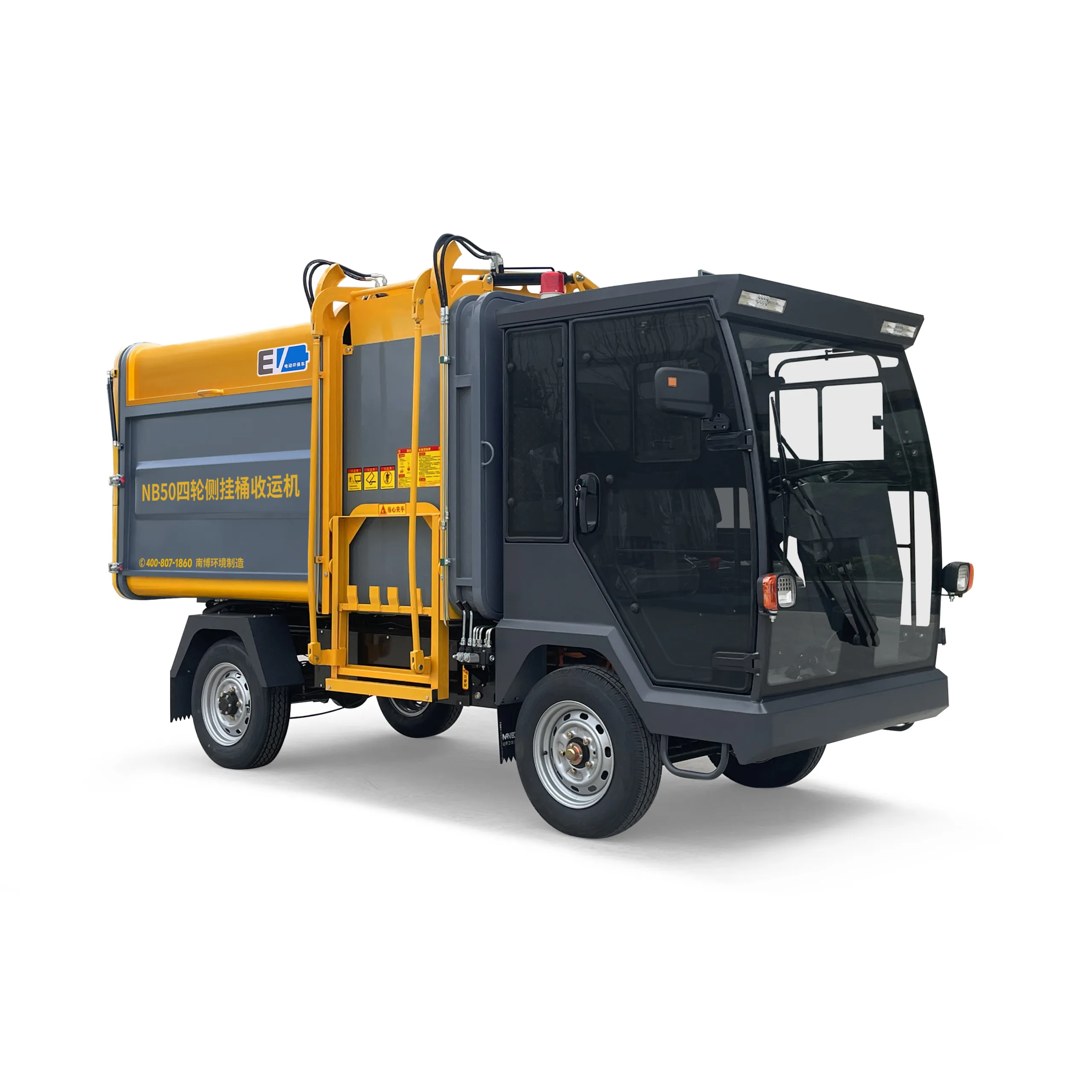

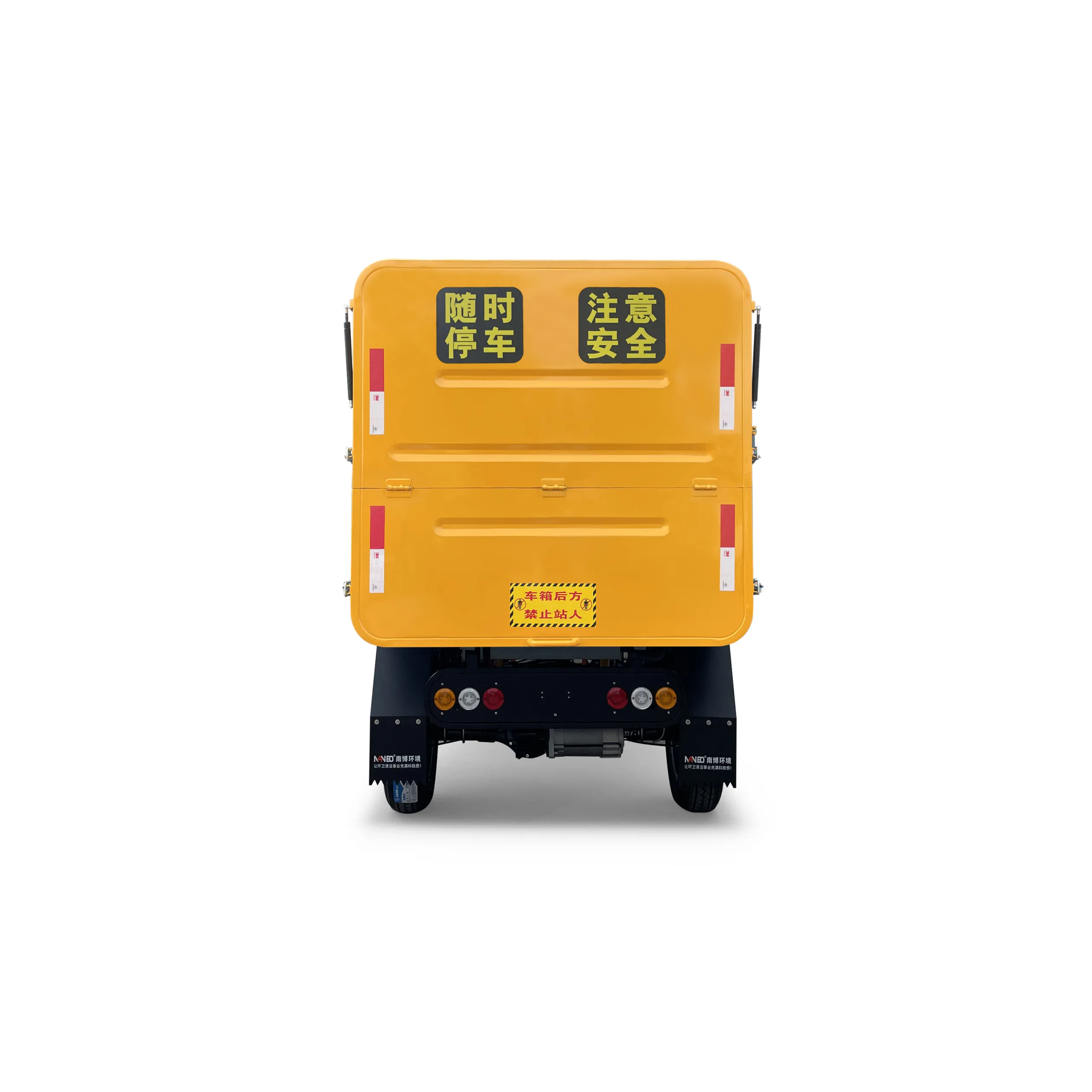

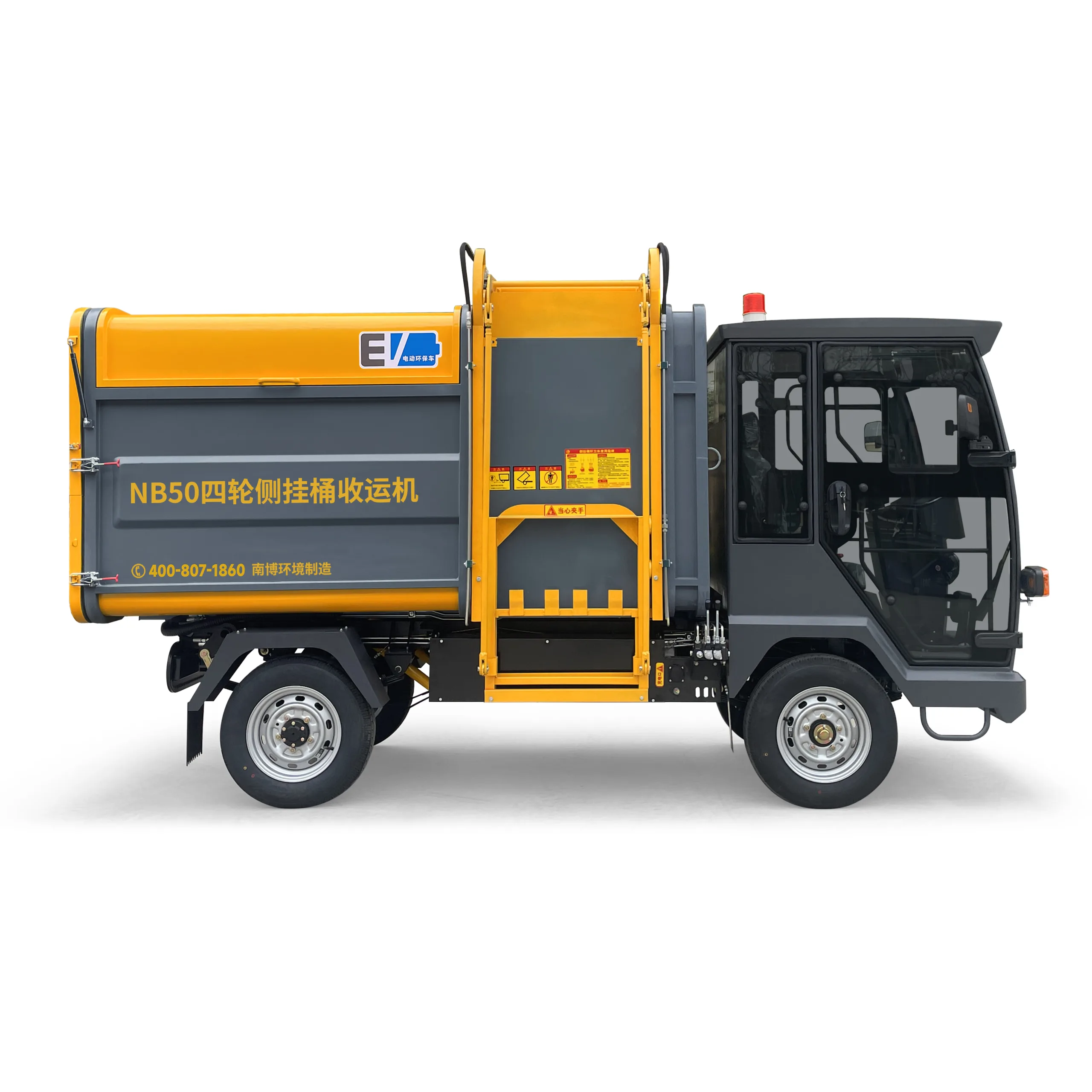

NB50 Four-Wheel Side-Loading Bin Collection Vehicle
Product Overview
The Nanbo NB50 four-wheel side-loading bin collection vehicle is a fully automated, mechanized waste collection truck. Featuring a compact size, short wheelbase, and high maneuverability, it requires only one operator, significantly reducing labor costs. It enables fully sealed collection and transport of bagged waste, preventing secondary pollution during transit. It offers convenient, flexible operation with the ability to stop and start as needed.
It is suitable for waste collection in various settings, including urban streets, stations, airports, terminals, factories, schools, hospitals, public squares, residential alleys, and sidewalks.
NB50 Four-Wheel Side-Loading Bin Collection Vehicle
The Nanbo NB50 four-wheel side-loading bin collection vehicle is a fully automated, mechanized waste collection truck. Featuring a compact size, short wheelbase, and high maneuverability, it requires only one operator, significantly reducing labor costs. It enables fully sealed collection and transport of bagged waste, preventing secondary pollution during transit. It offers convenient, flexible operation with the ability to stop and start as needed.
It is suitable for waste collection in various settings, including urban streets, stations, airports, terminals, factories, schools, hospitals, public squares, residential alleys, and sidewalks.
Key Features of the NB50 Four-Wheel Side-Loading Bin Collection Vehicle
Unique Features of the Electric Garbage Collection Vehicle
High-Power Rear-Axle Drive
The high-power rear drive axle provides strong traction and climbing performance, allowing the electric garbage collection vehicle to operate across various road conditions.
Fully Enclosed Waste Container
The waste container uses integrated stamping and sealed welding to reduce leakage and help prevent secondary pollution during waste collection and transportation.
Automatic Bin-Lifting and Tipping System
A side-loading opening and automated lifting arm enable convenient bin handling and tipping, reducing manual labor and improving waste collection efficiency.
Compact and Maneuverable Design
The short wheelbase provides a tight turning radius and flexible maneuverability. One operator can manage frequent stopping, loading, and driving in narrow streets and confined areas.
Panoramic Aluminum Alloy Cab
The lightweight aluminum alloy cab provides a wide field of view. An independently adjustable seat improves operator comfort during extended collection shifts.
Corrosion-Resistant Surface Treatment
The waste container features a high-temperature baked coating, while the chassis and bin-lifting mechanism are powder-coated to improve resistance to corrosion, weathering, and daily operational wear.
Vacuum-Assisted Hydraulic Brakes
Vacuum-assisted hydraulic drum brakes provide responsive and stable braking, supporting safer operation during municipal waste collection and transportation.
Parameter
Parameter
Specification
Drive Motor Power
5,000 W (Higher-Power Option Available)
Maximum Gross Vehicle Weight
1,650 kg
Maximum Travel Speed
30 km/h
Wheelbase
2,360 mm
Gradeability
≤20%
Power Source
72 V Maintenance-Free Lead-Acid Battery Pack
Drive System
Rear-Axle Drive
Braking System
Vacuum-Assisted Hydraulic Drum Brakes
Seating Capacity
2 Persons
Waste Container Dimensions (L × W × H)
2,600 × 1,400 × 1,350 mm
Waste Container Material
Optional 304 Stainless Steel
Vehicle Dimensions (L × W × H)
4,100 × 1,600 × 2,130 mm
