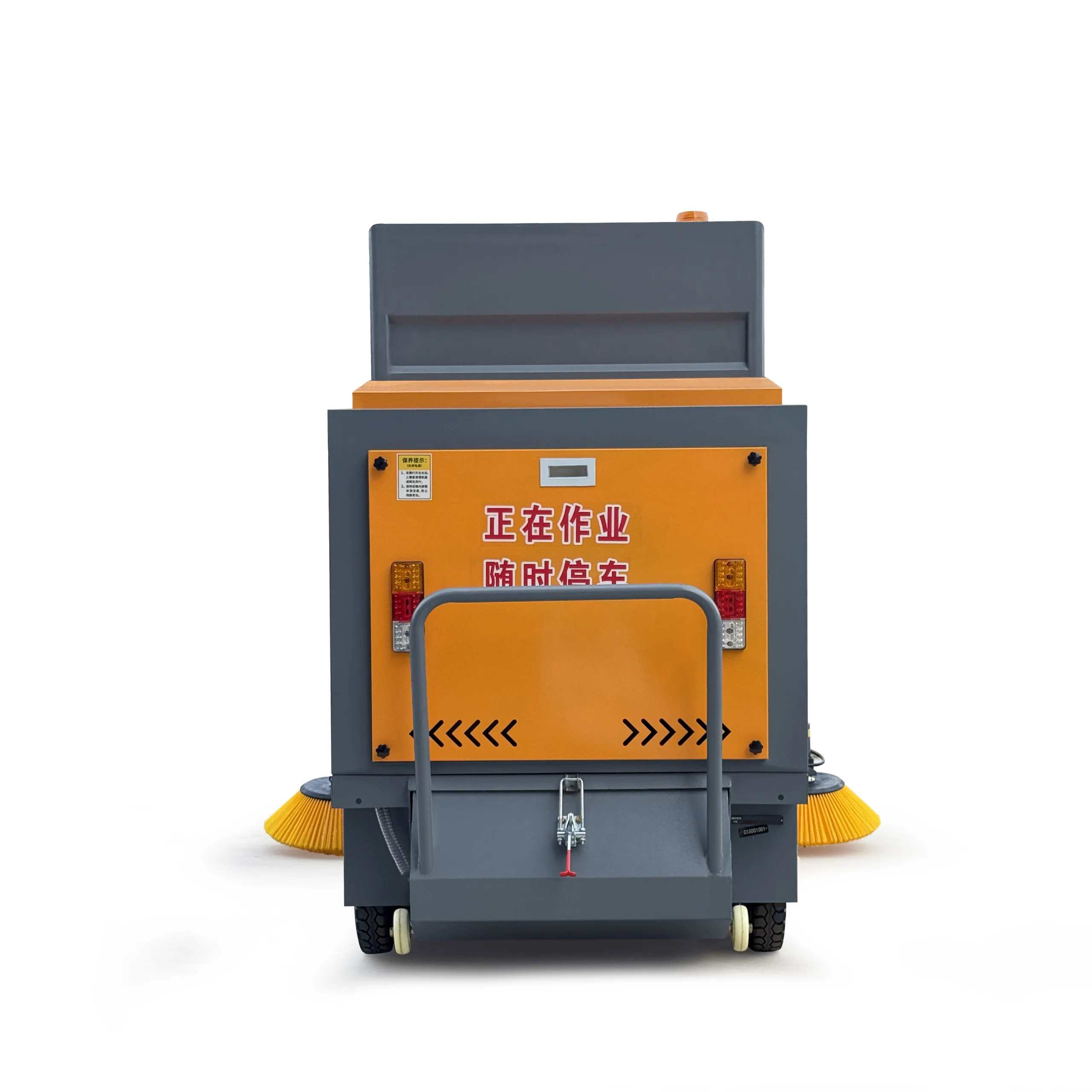

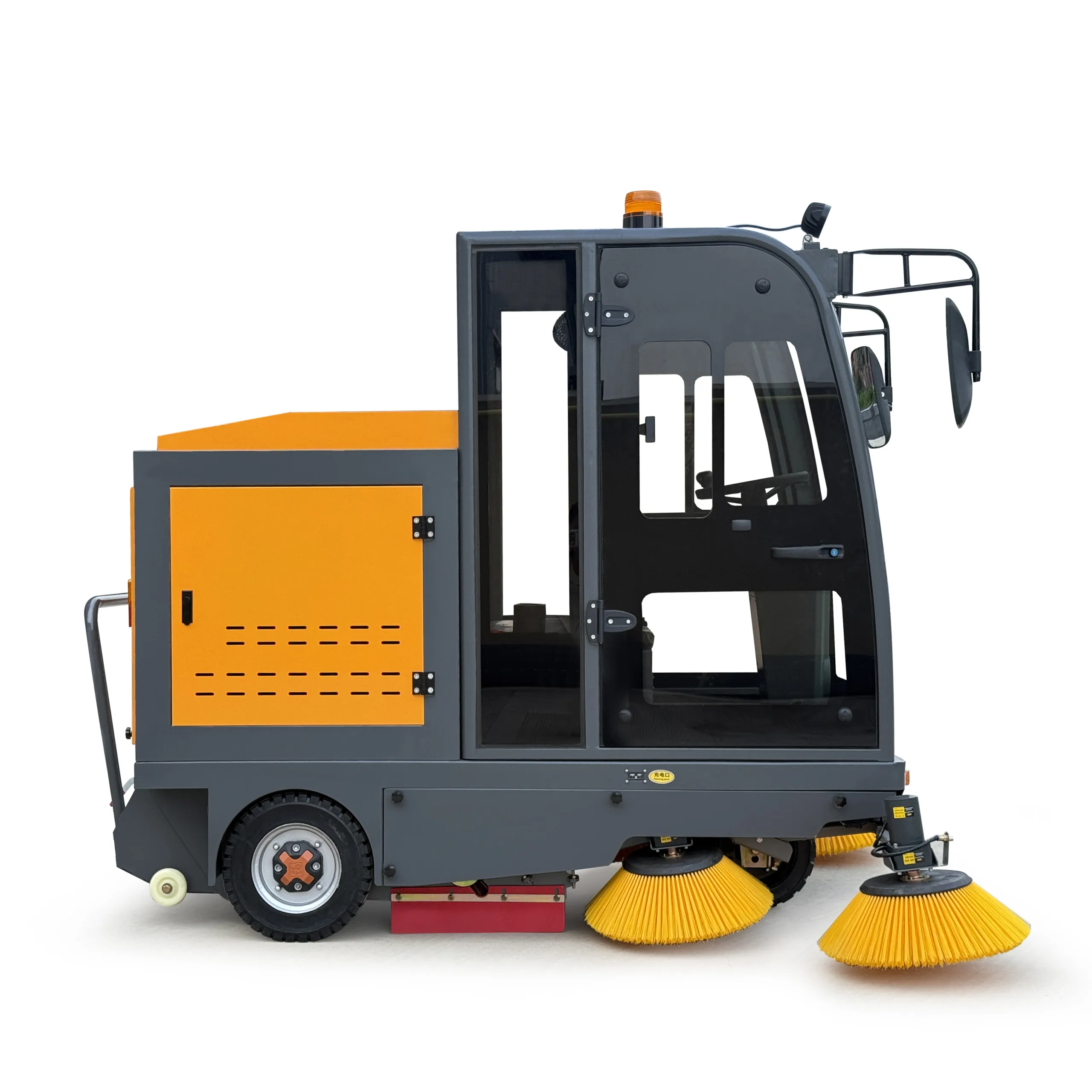

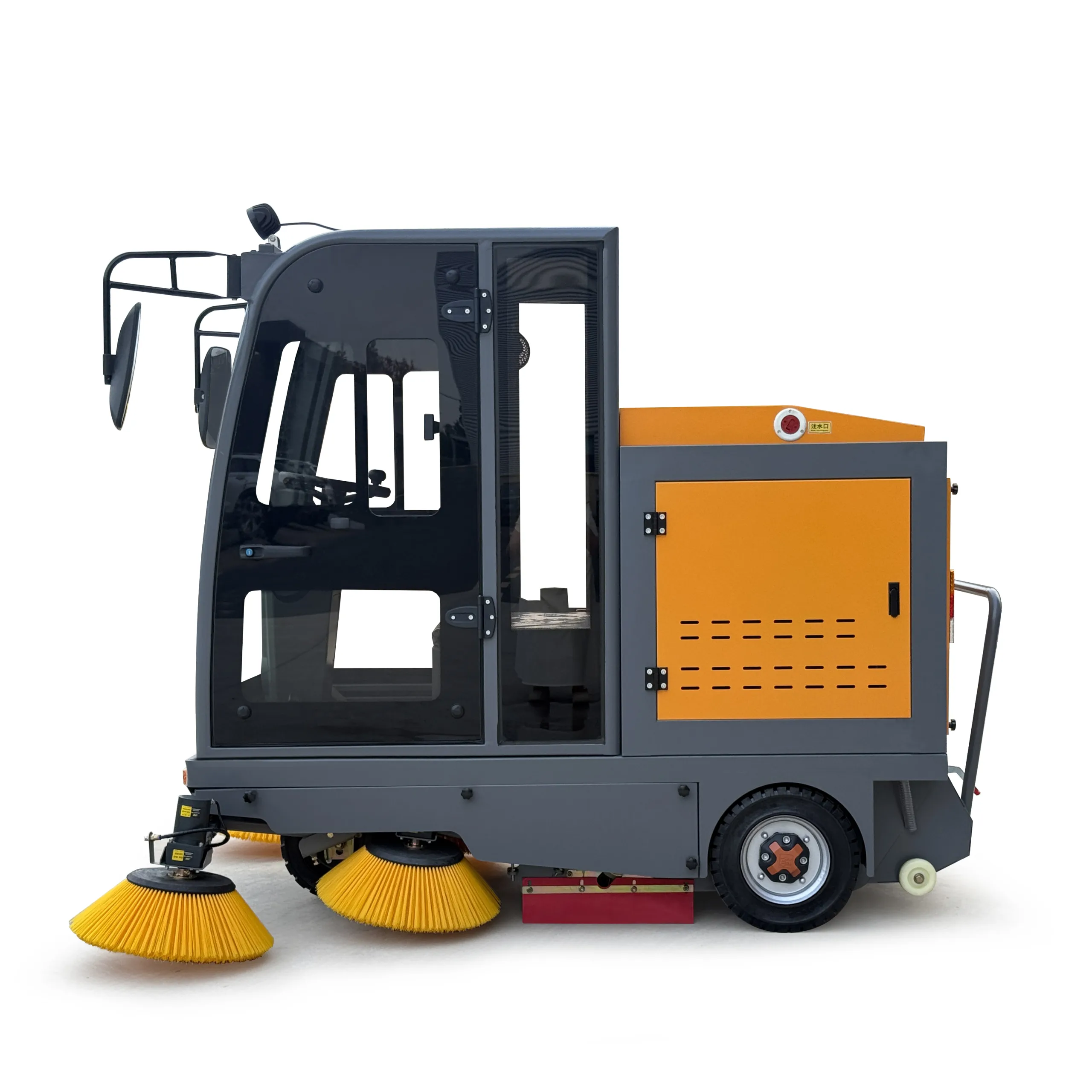

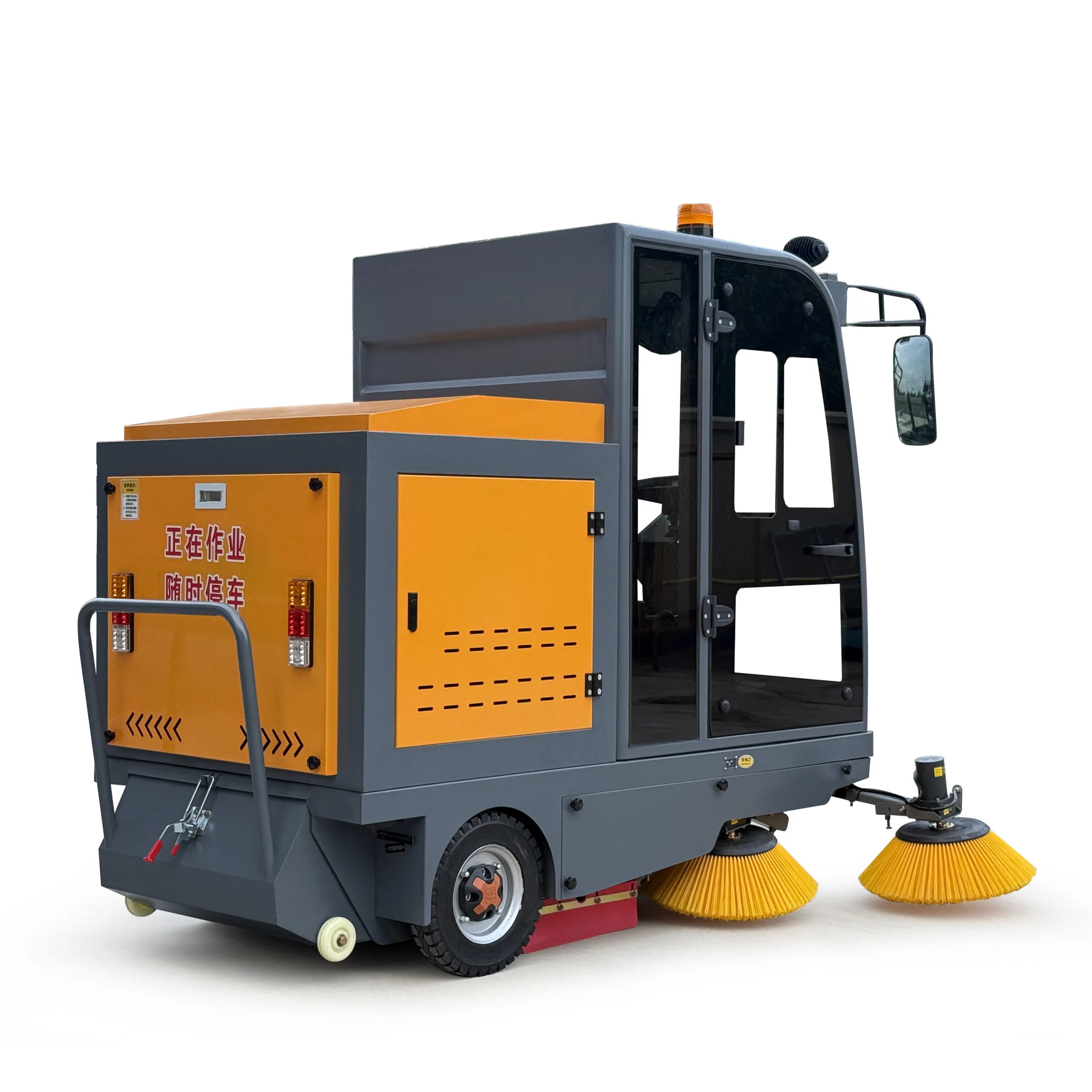

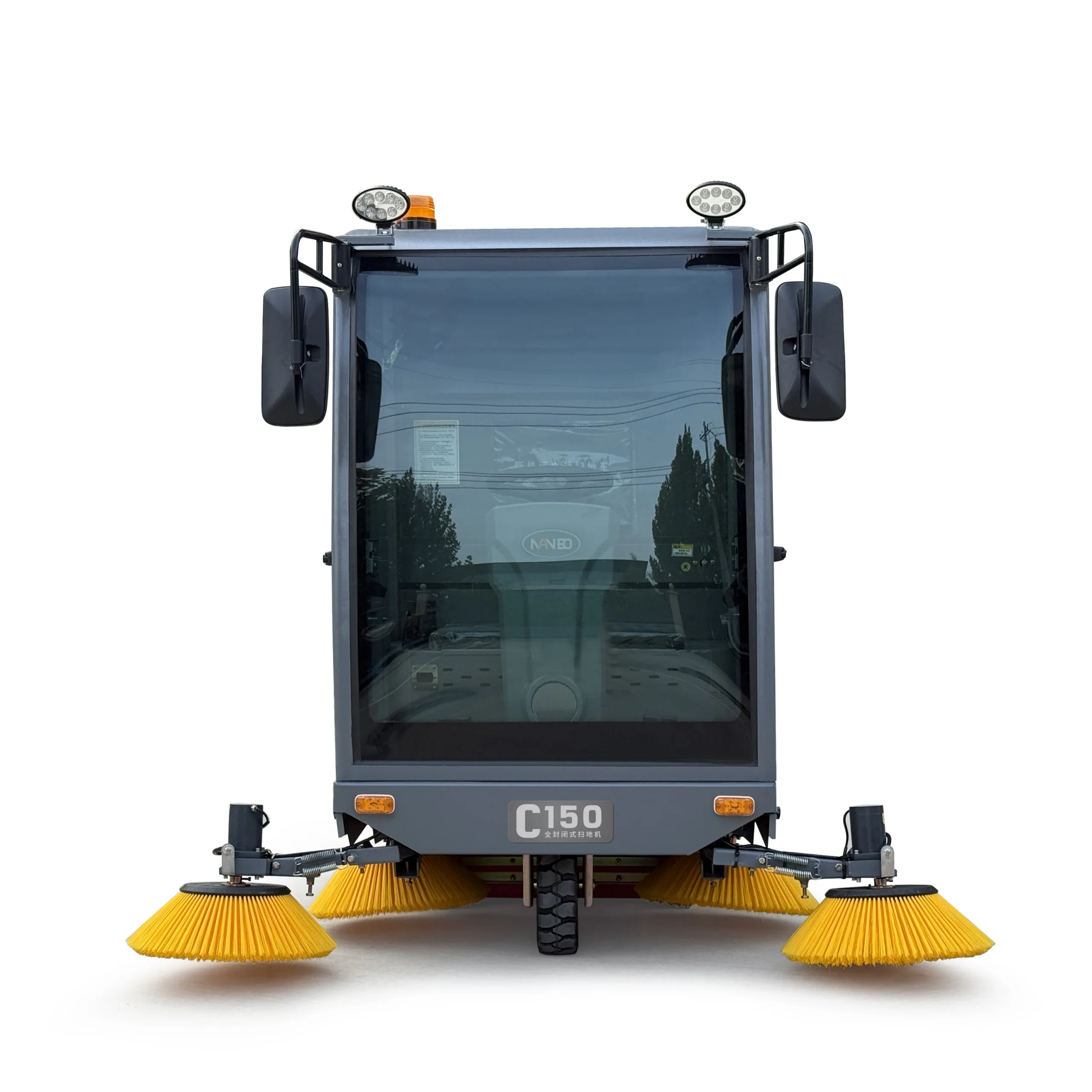

The Nanbo C150 is a large, fully enclosed, ride-on sweeper that integrates sweeping and vacuuming functions. It features a powerful dual-suction dust collection system and a high-capacity, rotomolded water tank with a spray system for dust suppression, effectively preventing fine dust from becoming airborne again. Capable of collecting debris ranging from large items like beverage bottles and cigarette packs to small ones such as leaves, pebbles, and cigarette butts, it leaves surfaces spotless wherever it operates. It is suitable for use in areas such as city streets, educational campuses, parks, public squares, and villa communities.
The Nanbo C150 is a large, fully enclosed, ride-on sweeper that integrates sweeping and vacuuming functions. It features a powerful dual-suction dust collection system and a high-capacity, rotomolded water tank with a spray system for dust suppression, effectively preventing fine dust from becoming airborne again. Capable of collecting debris ranging from large items like beverage bottles and cigarette packs to small ones such as leaves, pebbles, and cigarette butts, it leaves surfaces spotless wherever it operates. It is suitable for use in areas such as city streets, educational campuses, parks, public squares, and villa communities.
Key Features of the C150 Fully Enclosed Sweeper
Dual-Cartridge Dust Filtration
The dual-cartridge filtration system captures dust during sweeping. An electric filter-shaking mechanism helps clear accumulated dust from the cartridges.
Rear Axle Drive with Stepless Speed Control
A high-power AC rear axle drive provides stepless speed control for smooth operation and helps the sweeper handle inclines.
Hydraulic Disc Brakes
Automotive-style hydraulic disc brakes provide responsive braking during operation.
Rare-Earth Main Brush Motor
The rare-earth main brush motor supports precise speed control and stable brush operation, with capacity to handle increased loads.
Dual Suction Fans
Two suction fans work with the dual-cartridge filtration system to collect airborne dust during sweeping.
Fully Enclosed Cabin
The cabin has tempered glass on three sides and a sealed enclosure to help reduce the operator’s exposure to dust.
Three-Side Maintenance Access
Access panels on three sides make it easier to inspect and service key components
Parameter
Specification
Value
Maximum sweeping productivity
12,000 m²/h
Maximum sweeping width
2,000 mm
Maximum travel speed
11 km/h
Operating time
4–5 hours
Water tank capacity
50 L
Waste hopper capacity
150 L
Power supply
48 V
Number of side brushes
4
Main and side brush lift
Automatic
Drive system
Rear drive
Braking system
Disc brake and parking brake
Turning radius
1,500 mm
Gradeability
≤35%
Machine weight
850 kg
Dimensions (L × W × H)
2,180 × 1,100 × 1,950 mm
Technologies
Integrated Cleaning Systems
Practical cleaning technologies, reliable power systems and user-friendly controls configured for professional cleaning applications.
Modular Function Design
Sweeping, scrubbing, water recovery, dust suppression, high-pressure washing and waste collection — each tuned to the environment and surface.
Stability & Safety
Engineered for cleaning efficiency, operational stability, operator safety and convenient maintenance with accessible service components.
Pre-delivery Testing
Every machine undergoes functional inspection covering cleaning system, water supply, suction, electrics, driving and safety devices.
Custom & OEM/ODM
Optional configurations available for distributors and contractors — tailored to area, surface, waste type, working time and local requirements.
Anhui Nanbo Intelligent Environmental Equipment Co., Ltd. — founded in 2015, headquartered in Wuhu. We are a national High-Tech Enterprise with 80+ patents and ISO 9001 certification, focused on the R&D and manufacturing of floor scrubbers, floor sweepers, high-pressure washers and new-energy sanitation vehicles.
Three main factors to consider: cleaning area, floor material and dominant soil type. Hand-push scrubbers are typically used for areas under 3,000 m², while ride-on versions suit 5,000 m² and above. Sweepers handle dry dust and debris; scrubbers handle oil and water spills — many facilities run both for the best result.
Sweepers use dry technology (sweep + suction) to remove dust, chips and loose debris without water. Scrubbers use wet technology (spray + scrub + suction) with water and detergent to remove oil and liquid spills, leaving the floor dry immediately. They serve different purposes and are not substitutes.
Pricing varies significantly depending on model, configuration, battery type and quantity. As a source manufacturer, we offer competitive factory-direct pricing and can tailor packages to your project. Please contact us for a precise quotation based on your specific needs.
Lead-acid is the economical choice for single-shift (8-hour) operations. Lithium is recommended for double or triple shifts: it charges in 2–3 hours, lasts roughly 2,000 charge cycles and requires no maintenance over its lifetime.
