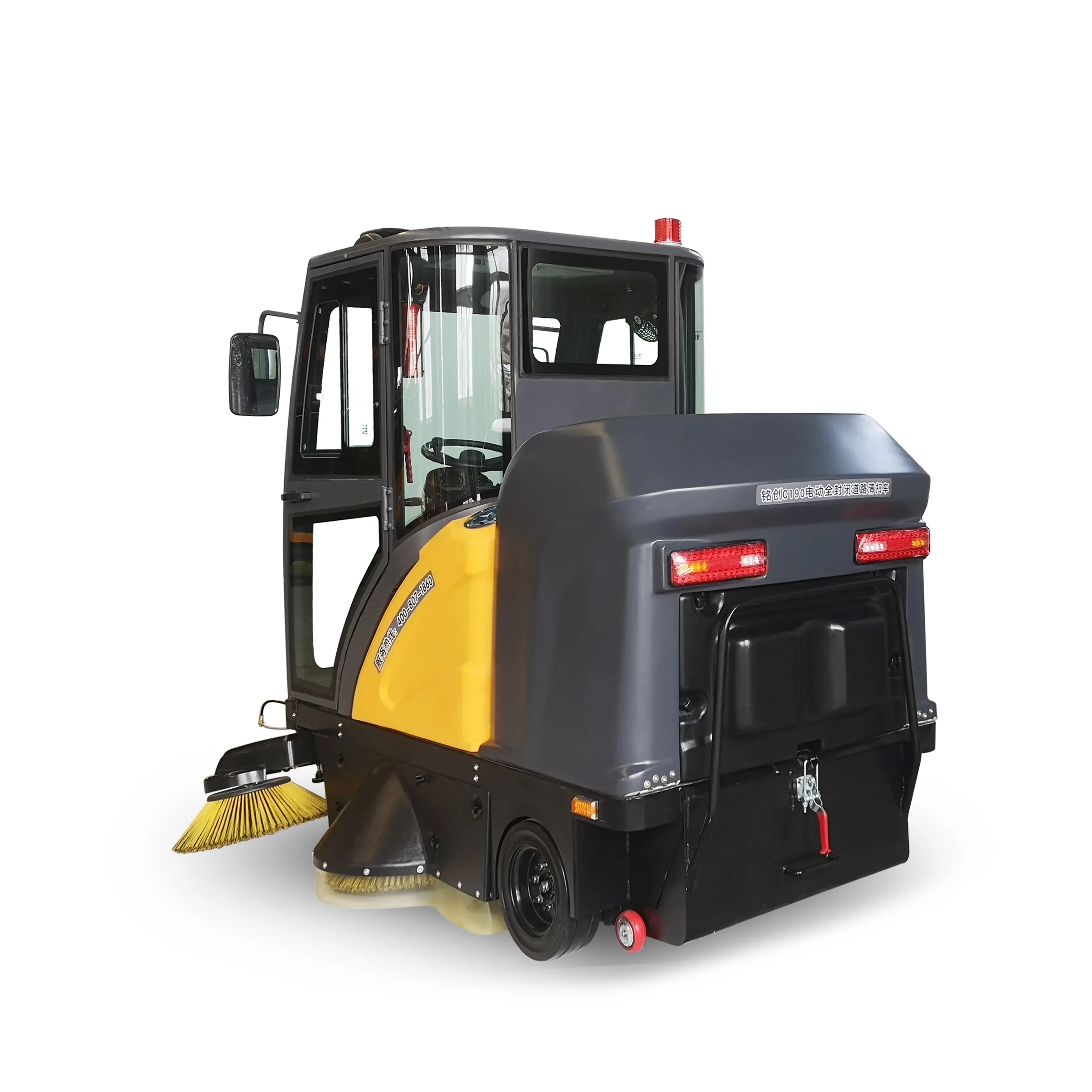

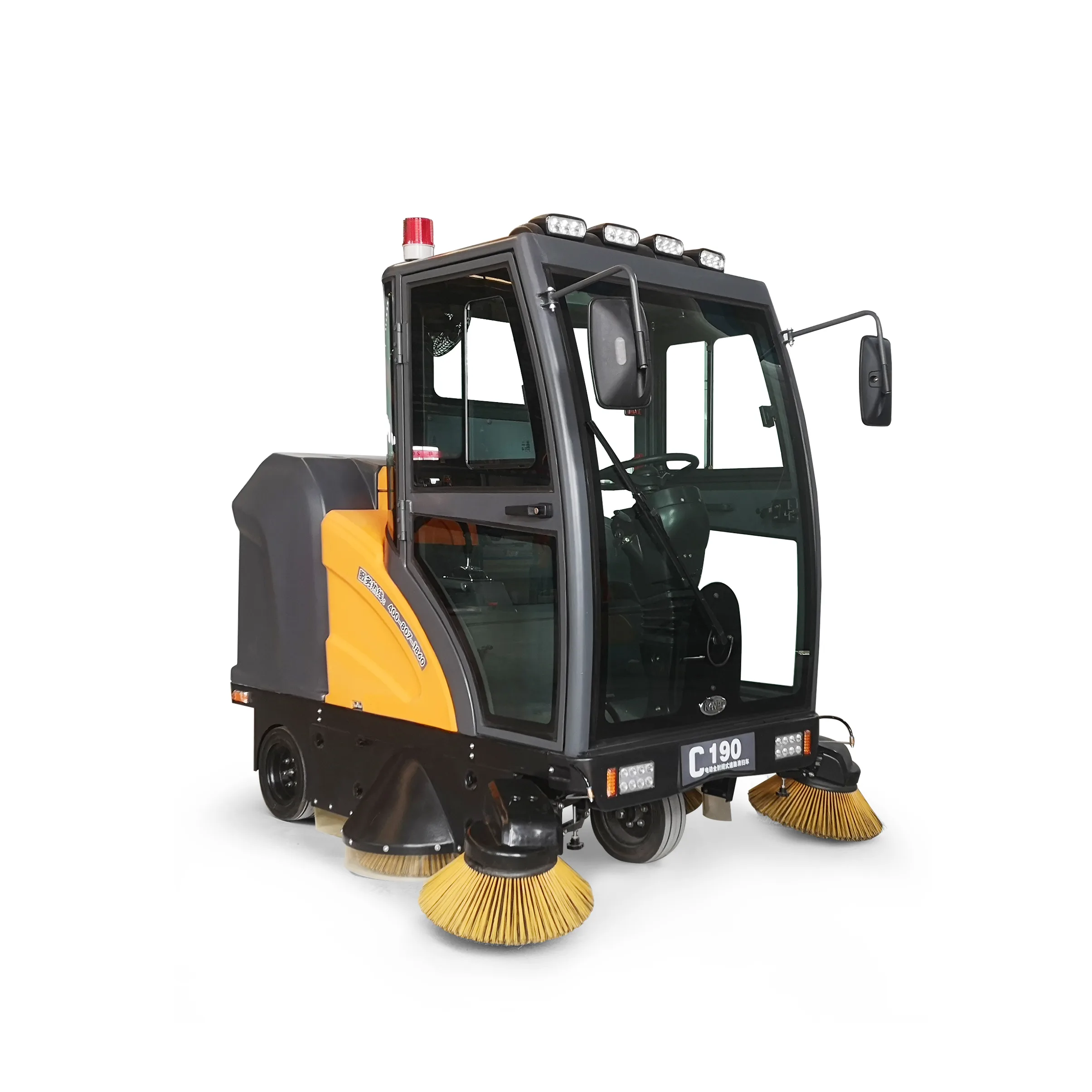

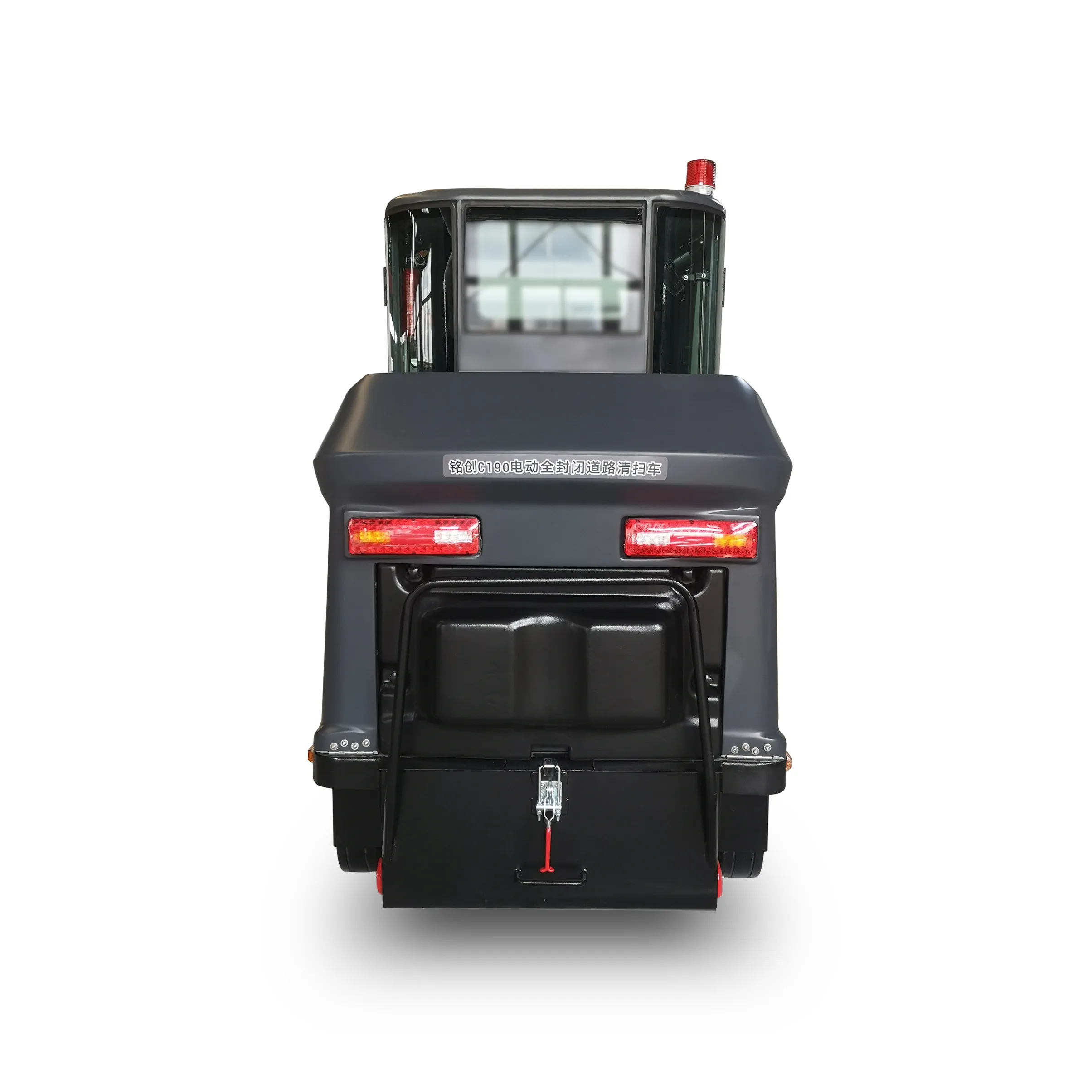

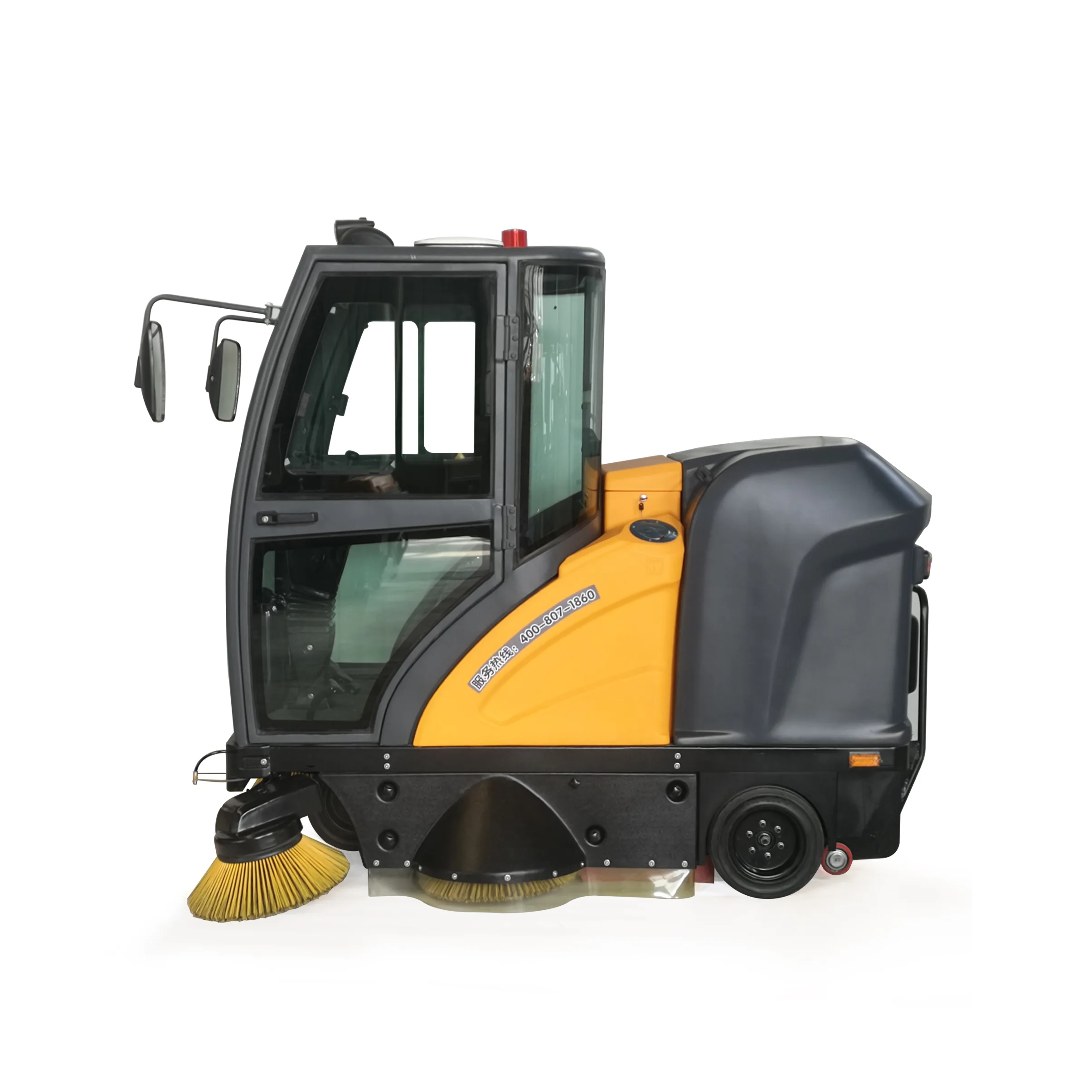

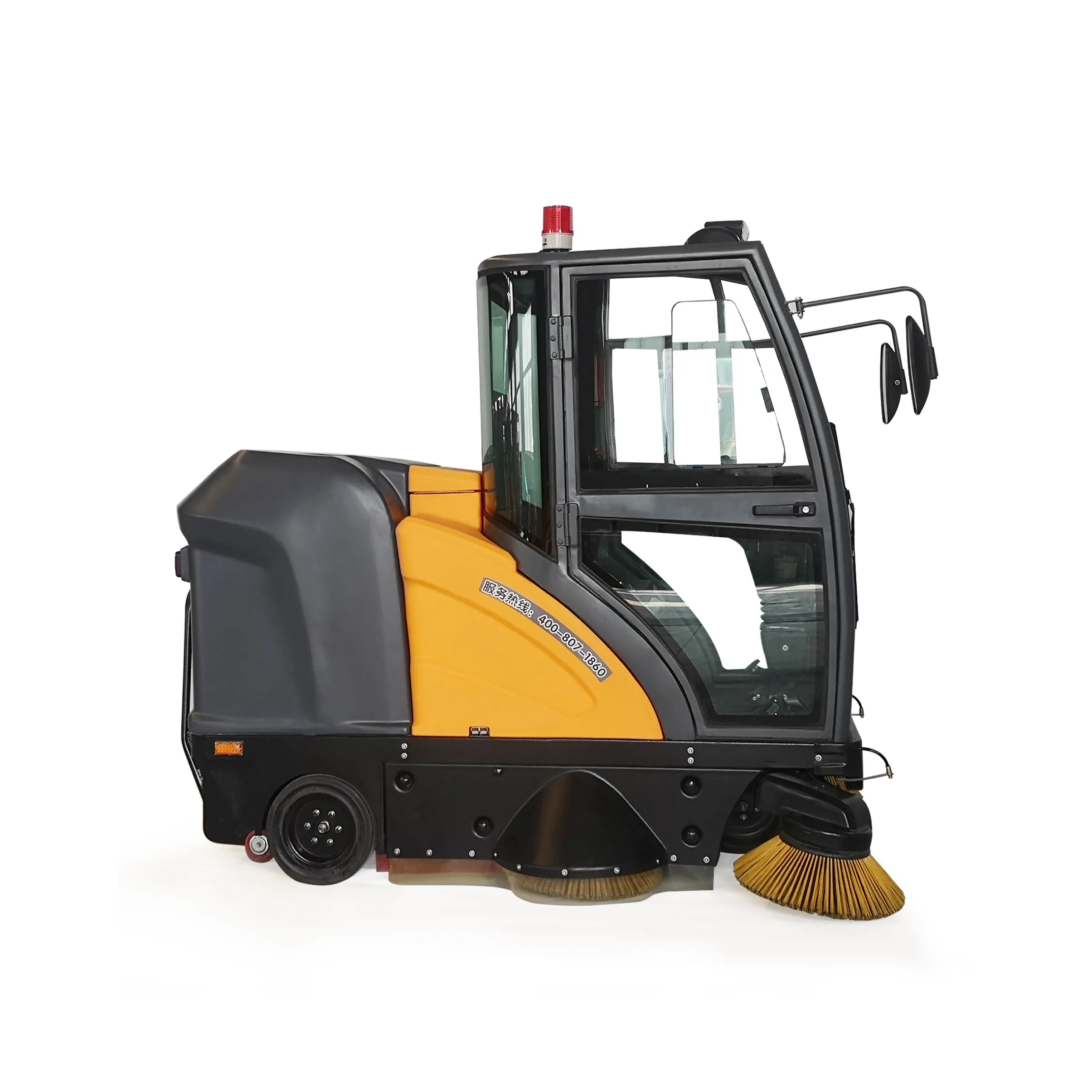

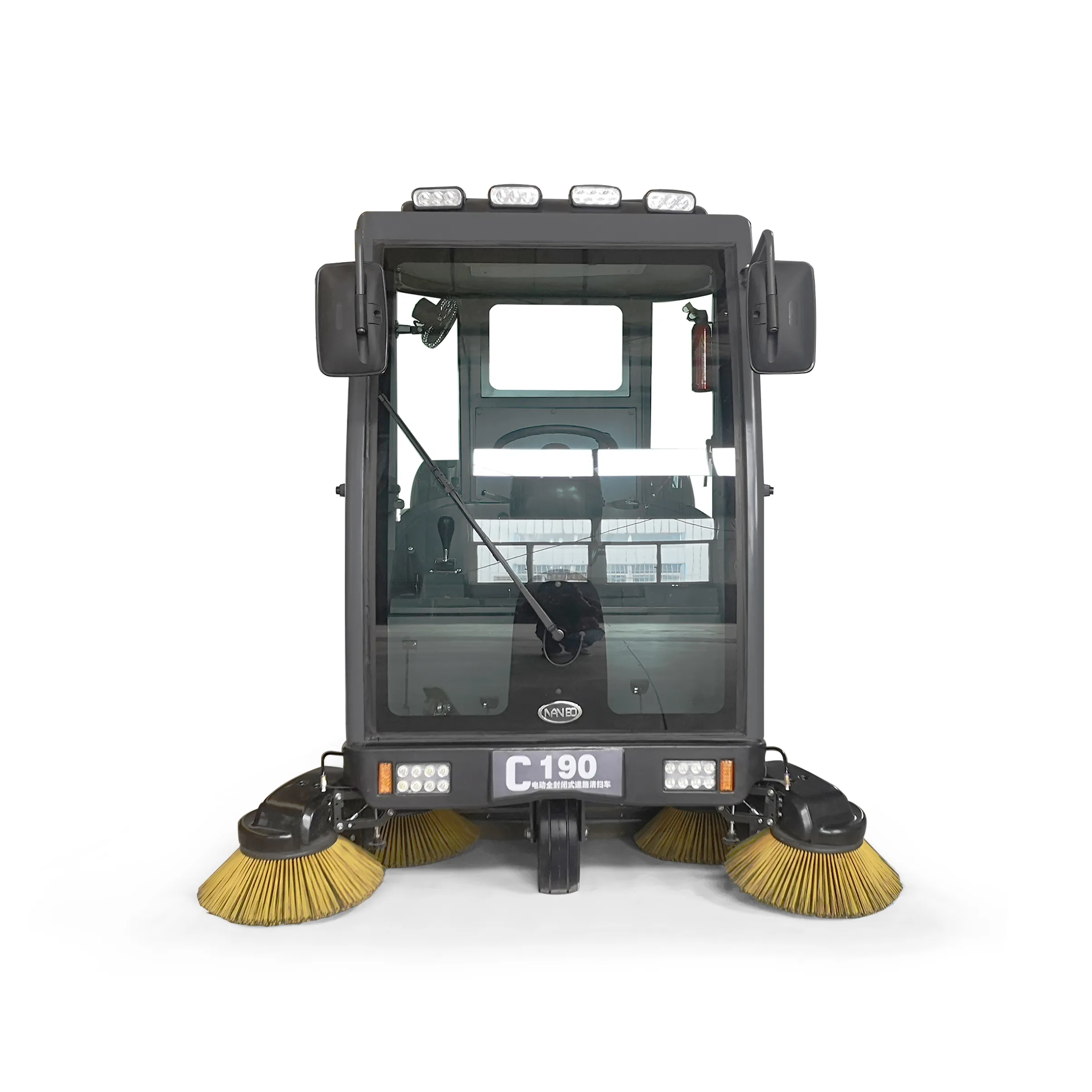

The Nanbo C190 is a large, fully enclosed, three-wheeled ride-on sweeper that integrates sweeping and vacuuming functions. It features a powerful dual-suction system and a high-capacity rotomolded water tank with a spray system for dust suppression, effectively preventing fine dust from becoming airborne again. Capable of collecting debris ranging from large items like beverage bottles and cigarette packs to small ones such as leaves, pebbles, and cigarette butts, it leaves surfaces spotless wherever it operates. It is suitable for use in municipal roads, factories, schools, parks, public squares, villa complexes, and lanes for both motor and non-motor vehicles.
The Nanbo C190 is a large, fully enclosed, three-wheeled ride-on sweeper that integrates sweeping and vacuuming functions. It features a powerful dual-suction system and a high-capacity rotomolded water tank with a spray system for dust suppression, effectively preventing fine dust from becoming airborne again. Capable of collecting debris ranging from large items like beverage bottles and cigarette packs to small ones such as leaves, pebbles, and cigarette butts, it leaves surfaces spotless wherever it operates. It is suitable for use in municipal roads, factories, schools, parks, public squares, villa complexes, and lanes for both motor and non-motor vehicles.
Key Features of the C190 Fully Enclosed Sweeper
Dual-Cartridge Dust Filtration
A dual-cartridge filtration system works with an electric filter-shaking mechanism to remove accumulated dust and maintain consistent filtration performance.
High-Power AC Drive System
A high-power AC rear axle drive and branded drive controller provide smooth, stepless speed adjustment and reliable climbing performance.
Geared Side Brush Motor
The horizontally mounted side brush motor uses a reduction-gear mechanism to deliver stable brush operation and dependable performance.
170 L Large-Capacity Water Tank
The durable 170 L rotomolded water tank supports extended dust-suppression spraying, reducing refill frequency during large-area sweeping operations.
Rare-Earth Main Brush Motor
The rare-earth main brush motor provides stable speed control, strong overload capacity and reliable operation under demanding working conditions.
Dual Suction Fans
Two suction fans work with the dual-cartridge filtration system to improve dust collection during sweeping, particularly in dusty industrial and outdoor environments.
Rear-Hinged Hood for Easy Maintenance
The rear-hinged hood provides convenient access to internal components, making routine inspection, cleaning and maintenance easier.
Fully Enclosed Operator Cab
The independent, fully enclosed cab features tempered glass on three sides and a sealed
Parameter
Specification
Value
Maximum sweeping productivity
13,500 m²/h
Maximum sweeping width
1,900 mm
Maximum travel speed
11 km/h
Operating time
4–5 hours
Water tank capacity
170 L
Waste hopper capacity
180 L
Power supply
48 V
Number of side brushes
4
Main and side brush lift
Automatic
Drive system
Rear drive
Braking system
Disc brake and parking brake
Turning radius
1,680 mm
Gradeability
≤35%
Machine weight
1,020 kg
Dimensions (L × W × H)
2,400 × 1,130 × 2,100 mm
Technologies
Integrated Cleaning Systems
Practical cleaning technologies, reliable power systems and user-friendly controls configured for professional cleaning applications.
Modular Function Design
Sweeping, scrubbing, water recovery, dust suppression, high-pressure washing and waste collection — each tuned to the environment and surface.
Stability & Safety
Engineered for cleaning efficiency, operational stability, operator safety and convenient maintenance with accessible service components.
Pre-delivery Testing
Every machine undergoes functional inspection covering cleaning system, water supply, suction, electrics, driving and safety devices.
Custom & OEM/ODM
Optional configurations available for distributors and contractors — tailored to area, surface, waste type, working time and local requirements.
Anhui Nanbo Intelligent Environmental Equipment Co., Ltd. — founded in 2015, headquartered in Wuhu. We are a national High-Tech Enterprise with 80+ patents and ISO 9001 certification, focused on the R&D and manufacturing of floor scrubbers, floor sweepers, high-pressure washers and new-energy sanitation vehicles.
Three main factors to consider: cleaning area, floor material and dominant soil type. Hand-push scrubbers are typically used for areas under 3,000 m², while ride-on versions suit 5,000 m² and above. Sweepers handle dry dust and debris; scrubbers handle oil and water spills — many facilities run both for the best result.
Sweepers use dry technology (sweep + suction) to remove dust, chips and loose debris without water. Scrubbers use wet technology (spray + scrub + suction) with water and detergent to remove oil and liquid spills, leaving the floor dry immediately. They serve different purposes and are not substitutes.
Pricing varies significantly depending on model, configuration, battery type and quantity. As a source manufacturer, we offer competitive factory-direct pricing and can tailor packages to your project. Please contact us for a precise quotation based on your specific needs.
Lead-acid is the economical choice for single-shift (8-hour) operations. Lithium is recommended for double or triple shifts: it charges in 2–3 hours, lasts roughly 2,000 charge cycles and requires no maintenance over its lifetime.
