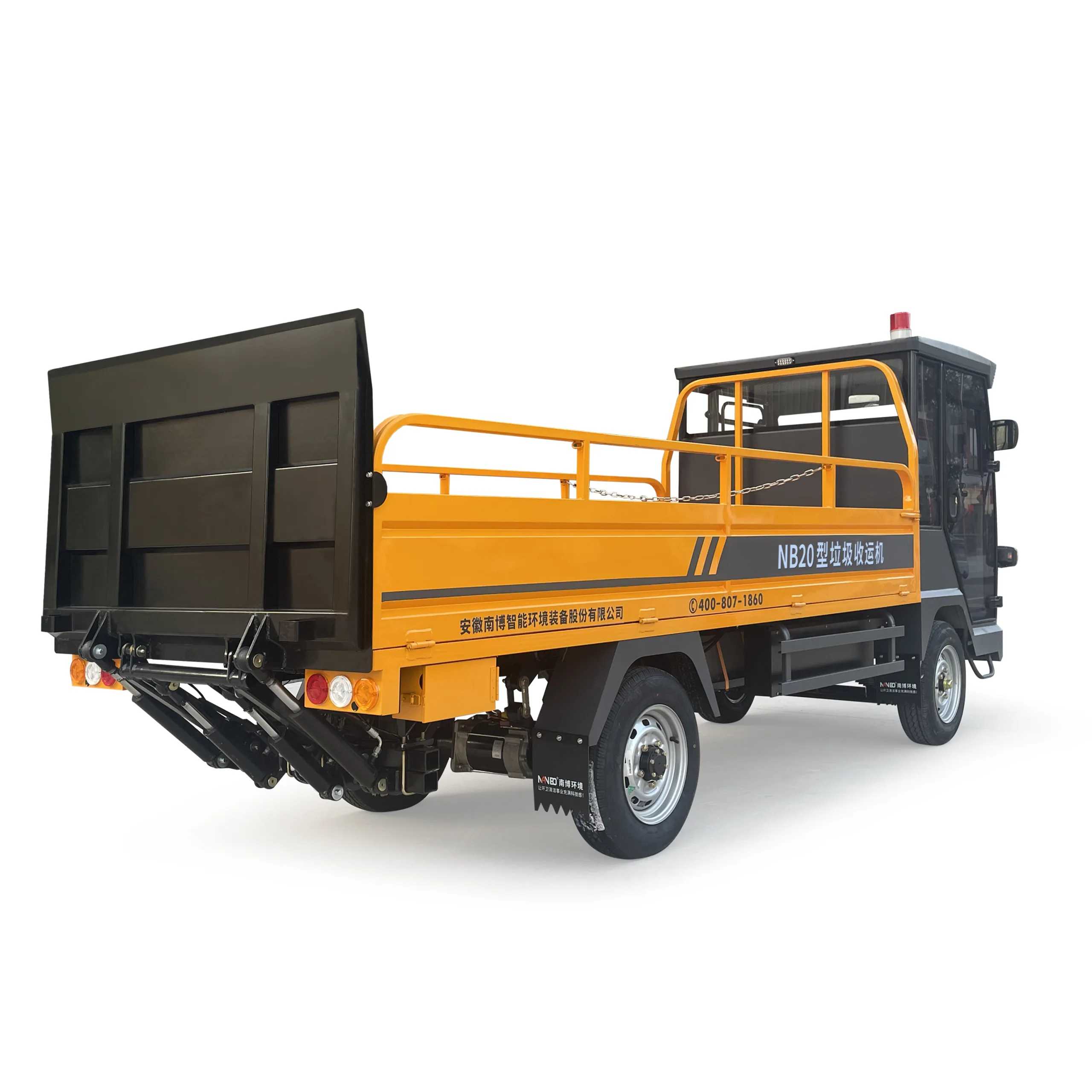

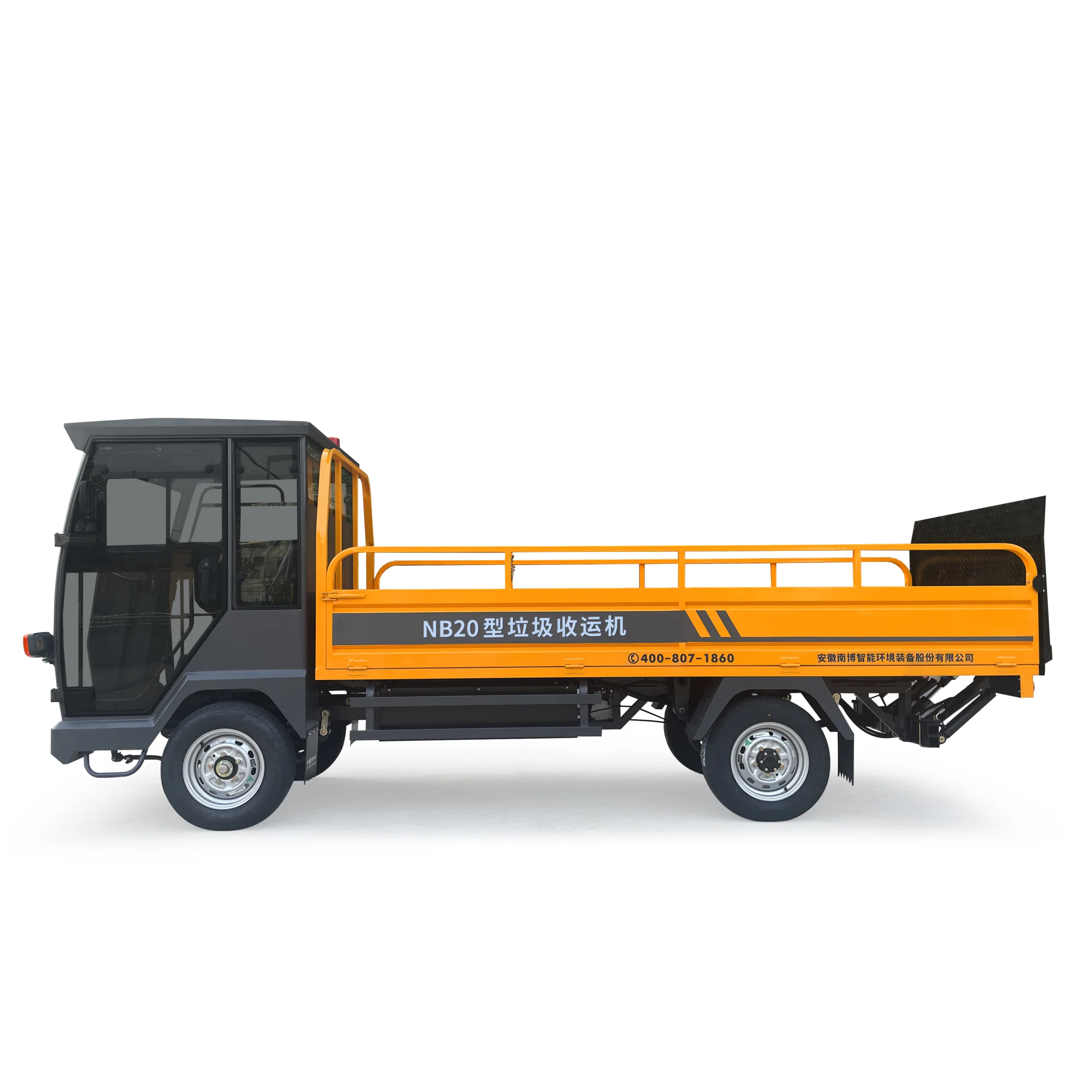

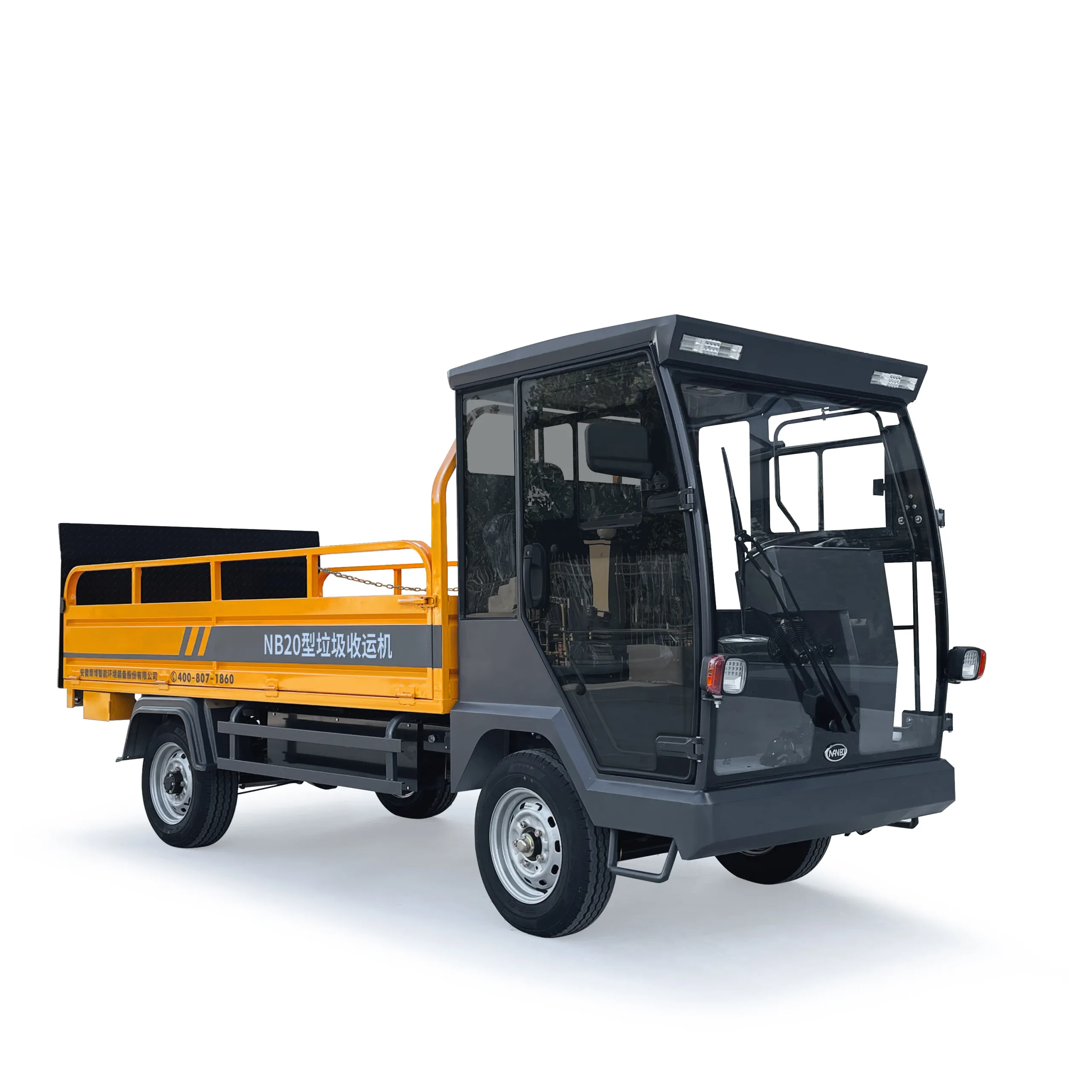

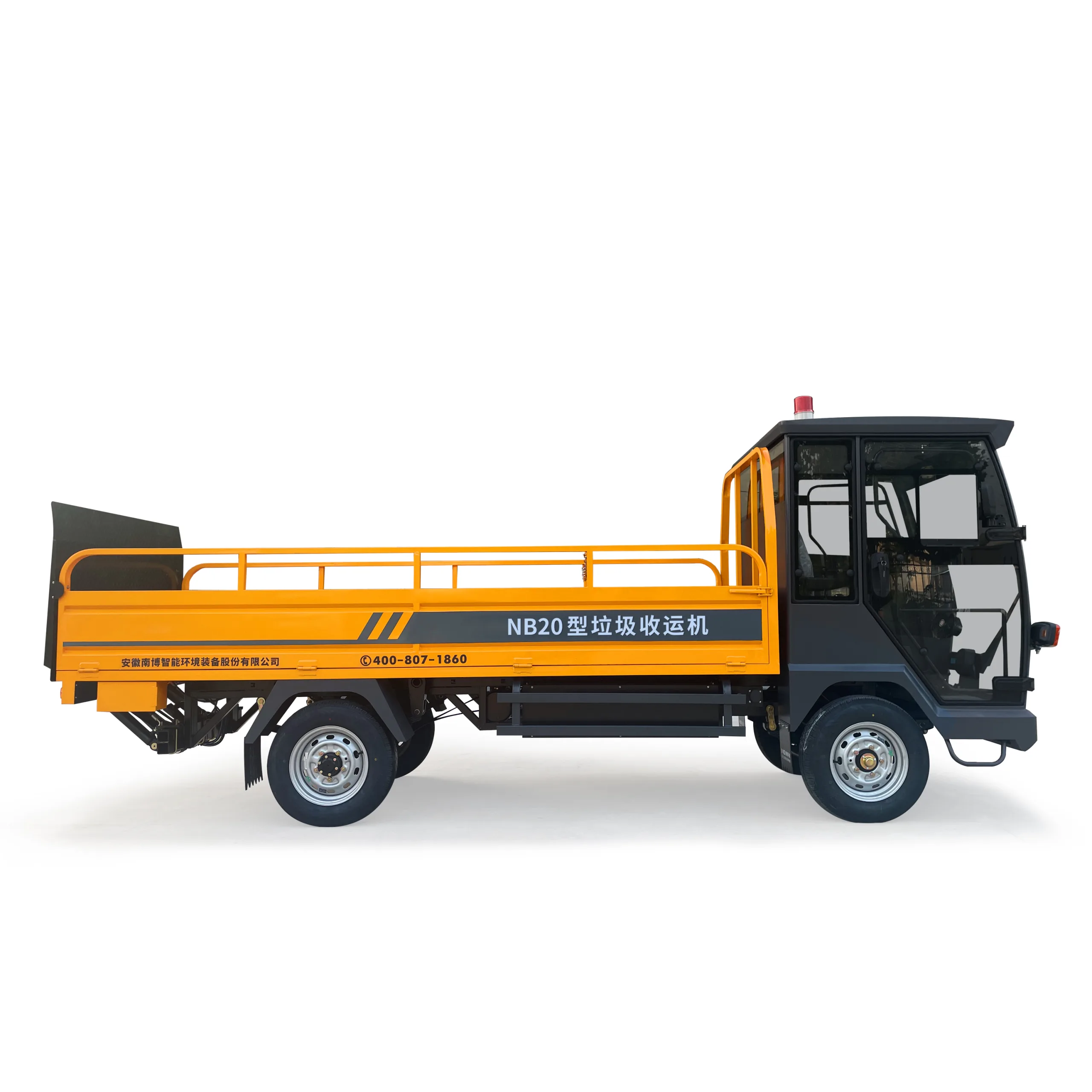

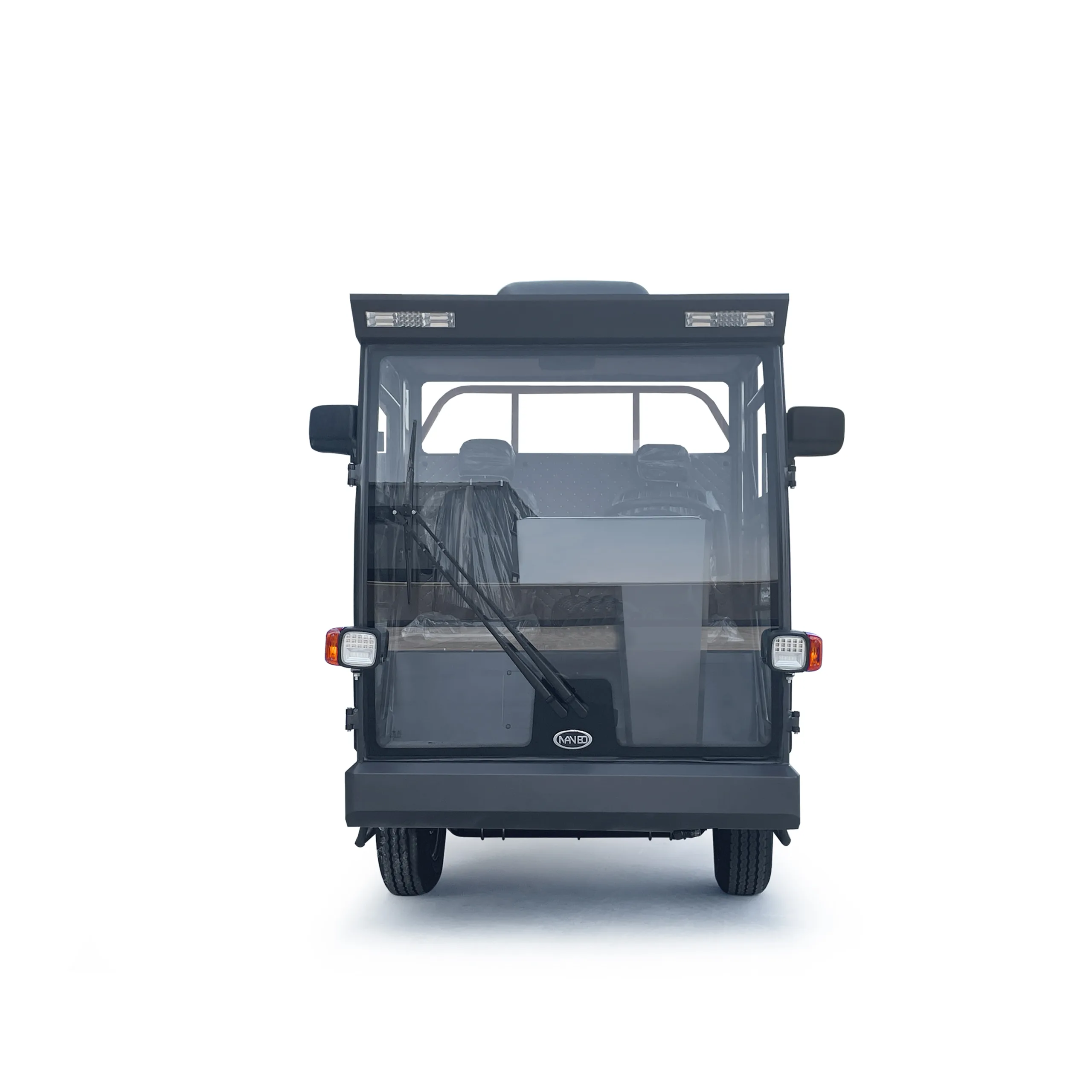

The Nanbo NB19 and NB20 are waste collection and transport vehicles designed to handle eight and ten bins, respectively. They feature high-capacity cargo compartments, automatic hydraulic lifting systems, and a compact, agile design. Primarily used for the transfer and transport of sorted waste bins in locations such as residential complexes, townships, commercial districts, tourist attractions, and schools, they are also suitable for general logistics and transport tasks. These versatile, all-electric vehicles offer low operating costs and zero emissions.
The Nanbo NB19 and NB20 are waste collection and transport vehicles designed to handle eight and ten bins, respectively. They feature high-capacity cargo compartments, automatic hydraulic lifting systems, and a compact, agile design. Primarily used for the transfer and transport of sorted waste bins in locations such as residential complexes, townships, commercial districts, tourist attractions, and schools, they are also suitable for general logistics and transport tasks. These versatile, all-electric vehicles offer low operating costs and zero emissions.
Key Features of the NB20 Waste Collection and Transport Vehicle
Heavy-Duty Welded Chassis
A fully welded chassis with four longitudinal main beams and dual-leaf-spring rear suspension provides reliable load-bearing capacity for demanding waste collection and transport operations.
Four-Wheel Hydraulic Braking System
Four-wheel hydraulic drum brakes and an independent mechanical parking brake provide responsive braking and enhanced operational safety.

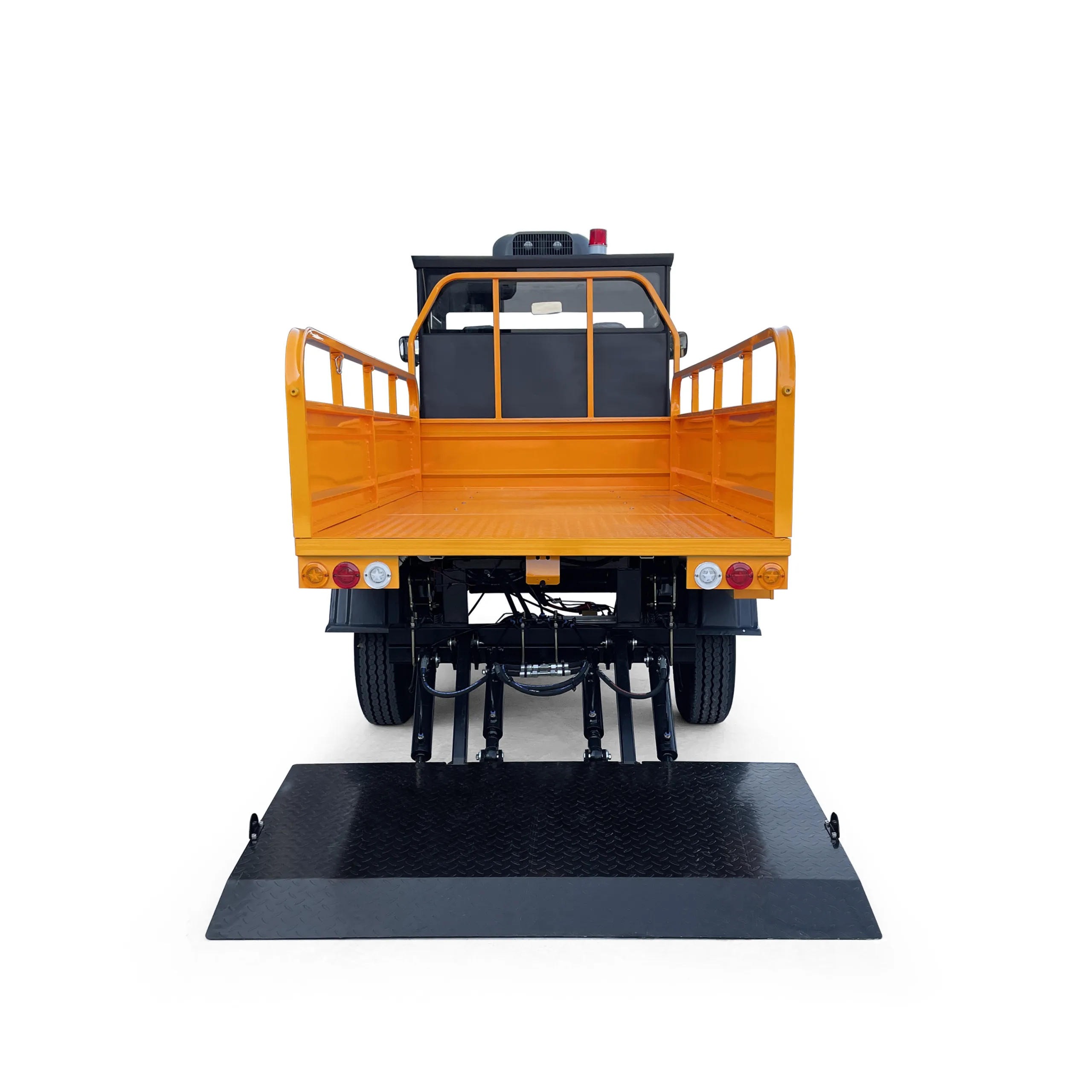

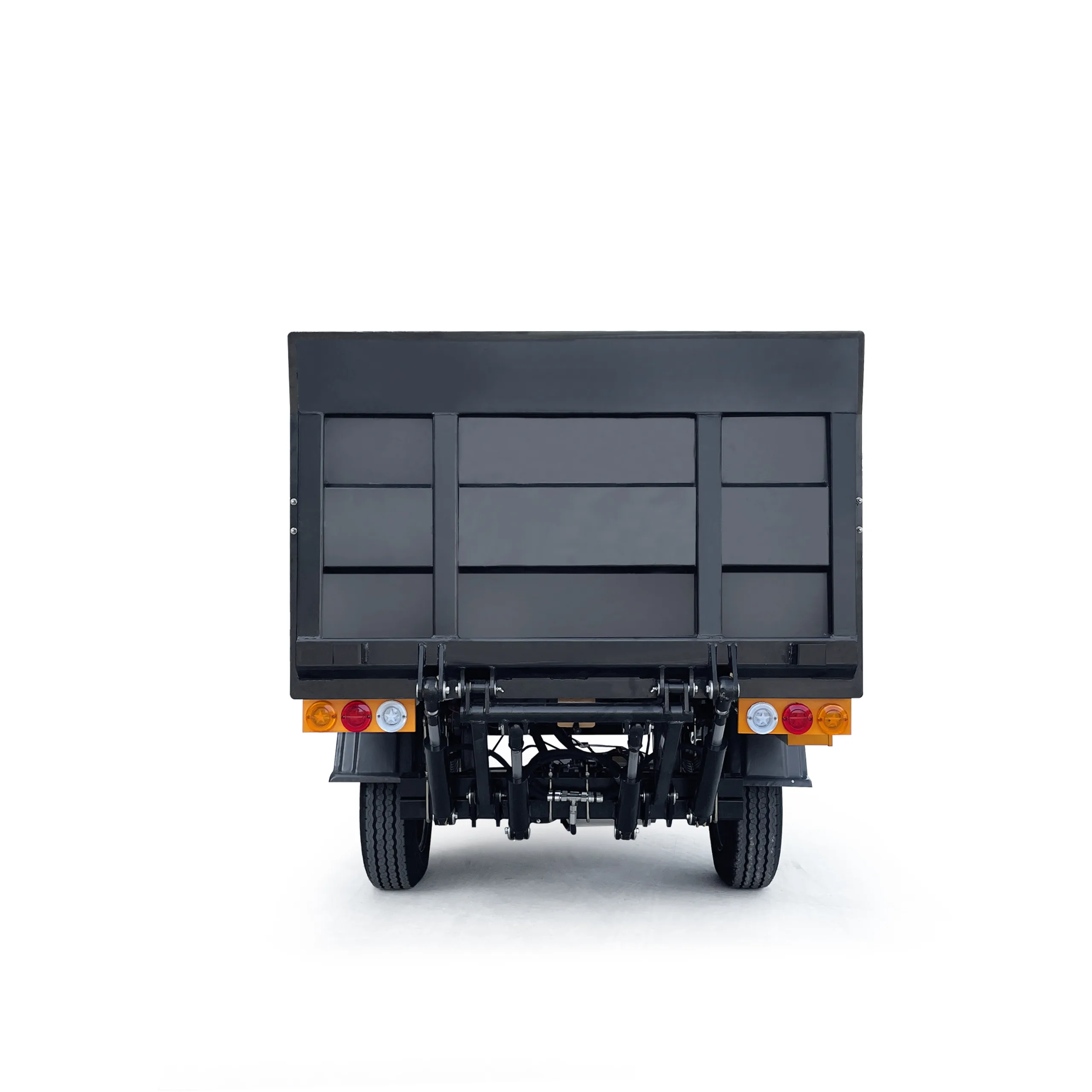

Hydraulic Bin-Lifting Tailgate
The hydraulic tailgate lifts both full and empty waste bins, reducing manual handling and operator workload during loading and unloading.
Dual LCD Display
Connected driving and infotainment displays provide clear vehicle information through large, high-definition LCD screens for a more convenient driving experience.
Reversing Camera
A rear-view camera improves visibility behind the vehicle, reduces blind spots, and supports safer reversing in confined working areas.
Eight-Bin Transport Capacity
The electric waste collection vehicle can transport up to eight 240 L waste bins per trip, reducing repeated journeys and improving collection efficiency.
High-Power Brushless DC Motor
A high-performance brushless DC motor delivers strong and stable power for everyday driving and climbing operations.
Radial Tubeless Tires
Four radial tubeless tires provide dependable durability, stable handling, and a long service life under regular sanitation operations.
Parameter
Parameter
NB19
NB20
Drive Motor Power
7,500 W
7,500 W
Maximum Travel Speed
40 km/h
40 km/h
Waste Bin Capacity
8 × 240 L bins
10 × 240 L bins
Turning Radius
4,200 mm
4,600 mm
Gradeability
≤25%
≤25%
Driving Range
100 km
100 km
Drive System
Rear-Axle Drive
Rear-Axle Drive
Power Source
72 V Maintenance-Free Lead-Acid Battery Pack
72 V Maintenance-Free Lead-Acid Battery Pack
Maximum Gross Vehicle Weight
2,400 kg
2,600 kg
Net Weight
1,400 kg
1,580 kg
Tailgate Lifting Time
Raise: 4–5 s; Lower: 7–9 s
Raise: 4–5 s; Lower: 7–9 s
Tailgate Tilting Time
Tilt: 4–5 s; Return: 7–9 s
Tilt: 4–5 s; Return: 7–9 s
Dimensions (L × W × H)
4,540 × 1,460 × 2,050 mm
5,140 × 1,460 × 2,050 mm
Technologies
Integrated Cleaning Systems
Practical cleaning technologies, reliable power systems and user-friendly controls configured for professional cleaning applications.
Modular Function Design
Sweeping, scrubbing, water recovery, dust suppression, high-pressure washing and waste collection — each tuned to the environment and surface.
Stability & Safety
Engineered for cleaning efficiency, operational stability, operator safety and convenient maintenance with accessible service components.
Pre-delivery Testing
Every machine undergoes functional inspection covering cleaning system, water supply, suction, electrics, driving and safety devices.
Custom & OEM/ODM
Optional configurations available for distributors and contractors — tailored to area, surface, waste type, working time and local requirements.
Anhui Nanbo Intelligent Environmental Equipment Co., Ltd. — founded in 2015, headquartered in Wuhu. We are a national High-Tech Enterprise with 80+ patents and ISO 9001 certification, focused on the R&D and manufacturing of floor scrubbers, floor sweepers, high-pressure washers and new-energy sanitation vehicles.
Three main factors to consider: cleaning area, floor material and dominant soil type. Hand-push scrubbers are typically used for areas under 3,000 m², while ride-on versions suit 5,000 m² and above. Sweepers handle dry dust and debris; scrubbers handle oil and water spills — many facilities run both for the best result.
Sweepers use dry technology (sweep + suction) to remove dust, chips and loose debris without water. Scrubbers use wet technology (spray + scrub + suction) with water and detergent to remove oil and liquid spills, leaving the floor dry immediately. They serve different purposes and are not substitutes.
Pricing varies significantly depending on model, configuration, battery type and quantity. As a source manufacturer, we offer competitive factory-direct pricing and can tailor packages to your project. Please contact us for a precise quotation based on your specific needs.
Lead-acid is the economical choice for single-shift (8-hour) operations. Lithium is recommended for double or triple shifts: it charges in 2–3 hours, lasts roughly 2,000 charge cycles and requires no maintenance over its lifetime.
