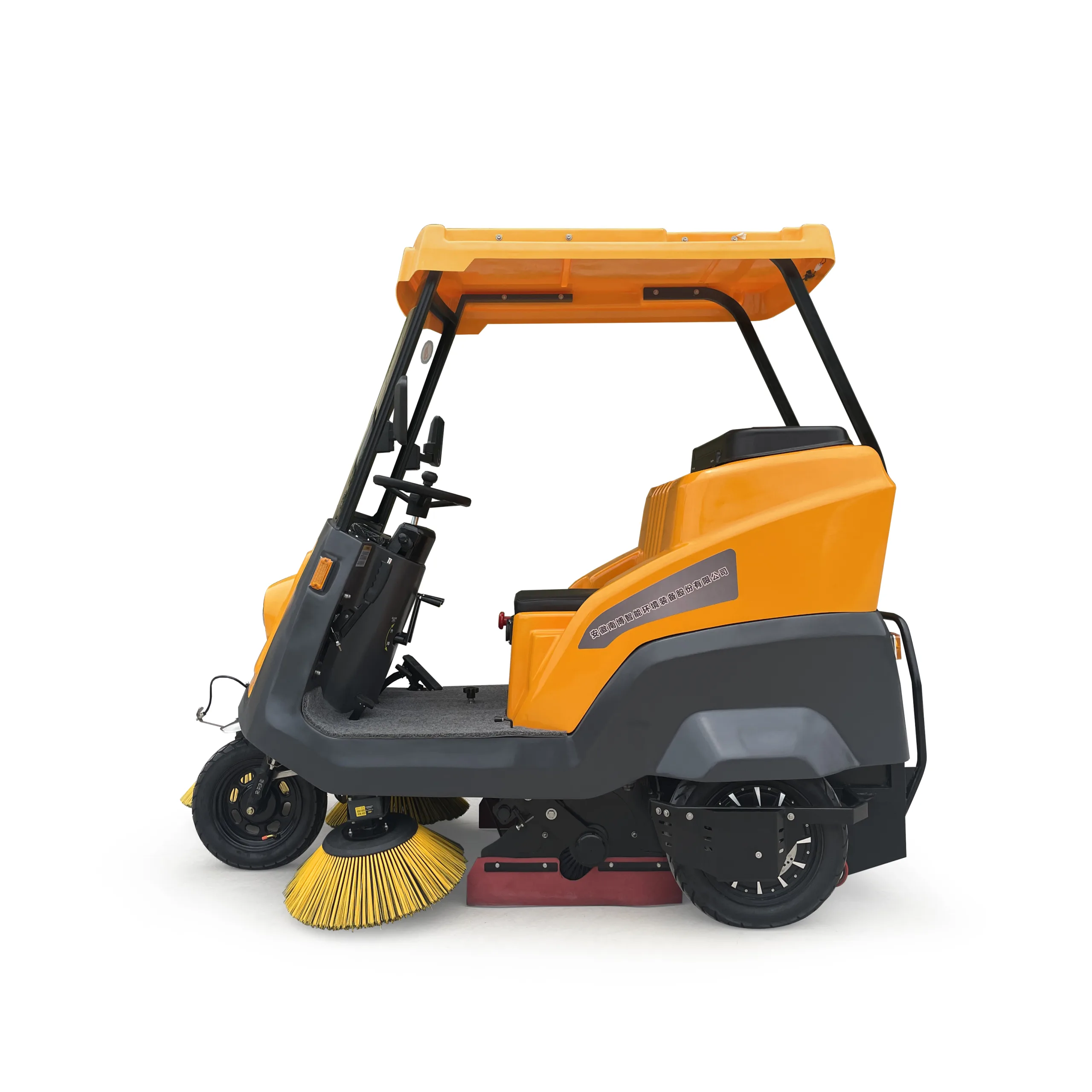

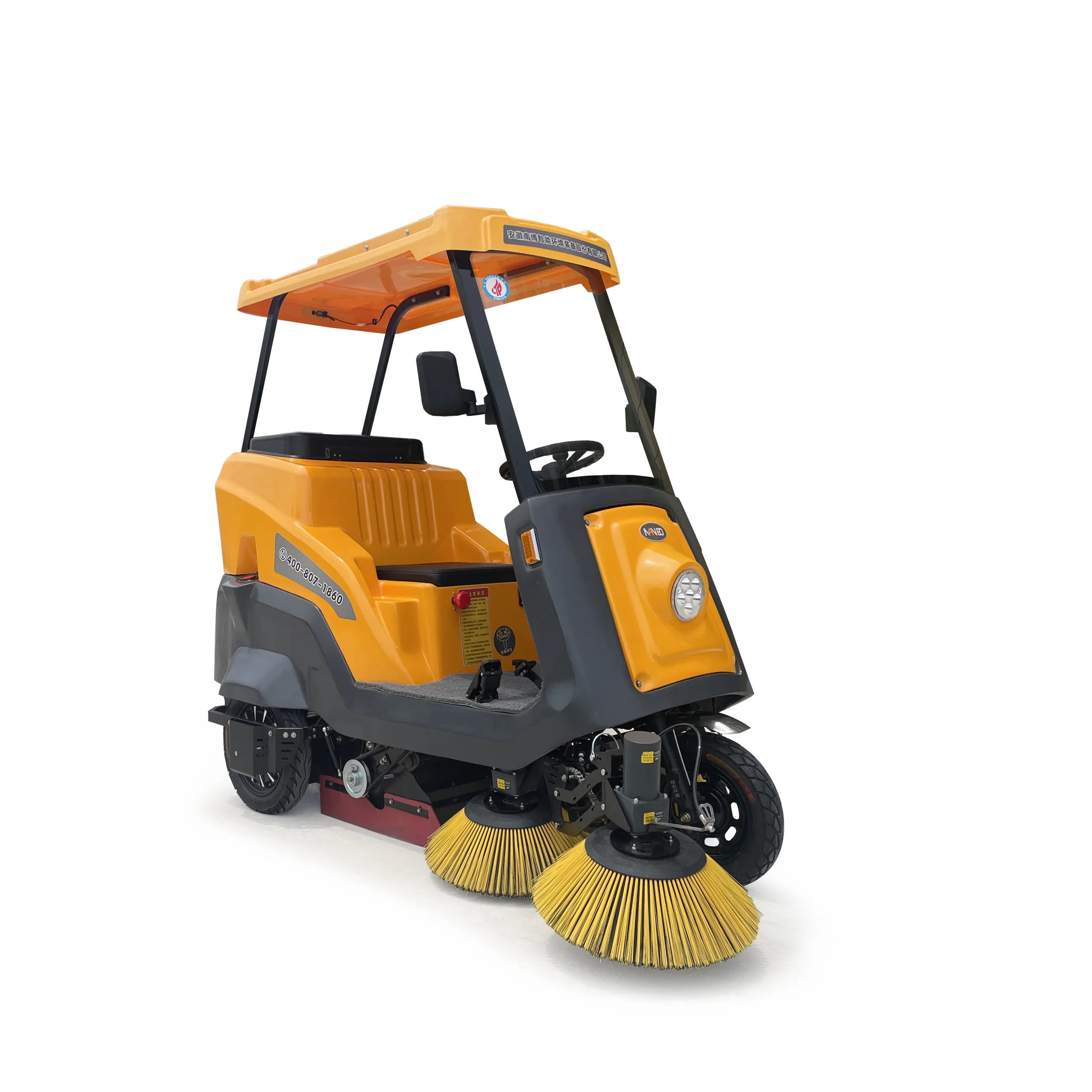

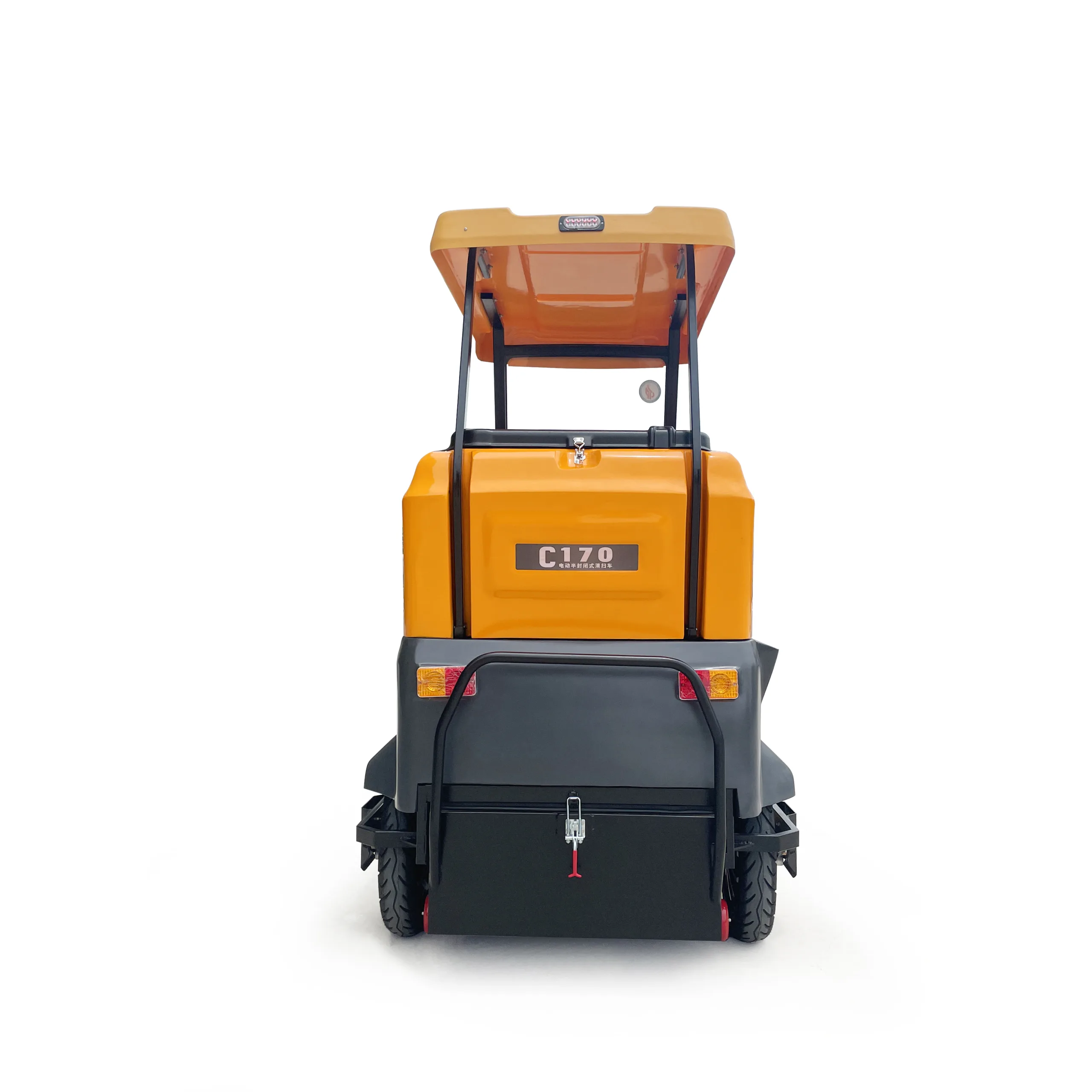

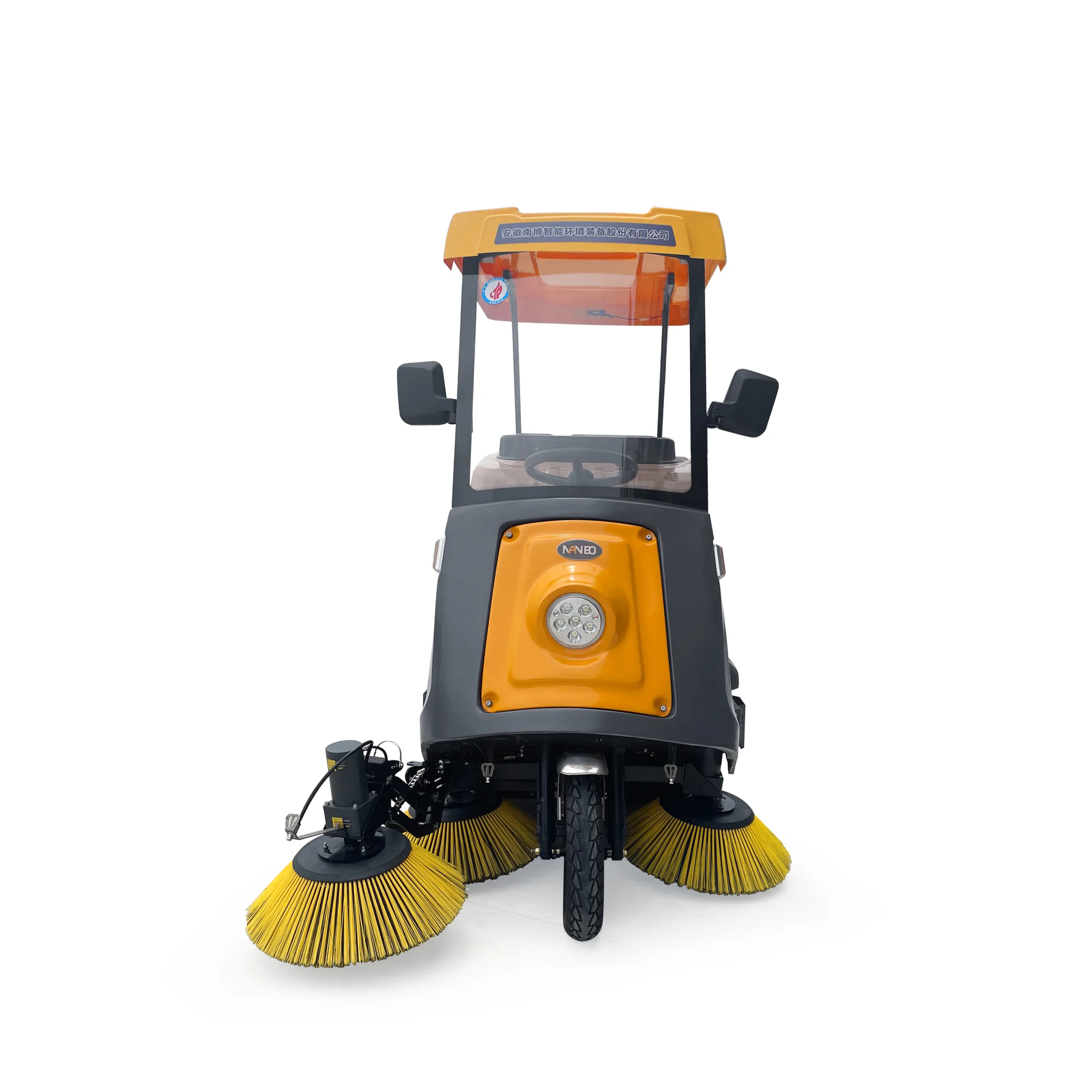

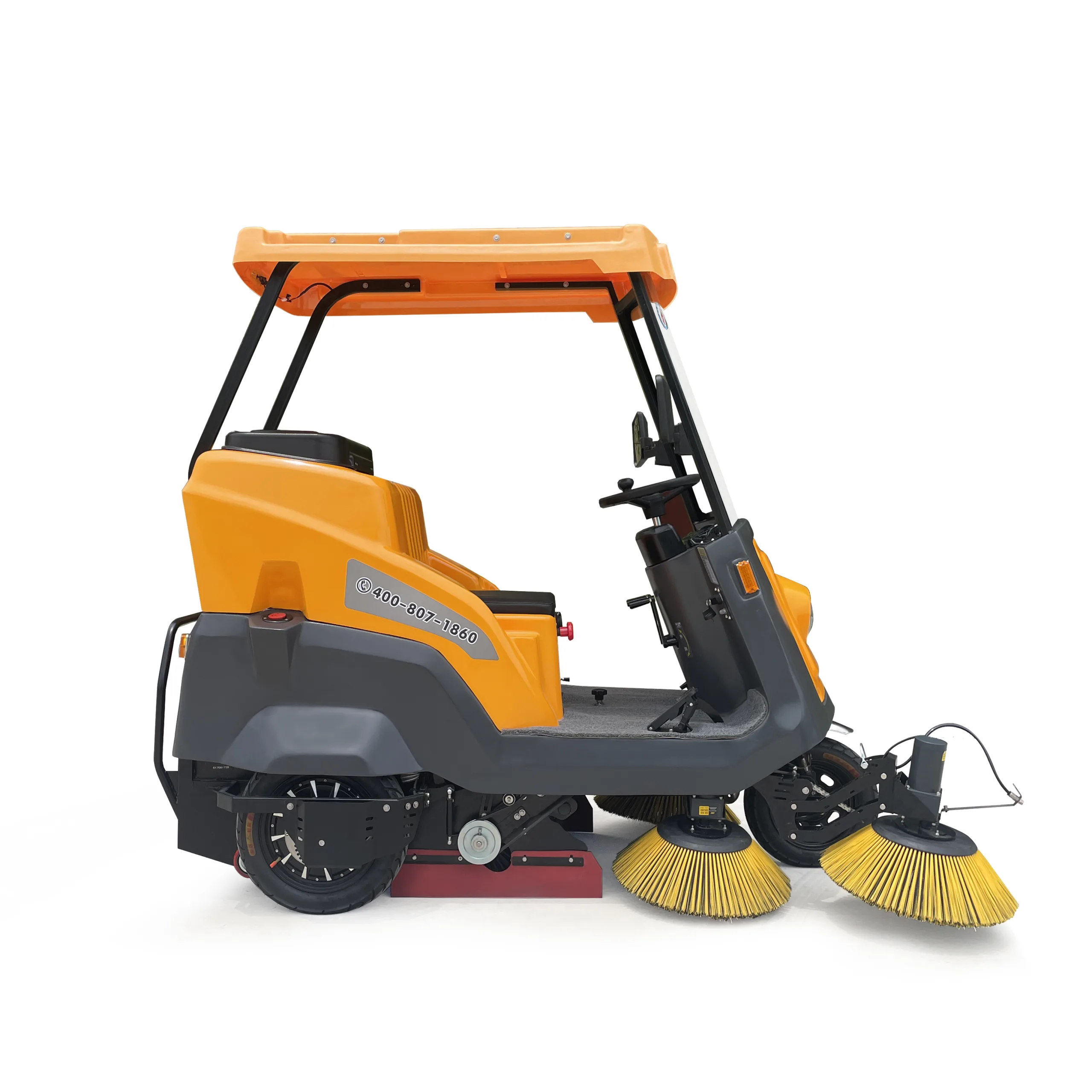

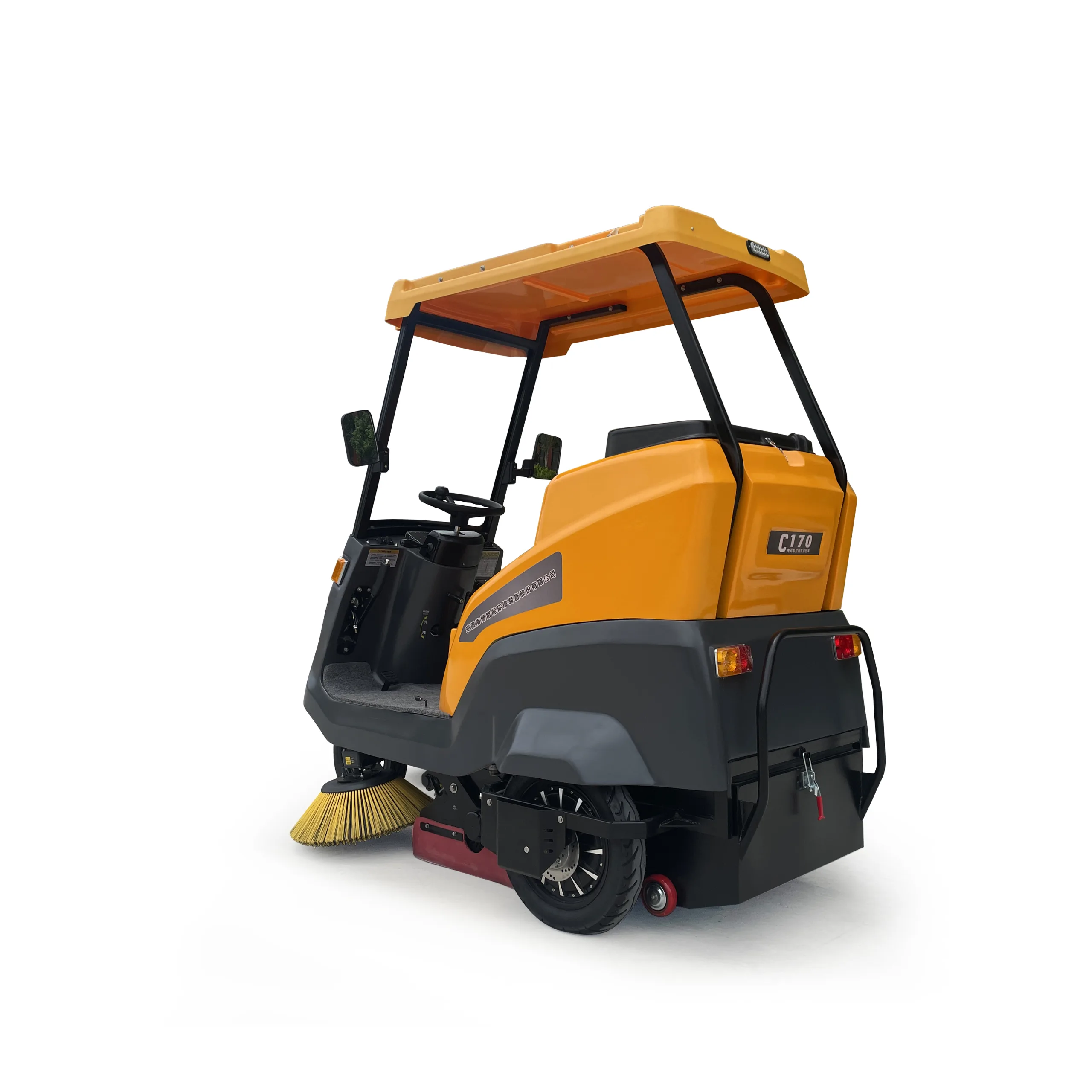

The Nanbo C170 semi-enclosed road sweeper integrates sweeping and cleaning functions. It is designed primarily for the rapid removal of scattered debris—such as fallen leaves, plastic bottles, cigarette packs, tissues, pebbles, and cigarette butts—from urban roads and campus or park pathways, thereby significantly enhancing the safety of sanitation workers operating on roadways.
Suitable locations: Urban roads (including auxiliary lanes, non-motorized vehicle lanes, and sidewalks), educational institutions, parks, public squares, villa complexes, etc.
The Nanbo C170 semi-enclosed road sweeper integrates sweeping and cleaning functions. It is designed primarily for the rapid removal of scattered debris—such as fallen leaves, plastic bottles, cigarette packs, tissues, pebbles, and cigarette butts—from urban roads and campus or park pathways, thereby significantly enhancing the safety of sanitation workers operating on roadways.
Suitable locations: Urban roads (including auxiliary lanes, non-motorized vehicle lanes, and sidewalks), educational institutions, parks, public squares, villa complexes, etc.
Key Features of the C170 Semi-enclosed Road Sweeper
Independently Developed and Patented Design
The electric road sweeper is developed and manufactured in-house and incorporates a patented exterior design.
Dual Brushless Hub Motors
Two high-power brushless hub motors provide strong traction and climbing performance. An automotive-style accelerator pedal enables smooth and responsive driving control.
Four-Brush Sweeping System
Three side brushes guide debris toward the centrally positioned main brush, which conveys the collected material into the waste hopper for efficient road sweeping.
Hydraulic Disc Braking System
Automotive-style hydraulic disc brakes work with a mechanical parking brake. An automatic power-cut function disengages the drive system during braking to improve operational safety.
Rare-Earth Main Brush Motor
The main brush is driven by a rare-earth motor designed to provide stable operation and reliable service life during demanding sweeping applications.
120 L Rotomolded Water Tank
The large 120 L rotomolded water tank supports extended dust-suppression spraying and helps reduce dust resuspension during sweeping.
Removable Litter Bin
An additional removable litter bin allows the operator to collect and temporarily store bottles, packaging and other scattered roadside waste.
Travel Speed up to 30 km/h
A maximum travel speed of 30 km/h allows the sweeper to move efficiently between cleaning areas and reduce non-working transit time.
Parameter
Specification
Value
Maximum sweeping productivity
14,500 m²/h
Maximum travel speed
30 km/h
Maximum sweeping width
1,450 mm
Water tank capacity
120 L
Waste hopper capacity
140 L
Removable litter bin capacity
60 L
Number of side brushes
3; 4 optional
Operating time
4–5 hours
Drive system
Dual rear-wheel independent drive
Power supply
48 V lithium or maintenance-free battery
Machine weight
310 kg
Dimensions (L × W × H)
2,350 × 1,220 × 1,900 mm
Technologies
Integrated Cleaning Systems
Practical cleaning technologies, reliable power systems and user-friendly controls configured for professional cleaning applications.
Modular Function Design
Sweeping, scrubbing, water recovery, dust suppression, high-pressure washing and waste collection — each tuned to the environment and surface.
Stability & Safety
Engineered for cleaning efficiency, operational stability, operator safety and convenient maintenance with accessible service components.
Pre-delivery Testing
Every machine undergoes functional inspection covering cleaning system, water supply, suction, electrics, driving and safety devices.
Custom & OEM/ODM
Optional configurations available for distributors and contractors — tailored to area, surface, waste type, working time and local requirements.
Anhui Nanbo Intelligent Environmental Equipment Co., Ltd. — founded in 2015, headquartered in Wuhu. We are a national High-Tech Enterprise with 80+ patents and ISO 9001 certification, focused on the R&D and manufacturing of floor scrubbers, floor sweepers, high-pressure washers and new-energy sanitation vehicles.
Three main factors to consider: cleaning area, floor material and dominant soil type. Hand-push scrubbers are typically used for areas under 3,000 m², while ride-on versions suit 5,000 m² and above. Sweepers handle dry dust and debris; scrubbers handle oil and water spills — many facilities run both for the best result.
Sweepers use dry technology (sweep + suction) to remove dust, chips and loose debris without water. Scrubbers use wet technology (spray + scrub + suction) with water and detergent to remove oil and liquid spills, leaving the floor dry immediately. They serve different purposes and are not substitutes.
Pricing varies significantly depending on model, configuration, battery type and quantity. As a source manufacturer, we offer competitive factory-direct pricing and can tailor packages to your project. Please contact us for a precise quotation based on your specific needs.
Lead-acid is the economical choice for single-shift (8-hour) operations. Lithium is recommended for double or triple shifts: it charges in 2–3 hours, lasts roughly 2,000 charge cycles and requires no maintenance over its lifetime.
