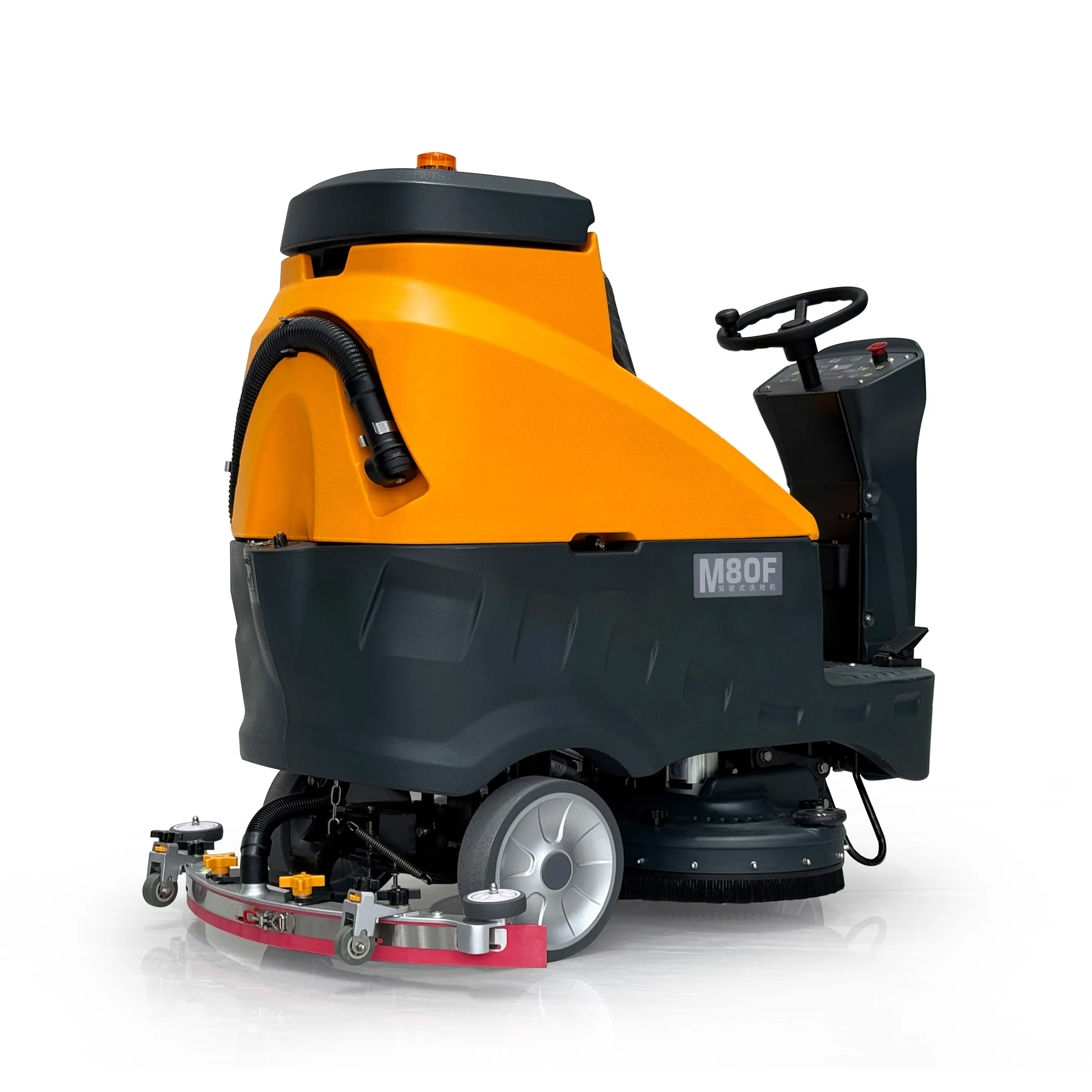

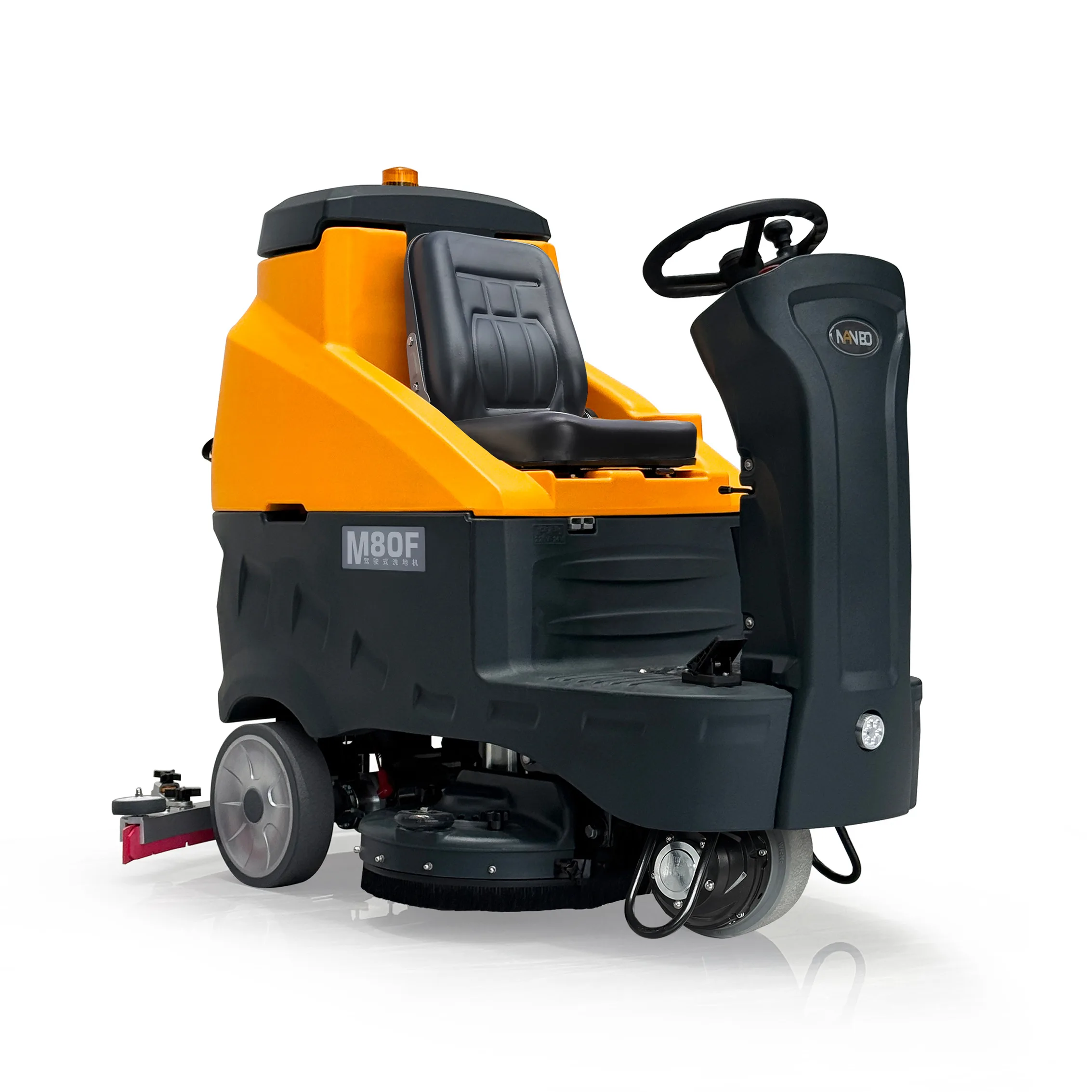

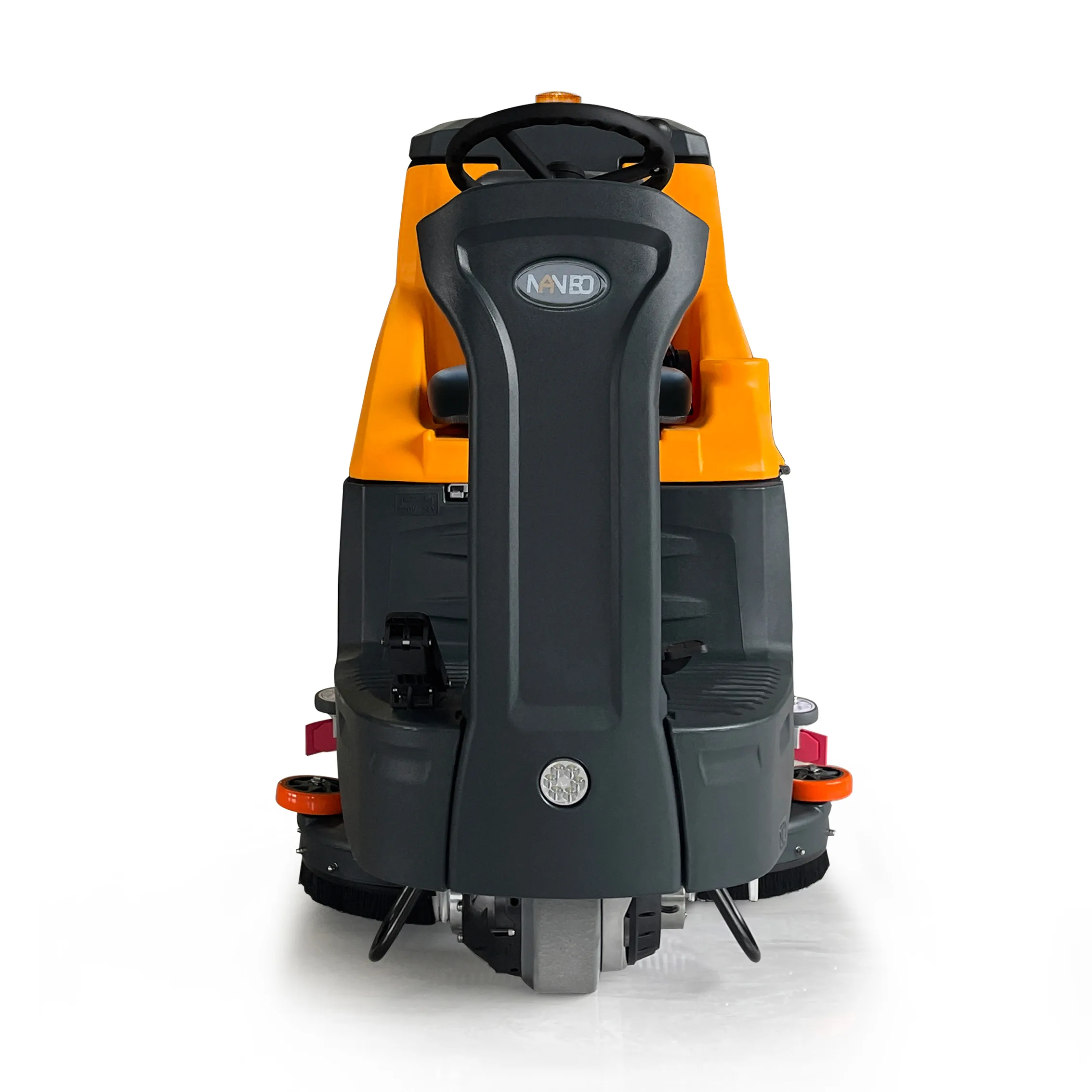

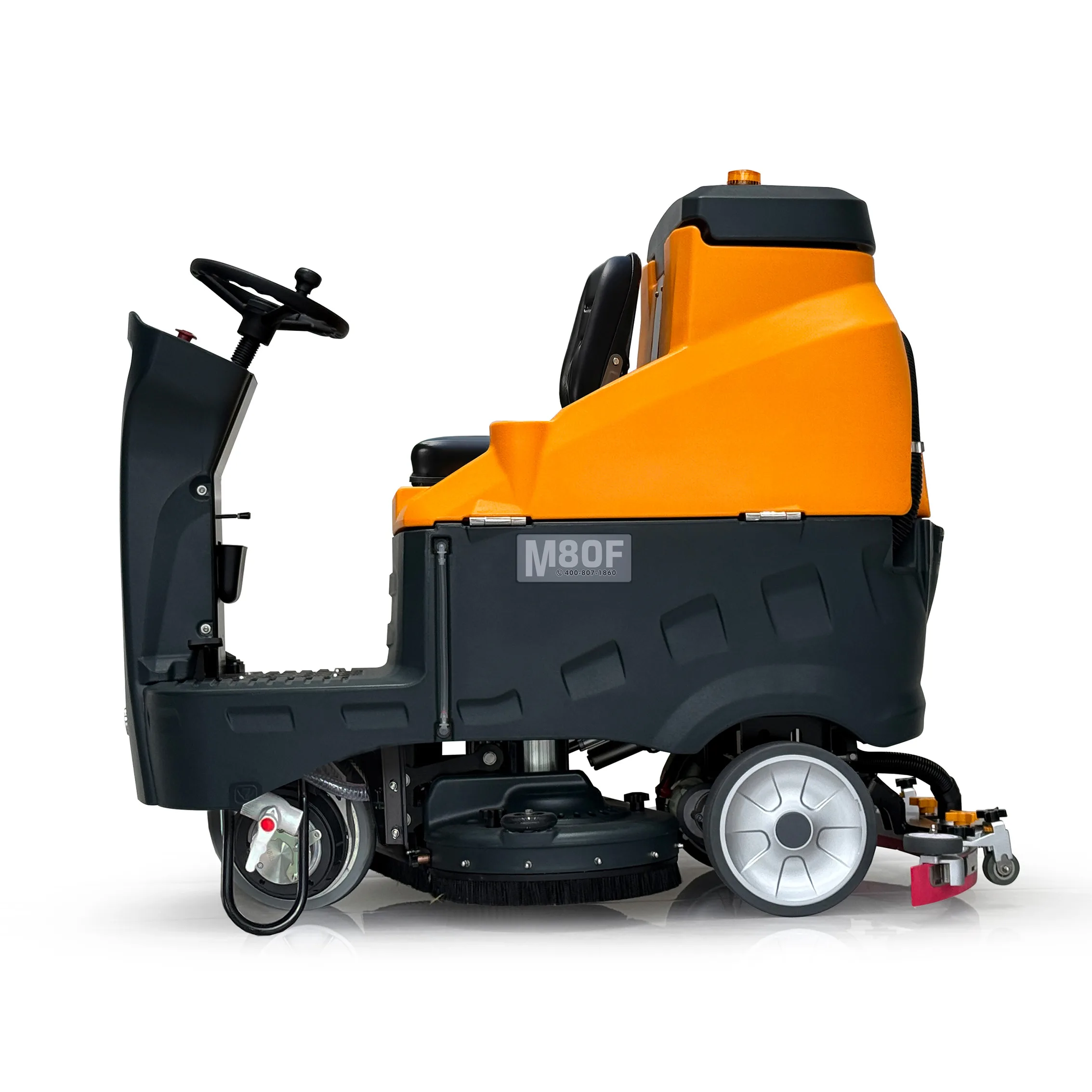

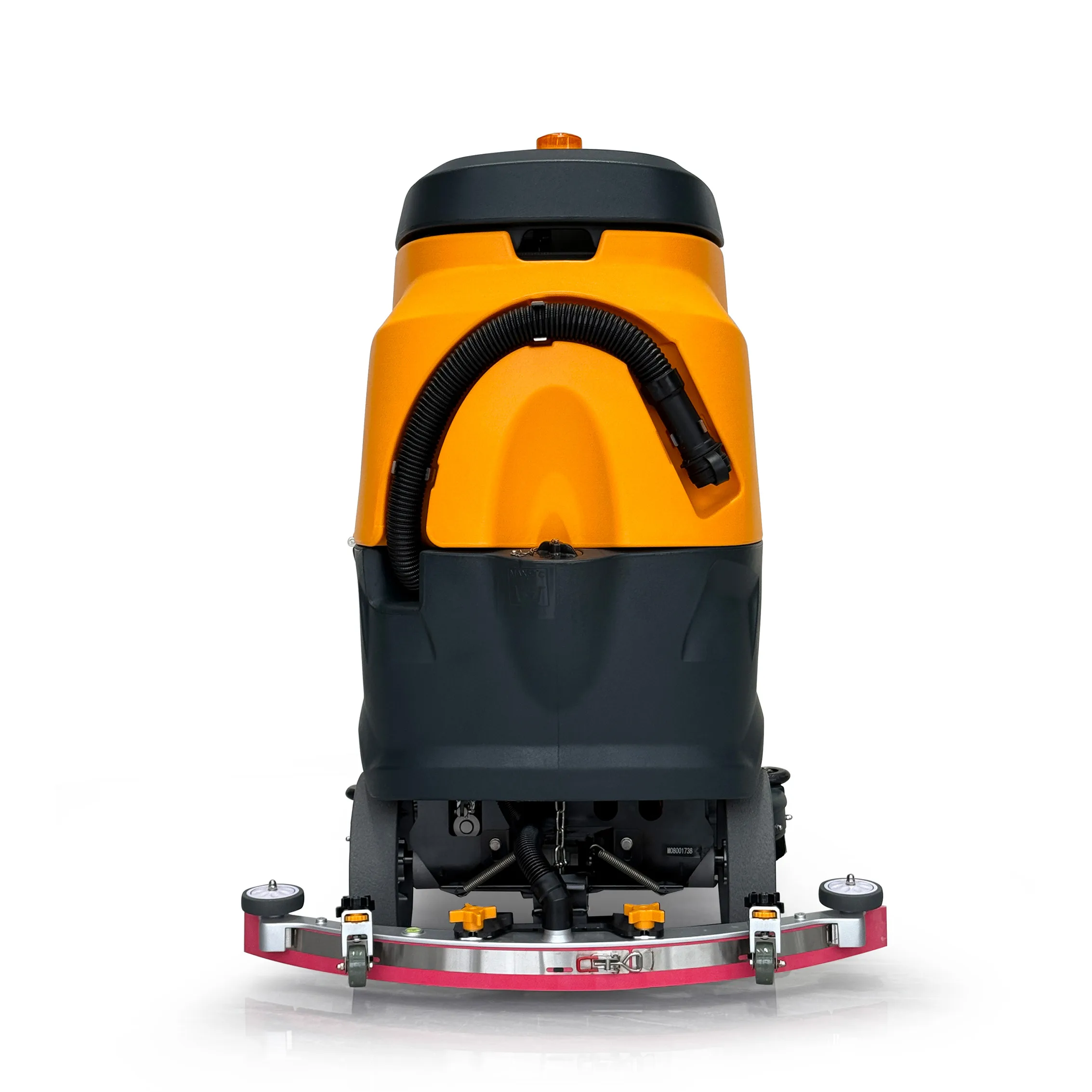

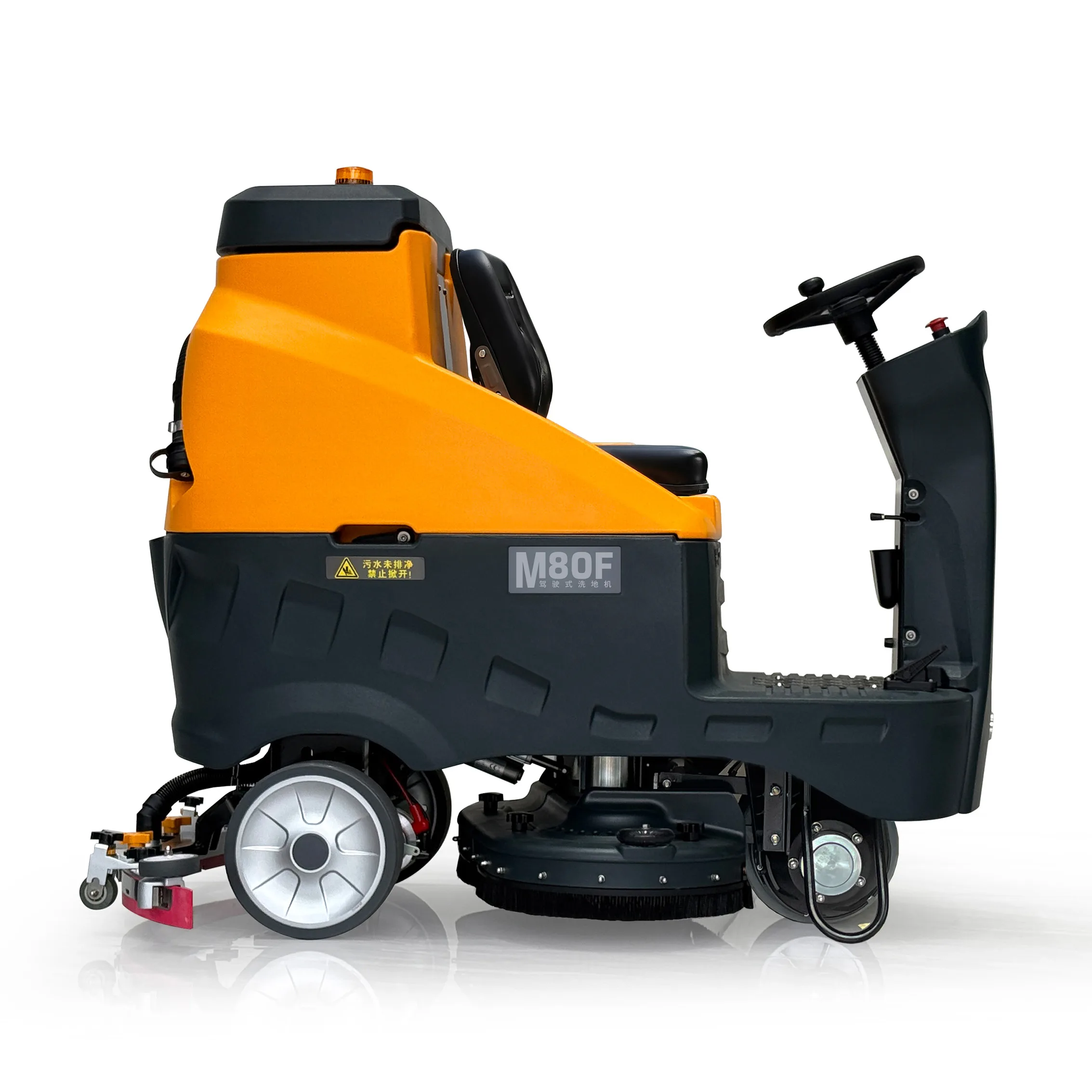

The Nanbo M80F (Front-Wheel Drive) Ride-on Scrubber-Dryer is a medium-to-large ride-on floor scrubber featuring a dual 16-inch disc brush design, making it ideal for cleaning large areas. It is equipped with a touchscreen panel and card-based startup, offering benefits such as high-efficiency scrubbing, effective drying with noise reduction, and eco-friendly energy efficiency. Its high-power rear drive axle ensures smooth operation and superior driving force.
The machine's operational performance rivals that of premium imported models.
The Nanbo M80/M80F is a medium-to-large ride-on floor scrubber featuring a dual 16-inch disc brush design, making it ideal for cleaning large areas. It is equipped with a touchscreen panel and card-based startup, offering benefits such as high-efficiency scrubbing, effective drying with noise reduction, and eco-friendly energy efficiency. Its high-power rear drive axle ensures smooth operation and superior driving force.
The machine’s operational performance rivals that of premium imported models.
Key Features of the M80F (Front-Wheel Drive) Ride-on Scrubber-Dryer
Multi-Stage Noise Reduction
A dedicated fan structure and multiple noise-reduction measures help reduce operating noise during cleaning.
Card-Activated Touch Control Panel
The machine supports card-activated startup. Operators can use the touch control panel to switch between cleaning modes.
Brush and Vacuum Motors
The brush motor and three-layer fan motor support floor scrubbing and dirty-water recovery.
Soft Start and Stop
Two controllers provide soft start and stop functions, helping reduce abrupt changes in motor load.
Delayed Vacuum Shutdown
The vacuum fan continues running briefly after cleaning stops to help collect residual water from the floor.
Movement-Linked Brush Control
The disc brush stops when the machine is stationary, helping prevent floor damage from scrubbing in one spot.
Automatic Slowdown While Turning
Parameter
Specification
M80 / M80F
Maximum Cleaning Productivity
5,500 m²/h
Maximum Working Width
1,050 mm
Maximum Travel Speed
7 km/h
Operating Time
4–5 h
Solution Tank Capacity
130 L
Recovery Tank Capacity
140 L
Power Supply
24 V
Number of Disc Brushes
2
Brush Deck and Squeegee Lift
Automatic
Drive Configuration
Rear-wheel drive or front-wheel drive (optional)
Machine Weight
350 kg
Dimensions (L × W × H)
1,585 × 1,050 × 1,390 mm
Technologies
Integrated Cleaning Systems
Practical cleaning technologies, reliable power systems and user-friendly controls configured for professional cleaning applications.
Modular Function Design
Sweeping, scrubbing, water recovery, dust suppression, high-pressure washing and waste collection — each tuned to the environment and surface.
Stability & Safety
Engineered for cleaning efficiency, operational stability, operator safety and convenient maintenance with accessible service components.
Pre-delivery Testing
Every machine undergoes functional inspection covering cleaning system, water supply, suction, electrics, driving and safety devices.
Custom & OEM/ODM
Optional configurations available for distributors and contractors — tailored to area, surface, waste type, working time and local requirements.
Anhui Nanbo Intelligent Environmental Equipment Co., Ltd. — founded in 2015, headquartered in Wuhu. We are a national High-Tech Enterprise with 80+ patents and ISO 9001 certification, focused on the R&D and manufacturing of floor scrubbers, floor sweepers, high-pressure washers and new-energy sanitation vehicles.
Three main factors to consider: cleaning area, floor material and dominant soil type. Hand-push scrubbers are typically used for areas under 3,000 m², while ride-on versions suit 5,000 m² and above. Sweepers handle dry dust and debris; scrubbers handle oil and water spills — many facilities run both for the best result.
Sweepers use dry technology (sweep + suction) to remove dust, chips and loose debris without water. Scrubbers use wet technology (spray + scrub + suction) with water and detergent to remove oil and liquid spills, leaving the floor dry immediately. They serve different purposes and are not substitutes.
Pricing varies significantly depending on model, configuration, battery type and quantity. As a source manufacturer, we offer competitive factory-direct pricing and can tailor packages to your project. Please contact us for a precise quotation based on your specific needs.
Lead-acid is the economical choice for single-shift (8-hour) operations. Lithium is recommended for double or triple shifts: it charges in 2–3 hours, lasts roughly 2,000 charge cycles and requires no maintenance over its lifetime.
