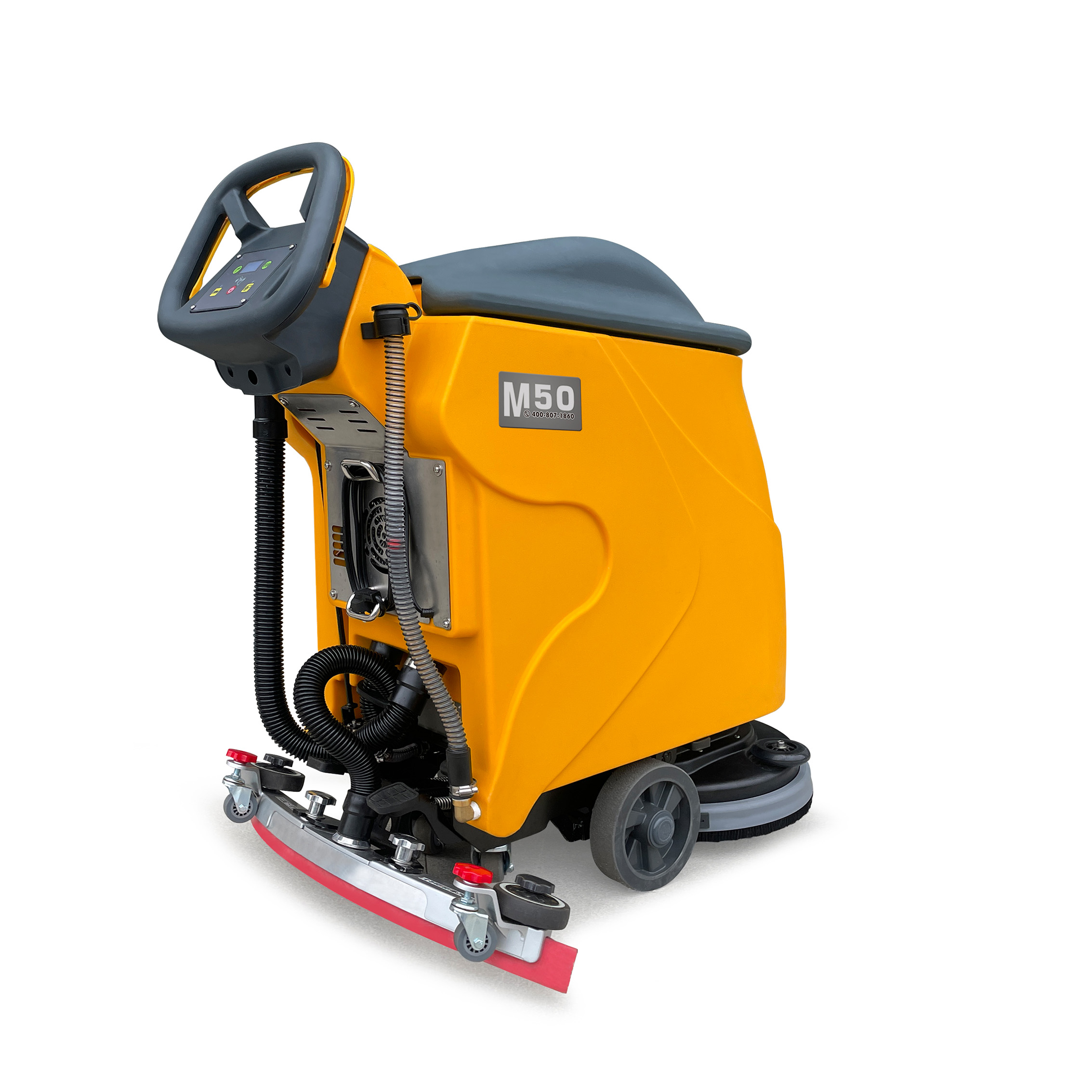

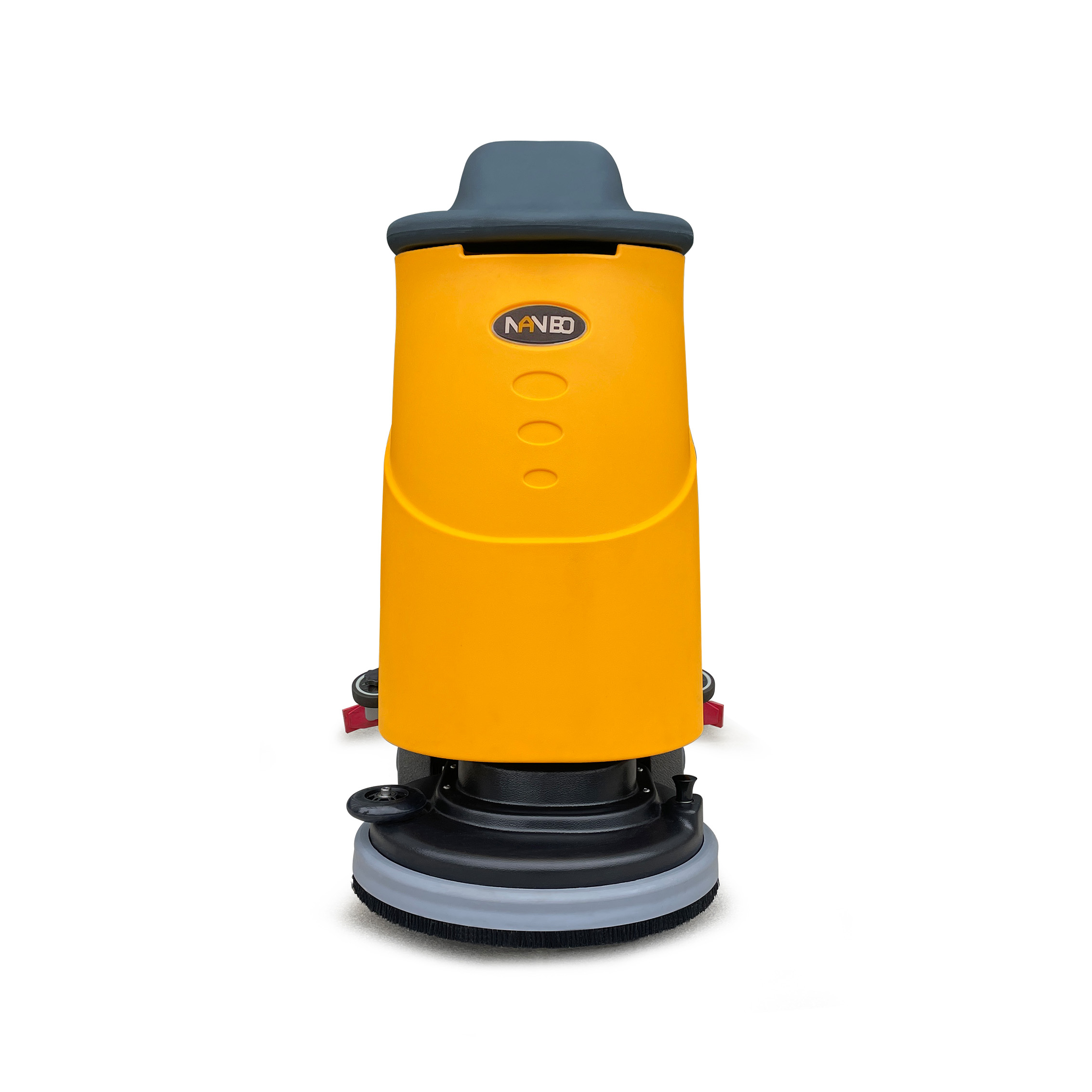

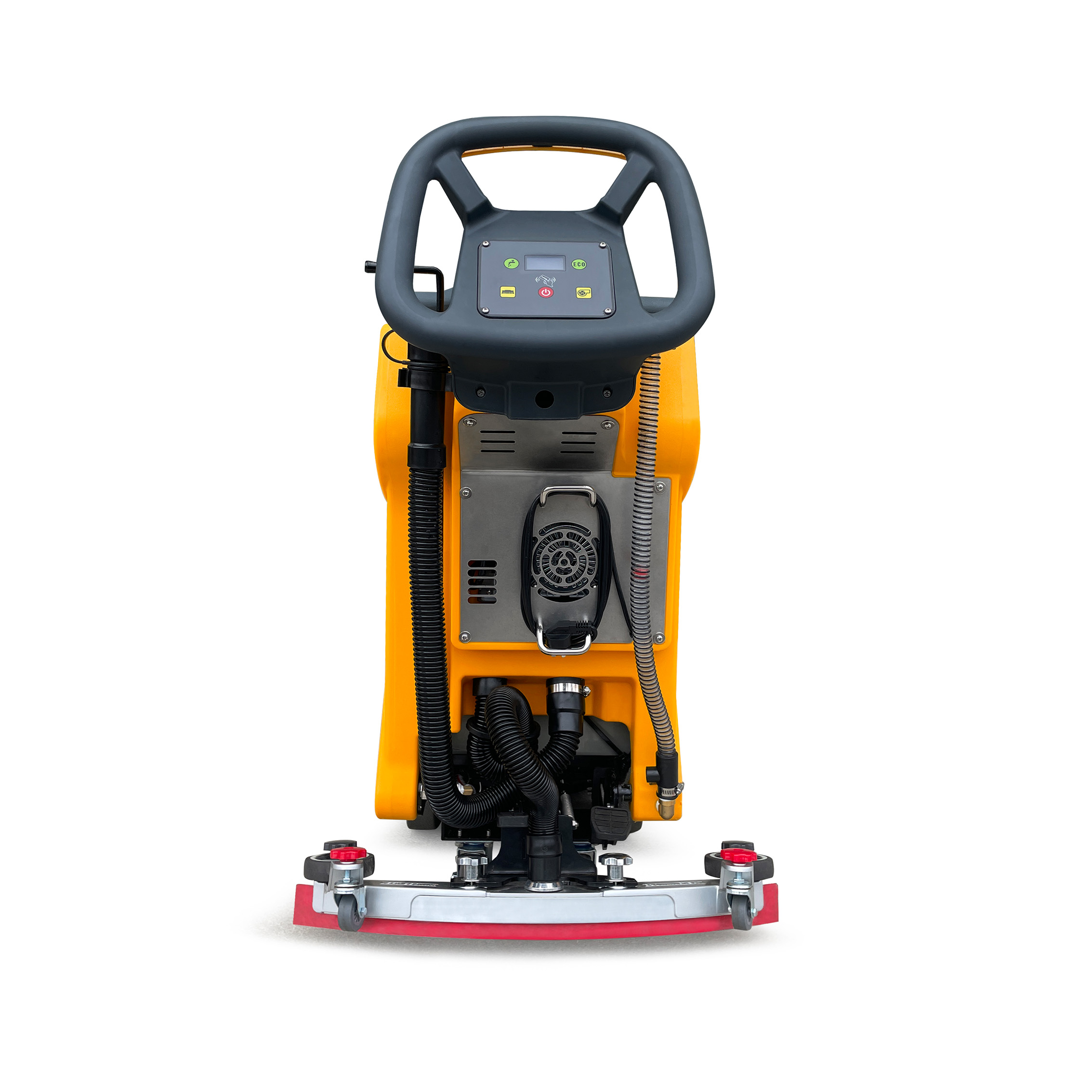

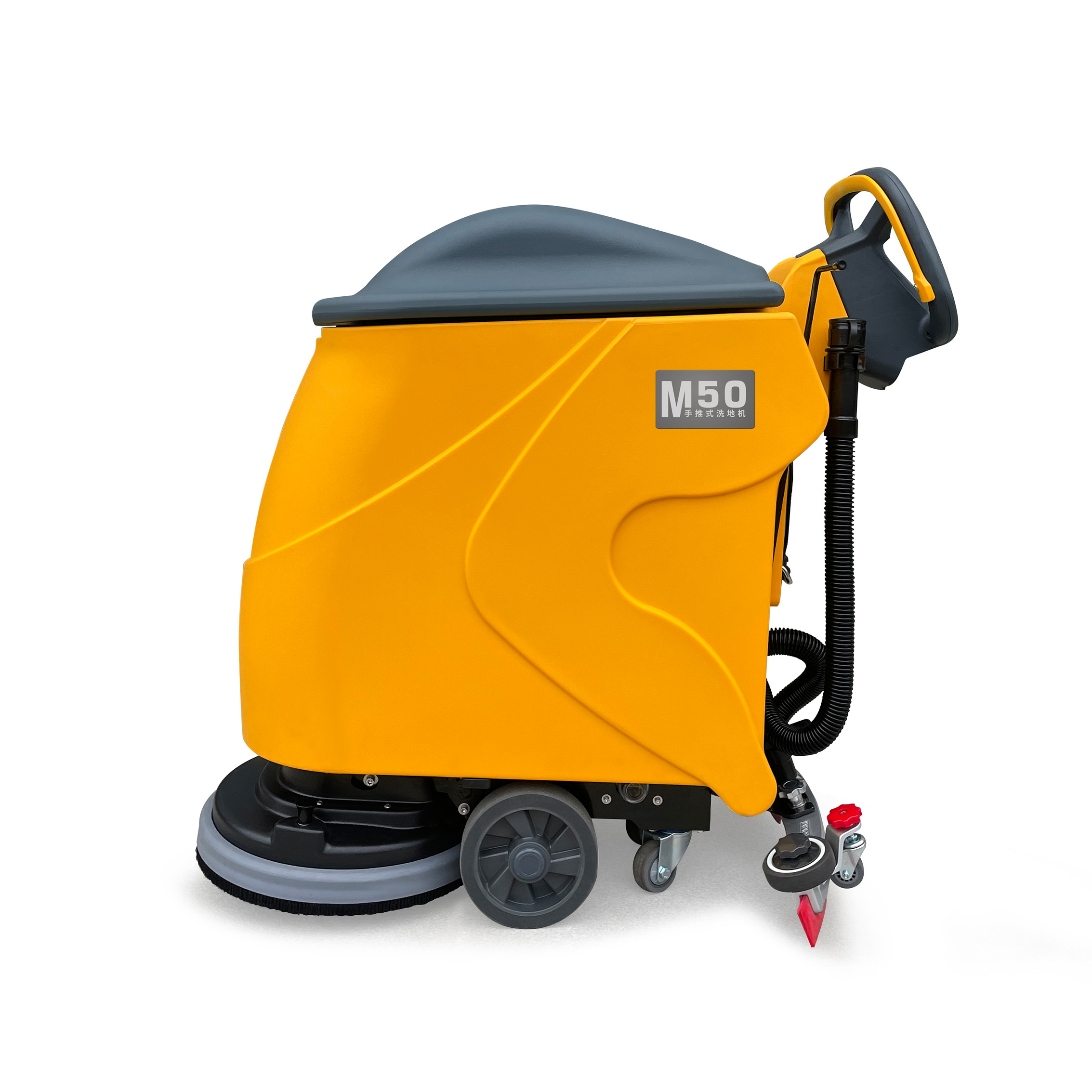

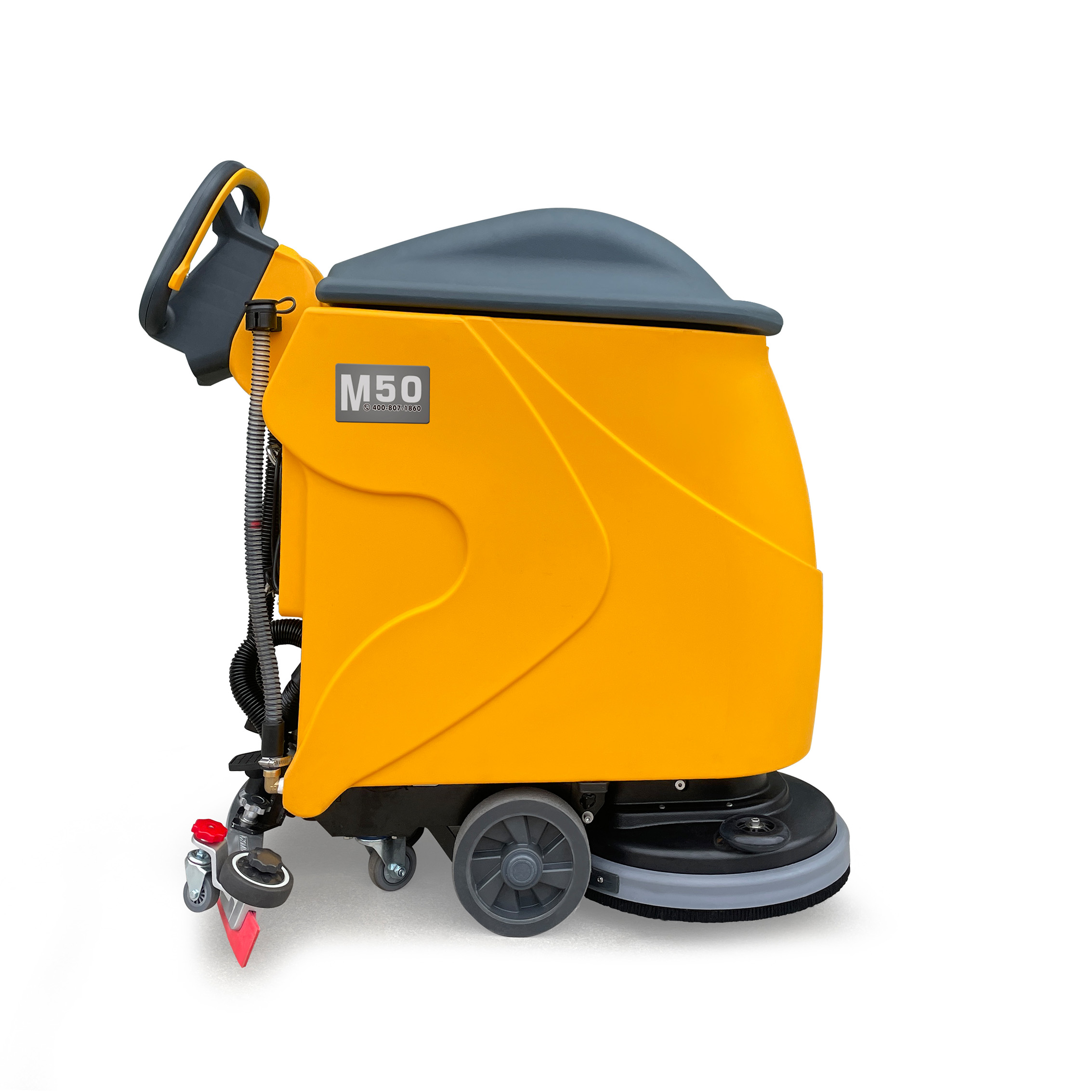

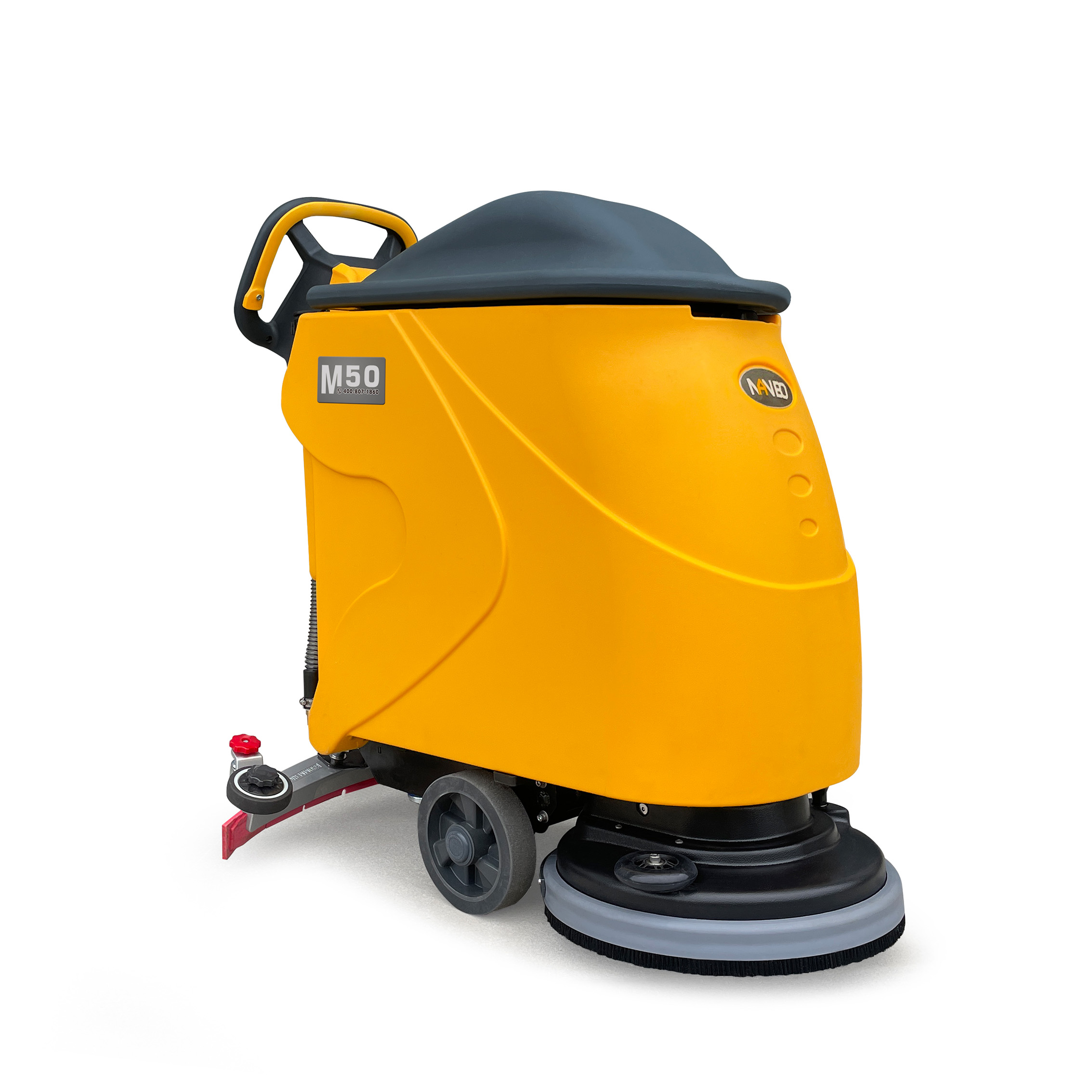

M50 Walk-behind Floor Scrubber

Product Overview

The Nanbo M50 is a newly developed, narrow-body, walk-behind floor scrubber. Incorporating international design concepts, it offers significant improvements over standard domestic models currently on the market—particularly regarding build quality, operator experience, ergonomics, and control panel safety—rivaling imported products and meeting higher cleaning standards.

Inquire Now Contact Us

HIGHLIGHT&SPECIFICATIONS
APPLICABLE GROUND
APPLICATION
FREQUENTLY ASKEDQUESTIONS (FAQ)
MAINTENANCE

Highlight & Specifications

Walk-behind Floor Scrubber M50

Key Features

Ultra-quiet Design: Features a unique fan structure and multi-stage noise reduction to minimize noise pollution.

Smart Touch Panel: A sleek, intuitive touch panel ensures easy operation with no specialized training required.

Energy-saving Mode: Equipped with an ECO mode to extend runtime and boost operational efficiency.

Soft Start/Stop: Dual-circuit controller enables smooth starting and stopping, extending motor lifespan.

Magnetic Brush Attachment: Upgraded magnetic brush system allows for quick, effortless attachment and removal.

Aluminum Alloy Squeegee: One-piece molded aluminum alloy squeegee is corrosion-resistant and allows for tool-free removal.

Water Level Sensor: Recovery tank sensor automatically stops the fan when full to prevent overflow damage to the motor.

Brush Pressure System: Adjustable brush pressure facilitates the removal of stubborn stains and enhances cleaning performance.

Parameter

Parameter	M55 Specification	M55A Specification
Max Working Efficiency	3000 sq.m/h	3500 sq.m/h
Max Working Width	850mm	850mm
Max Travel Speed	—	7km/h
Working Time	3-4h	3-4h
Clean Water Tank Capacity	60L	60L
Dirty Water Tank Capacity	70L	70L
Power Source	24V	24V
Drive Type	Brush-assisted	Motor-driven
Net Weight	190kg	200kg
Machine Dimension(L×W×H)	13908001080mm	13908001080mm

Technologies

Integrated Cleaning Systems

Practical cleaning technologies, reliable power systems and user-friendly controls configured for professional cleaning applications.

Modular Function Design

Sweeping, scrubbing, water recovery, dust suppression, high-pressure washing and waste collection — each tuned to the environment and surface.

Stability & Safety

Engineered for cleaning efficiency, operational stability, operator safety and convenient maintenance with accessible service components.

Pre-delivery Testing

Every machine undergoes functional inspection covering cleaning system, water supply, suction, electrics, driving and safety devices.

Custom & OEM/ODM

Optional configurations available for distributors and contractors — tailored to area, surface, waste type, working time and local requirements.

APPLICABLE GROUND

Granite
Terrazzo
Emery Floor / Dry-Shake Hardener Floor
Stone Tile
PVC Flooring
Epoxy Floor
Marble
Ceramic Tile
Concrete Floor
Artificial Stone / Engineered Stone

APPLICATION

Frequently Asked Questions (FAQ)

Check the answers to the most frequently asked questions to learn everything about our machines.

Learn More

Who is Nanbo Environment?

Anhui Nanbo Intelligent Environmental Equipment Co., Ltd. — founded in 2015, headquartered in Wuhu. We are a national High-Tech Enterprise with 80+ patents and ISO 9001 certification, focused on the R&D and manufacturing of floor scrubbers, floor sweepers, high-pressure washers and new-energy sanitation vehicles.
What products do you offer?

Five product series with 30+ models: manual and ride-on floor scrubbers (M series), ride-on and fully-enclosed floor sweepers (C series), electric high-pressure washers (G series), road sweepers (C170–C220) and new-energy refuse collection vehicles (LNB series). Covers factories, municipalities, property management, logistics hubs and airports.
How do I choose the right machine?

Three main factors to consider: cleaning area, floor material and dominant soil type. Hand-push scrubbers are typically used for areas under 3,000 m², while ride-on versions suit 5,000 m² and above. Sweepers handle dry dust and debris; scrubbers handle oil and water spills — many facilities run both for the best result.
What's the difference between a floor scrubber and a sweeper?

Sweepers use dry technology (sweep + suction) to remove dust, chips and loose debris without water. Scrubbers use wet technology (spray + scrub + suction) with water and detergent to remove oil and liquid spills, leaving the floor dry immediately. They serve different purposes and are not substitutes.
How much do your machines cost?

Pricing varies significantly depending on model, configuration, battery type and quantity. As a source manufacturer, we offer competitive factory-direct pricing and can tailor packages to your project. Please contact us for a precise quotation based on your specific needs.
Lead-acid or lithium batteries — which should I choose?

Lead-acid is the economical choice for single-shift (8-hour) operations. Lithium is recommended for double or triple shifts: it charges in 2–3 hours, lasts roughly 2,000 charge cycles and requires no maintenance over its lifetime.

Manutenzione

Massima efficienza, costante nel tempo.

Riduci i costi di manutenzione grazie ai nostri semplici consigli per la corretta gestione delle nostre macchine. Dai valore al tuo investimento e risparmia in spese di gestione, mantenendo sempre al massimo l'efficienza.
